Leica ScanStation Pxx
Remote Control via Leica CS35
v1.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the ScanStation P Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Leica ScanStation P Series

Summary of Contents for Leica ScanStation P Series

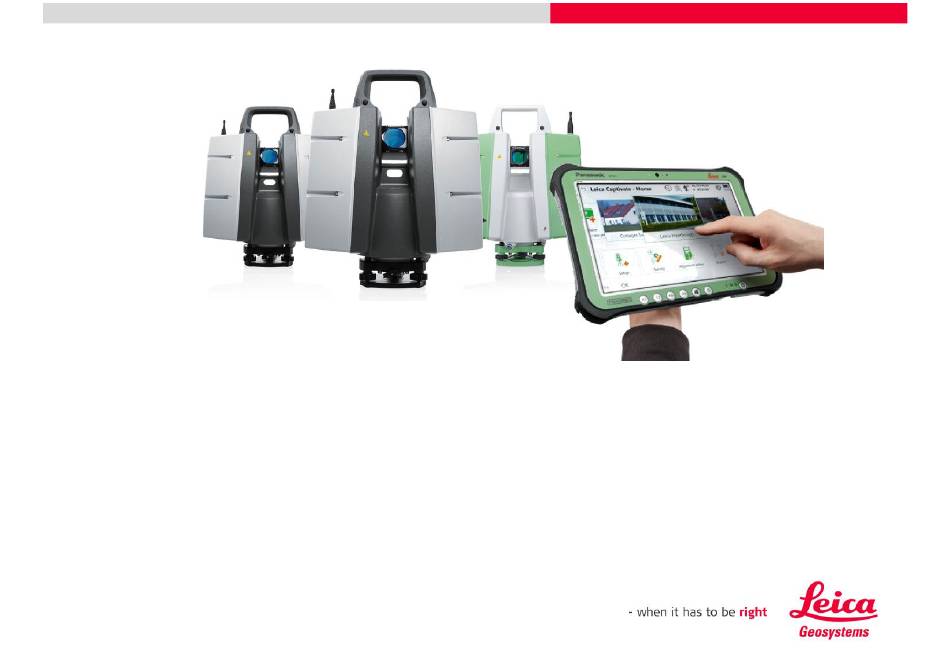

  • Page 1 Leica ScanStation Pxx Remote Control via Leica CS35 v1.0...
  • Page 2 Leica ScanStation Pxx Remote Control via Leica CS35 Content  Prerequisite  WiFi settings on scanner  WiFi settings on tablet  RDP connection on tablet  Pxx Simulator on tablet  Pxx Data Copy Tool on tablet...
  • Page 3 Leica ScanStation Pxx Remote Control via Leica CS35 Prerequisite  Leica ScanStation Pxx with FW 2.xx or higher installed  Leica CS35 tablet computer  No additional external hardware needed...
  • Page 4 Leica ScanStation Pxx Remote Control via Leica CS35 Select WiFi settings on scanner  Start the Leica ScanStation Pxx and wait for the boot process to finish.  Select Status to get to the Status Menu.  In the Status Menu...
  • Page 5 Leica ScanStation Pxx Remote Control via Leica CS35 Select WiFi settings on scanner cont’d  In the Wifi Configuration menu  WiFi Operation = On  WiFi Connection = Access point mode  Press to confirm these settings. Wait for the information...
  • Page 6 Leica ScanStation Pxx Remote Control via Leica CS35 Select WiFi settings on tablet  Press the network icon open the Networks page  In the list of visible WiFi networks select Pxx_185xxxx with 185xxxx being the scanner‘s serial number.
  • Page 7 Leica ScanStation Pxx Remote Control via Leica CS35 Select WiFi settings on tablet cont’d  Connect Pxx_185xxxx  Leave the WiFi page once connection to Pxx_185xxxx been established...
  • Page 8 Leica ScanStation Pxx Remote Control via Leica CS35 Create RDP connection on tablet  In the Apps menu select the Remote Desktop Connection  In the Remote Desktop Connection create a connection with  Computer = PXX-185xxxx  User name = sbc...
  • Page 9 Leica ScanStation Pxx Remote Control via Leica CS35 Create RDP connection on tablet cont’d  Connect via the Remote Desktop Connection app to the scanner  Use the virtual keyboard enter the password...
  • Page 10 Leica ScanStation Pxx Remote Control via Leica CS35 Create RDP connection on tablet cont’d  Enter the password «sbc»  Once connection has been established use the scanner MMI in the Remote Desktop Connection window to control the scanner remotely...
  • Page 11 Leica ScanStation Pxx Remote Control via Leica CS35 Pxx Simulator  Install the free tool Pxx Simulator on the tablet and start it by double-clicking on Start Pxx Simulator  Scan Devices window select a scanner from the list of found...
  • Page 12 Leica ScanStation Pxx Remote Control via Leica CS35 Pxx Simulator cont’d  Once connection has been established use the scanner MMI to control the scanner remotely...
  • Page 13 Leica ScanStation Pxx Remote Control via Leica CS35 Pxx Data Copy Tool  Install the free Pxx Data Copy Tool on the tablet and start it by double-clicking on Pxx DataCopy  Pxx Data Copy window press Scanner button...
  • Page 14 Leica ScanStation Pxx Remote Control via Leica CS35 Pxx Data Copy Tool cont’d  Select a scanner from the list of found instruments and press  Once connection has been established browse in the hierarchy tree to the element to be displayed or copied ...
