Black Horse Off Road B30 Installation Instructions

TEL:1-866-XANATOS

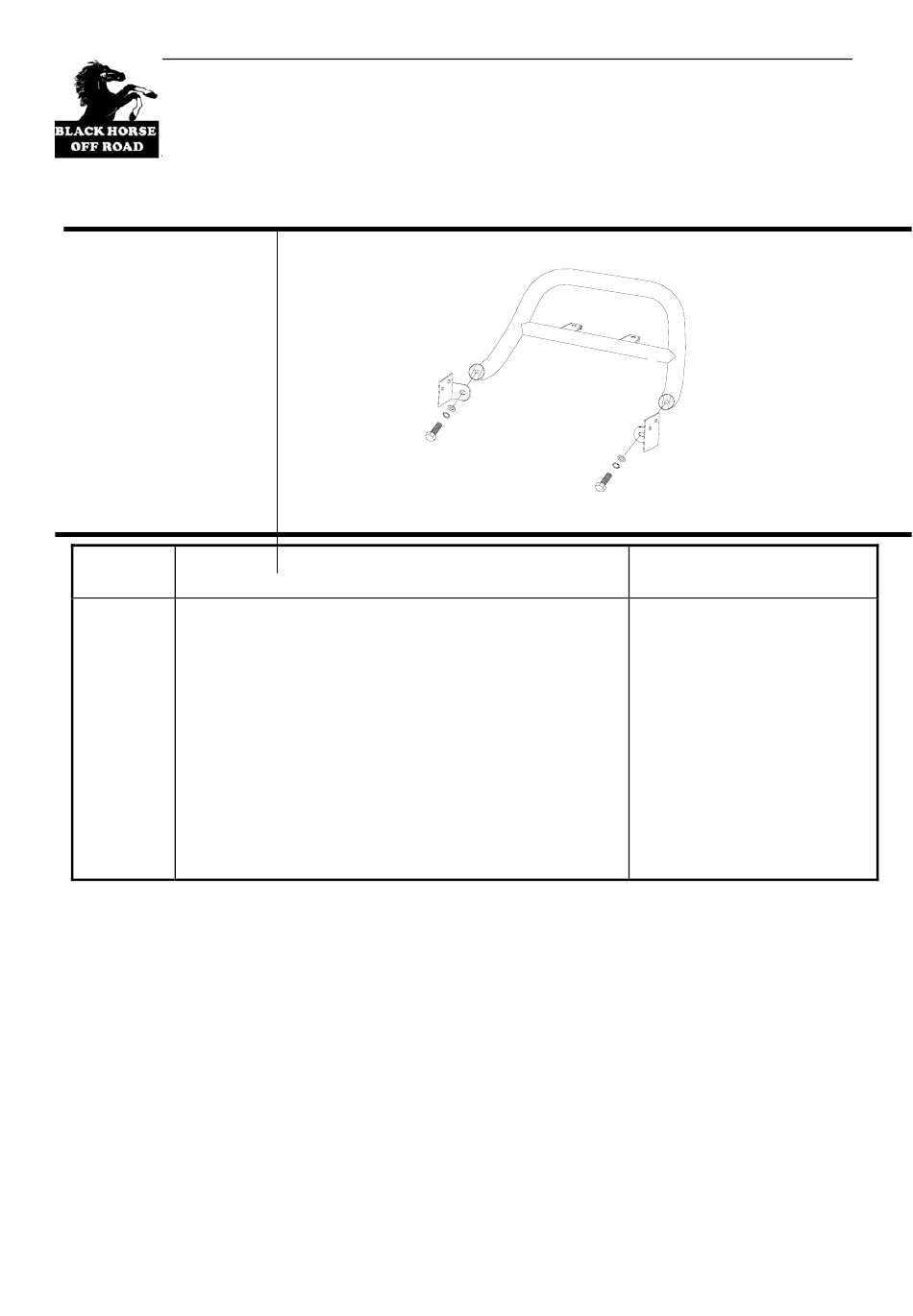

MOUNT KIT
B30
QTY
1 SAFARI BAR ASSEMBLY (PURCHAED SEPARATELY)
1 MOUNT BRACKET-DRIVER SIDE
1 MOUNT BRACKET-PASSENGER SIDE
6 M12×50 HEX BOLT
2 M12 BOLT PLATE
Φ12 SAE FLAT WASHERS
8
4 M12 HEX NUT
Φ8 SPLIT LOCK WASHER
8
Φ 12FLAT WAHSHER
2
NOTE: SOME FASTENERS BE LEFT OVER AFTER
INSTALLATION
REMOVE THE CONTENTS FROM THE BOX AND CHECK FOR ANY DAMAGE. VERIFY ALL
STEP1:
PARTS AGAINST PARTS LIST.
STEP2: READ AND UNDERSTAND INSTRUCTIONS COMPLETELY BEFORE BEGINNING
INSTALLATION.
STEP3: REMOVE 10 MM BOLT FROM EACH SIDE OF THE LOWER AIRDAM (BOLTS ARE LOCATED
TO THE OUTSIDE OF EACH TIE DOWN LOOP).
STEP4: ATTACH DRIVER SIDE BRACKET TO THE DOWN LOOP USING M12 BOLT, Φ12 FLAT WAHSER,
Φ12 LOCK WASHER AND M12 HEX NUT.HAND TIGHTEN. REPEAT FOR OPPOSITE SIDE,
SEE FIGURE 2.
NOTE: BRACKETS ATTACH TO THE INSIDE FACE OF TIE DOWN LOOP.
STEP5: ATTACH SAFARI BAR HOOP TO TOP BTACKETS USING M12 HEX BOLT, Φ12 FLAT WASHER
AND Φ12 LOCK WASHERS,HAND TIGHTEN. SEE FIGURE 1.
STEP6. CENTER AND LEVEL SAFARI BAR. TIGHTEN AND TORQUE FASTENERS TO 65FT.LBS.
INSTALLATION INSTRUCTIONS
APLICATION 2001FORD ESCAE/MAZDA TRIBUTE

PARTS KIT CONTENTS

DESCRIPTION
Page 1 of 2

TOOLS REQUIRED

3/4"SOCKET
3/4" WRENCH
10MM SOCKET
TOROUE WRENCH
PATCHET
