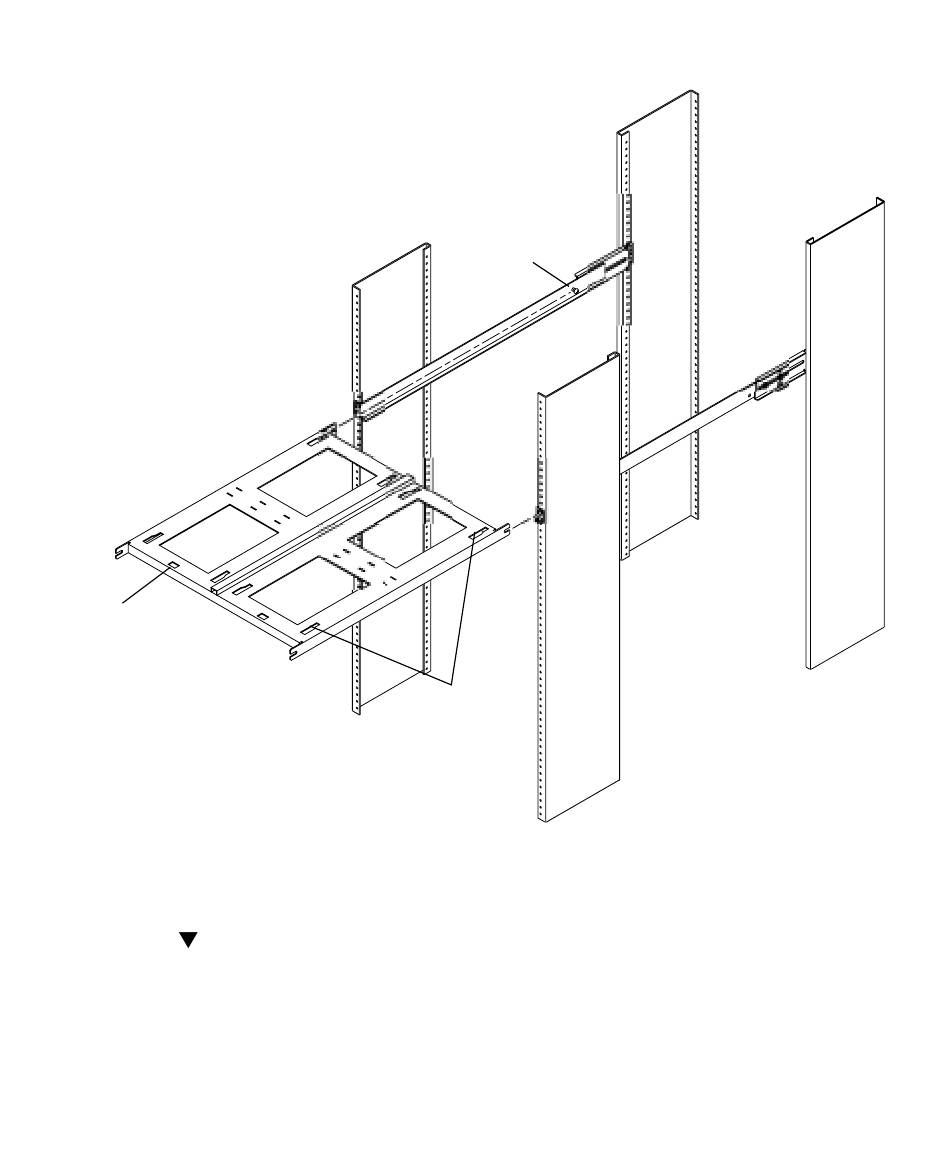

FIGURE 5
To Install the Tray onto the Rails
1. Position the tray so that the notch faces the front of the cabinet.
2. Tighten the stopper screws.
3. Tighten the two screws on each side at the front of the cabinet.
Stopper
screw
Tray
holes
Mounting the Tray into the Cabinet
Sun StorEdge FC 8-Port and 16-Port Switch Rackmounting Guide
5
