LTS LTCMHT2023A Manual

MANUAL Of PROFESSIONAL
1080P HD-TVI
IR DOME CAMERA SERIES
READ THIS MANUAL CAREFULLY BEFORE INSTALLING
AND OPERATING THIS PRODUCT
CAUTIONS:
1. Please don't touch the sensor and lens with your hand.
2. Please don't install the camera in following unstable conditions:
shake, extremely hot,extremely cold etc.
3. The recommended conditions of the installation are temperature
from -10 to 50℃and moisture under 85%.
4. Please kindly contact your sales person in case you have any
question on assembly or installation.
Features & Attachment:
1. Features:
* 1/2.8'' Sensor
* Video Output: HD 1080P@30fps / 25fps
* 2D-NR/ 3D-NR/Smart NR/Sense-up/Digital Zoom Functions etc.
* 3 6 . /2.8-12mm Mega Pixel Lens
* High-quality IR Cut Filter
* Weather Proof :IP66
* Support UTC Function to r
(coaxitron)Protocol
2. Attachment:
* One User Manual
* Tools & Installation Screws
Assembly & Installation
1. Firstly, find a suitable position to install the camera,
dome's cover and then install the bottom bracket(Case) on the
ceiling by screws.
2. Fixed the camera on the bottom bracket.
3. Input the power to the power connector① indicated in the
drawing. Check the input voltage according to the camera label.
4. Connect the HD-TVI video output connector
drawing to the monitor or other video equipment.
③
Connector is an analog video output, used for installation
video adjusting.
5. Adjust the camera level until you can get a good image of the
target by adjusting the camera 3 axis internal bracket. Install and
fix the dome cover, and make sure to put the window on the
shield directly toward to the camera lens.
① ②,③,
Note:Mark , please refer to the upper picture in this manual.
OSD Menu Function Introduction
MAIN MENU:
MAIN MENU
1.LENS
2.EXPOSURE
3.BACKLIGHT
4.WHITE BAL
5.DAY&NIGHT
6.NR
7.SPECIAL
8.ADJUST
9.RESET
10.EXIT

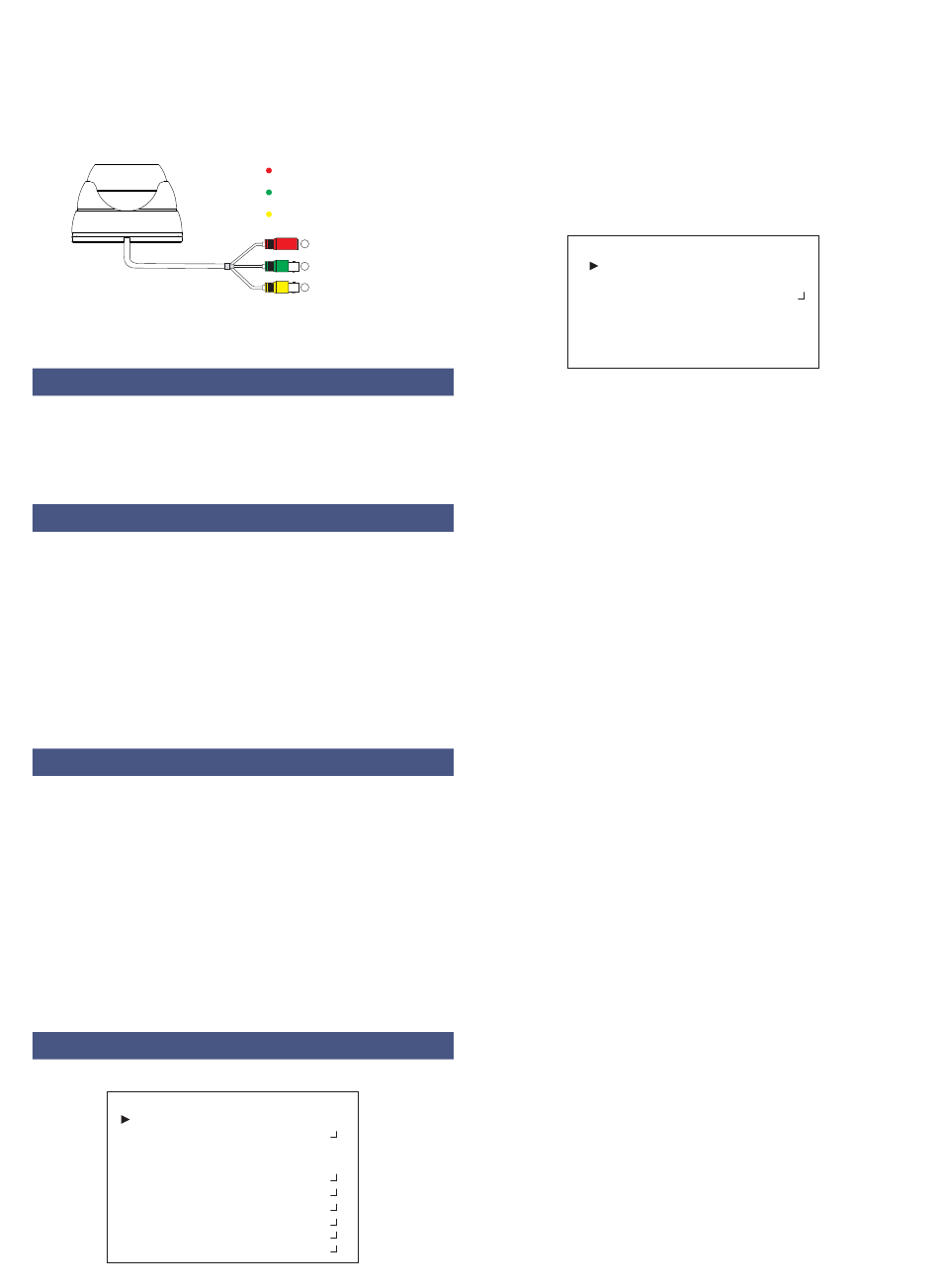

(Red)POWER INPUT
(Green)HD-TVI VIDEO OUTPUT
(Yellow)BNC ANALOG VIDEO OUTPUT
1 Red
2 Green
3 Yellow
emote control OSD menu by Default
remove the
②
indicated in the
MANUAL
OFF
ATW
AUTO
MENU ADJUSTMENT:
Press Menu Button to enter main menu, and then main menu options will
display on the screen. Use the UP/DOWN Button to move cursor to
different menu options, and use the LEFT or RIGHT Button to set or
adjust the menu parameter. Please press Menu Button to EXIT after
Assembly & Installation
finishing adjustment.
SUBMENU OPTION:
Some menu options have its submenus ,if the right side of menu option
┛
display ,please press Menu Button to enter submenu for parameter
settings.
SUB-MENU :
SHUTTER
AGC
-
SENS UP
BRIGHTNESS
D-WDR
DEFOG
RETURN
MAIN MENU OPTIONS FUNCTIONS
1. LENS OPTION:
Select the lens type, MANUAL / DC / VIDEO/P-Iris Lens selectable.
2. EXPOSURE OPTION:
1) S HUTTER: Selecting shutter mode: AUTO and FLK and it is also
adjustable from 1/25(1/30)-1/50000. It is adjustable from X2-X30 under
Sense-up condition.
2) AGC: Auto Gain Control, It is adjustable from 0-15.
3) SENSE-UP: AUTO/OFF. It is only available under the AUTO shutter
mode. It is adjustable from X2-X30.
4) BRIGHTNESS: Output brightness settings. Default setting is 32.
5) D-WDR: Digital WDR mode settings, ON/OFF selectable.
6) DEFOG: Setting fog penetrating function, ON/OFF selectable.
• POS/SIZE: Adjust the defog area position and size.
• GRADATION: Gradation settings. HIGH/MIDDLE/LOW/OFF
selectable
• DEFAULT: reset HSBLC option to default settings.
• RETURN: return to the upper menu.
7) RETURN: return to upper menu.
3.BACKLIGHT:
Backlight compensation: WDR/Backlight Compensation(BLC)/Super
Backlight Compensation(HSBLC)/OFF selectable.
SUBMENU OF BLC:
●
GAIN: backlight gain settings, HIGH/MIDDLE/LOW selectable.
AREA: adjust BLC area and set the compensation area size after
entering AREA menu.
DEFAULT: reset BLC option to default settings.
RETURN: Return to the upper menu.
SUBMENU OF HSBLC:
●
SELECT: select the backlight compensation area, 4 areas selectable.
DISPLAY: setting to ON/OFF the selected area.
LEVEL: the sensitivity of compensation area settings.
MODE: HSBLC mode settings. the super backlight compensation
available only at night or all day.
BLACK MASK: configure ON/OFF of Black Masks.
( DEFAULT: reset HSBLC option to default settings.
RETURN: return to upper menu.
4. WHITE BALANCE:
Auto Tracking White Balance/Auto White Balance/Indoor Mode/Outdoor
Mode/Manual White Balance/AWC-SET selectable.
(White balance function is unavailable if the setting of DAY&NIGHT
function is black-white mode.)
SUBMENU OF MANUAL WHITE BALANCE:
●
It is adjustable from 0-100 in the blue or red gain.
5. DAY&NIGHT:
Setting day and night mode, AUTO/COLOR/ B/W /EXT selectable.
SUBMENU OF AUTO DAY&NIGHT FUNCTION:
●
DELAY: adjust delay time of switching, it is selectable from 0-60
seconds.
D-N: adjust the sensitivity for Day switching to Night, it is selectable
from 0-100.
N-D: adjust the sensitivity for Night switching to Day, it is selectable
from 0-100.
RETURN: return to upper menu.
SUBMENU OF B/W:
●
Burst: ON/OFF are selectable to set burst when DAY switching to
NIGHT.
EXPOSURE
AUTO
.........14
AUTO
.........32
OFF
OFF
RET
