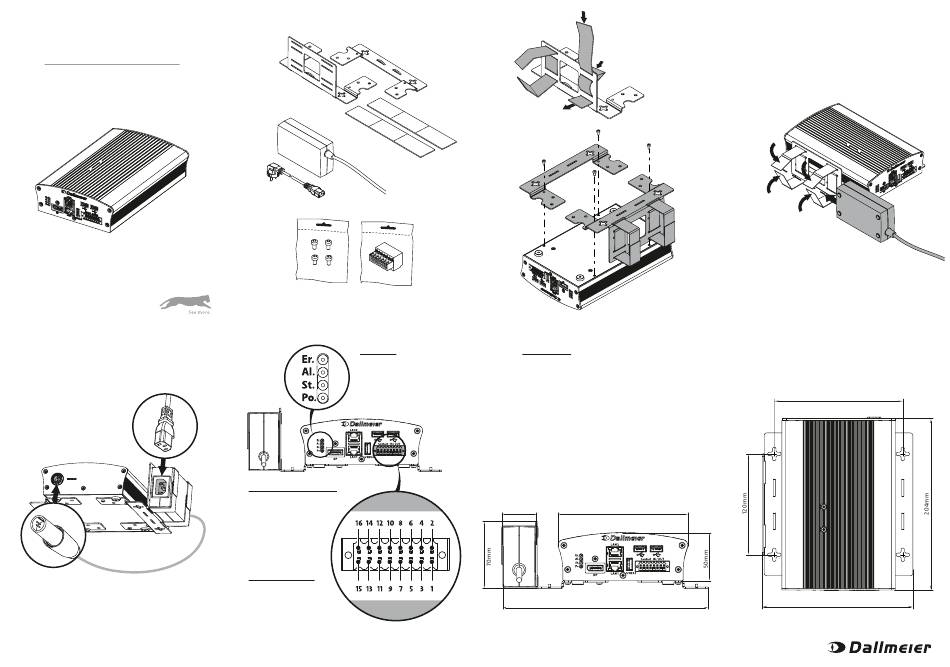

dallmeier SRS Edge Quick Start Manual

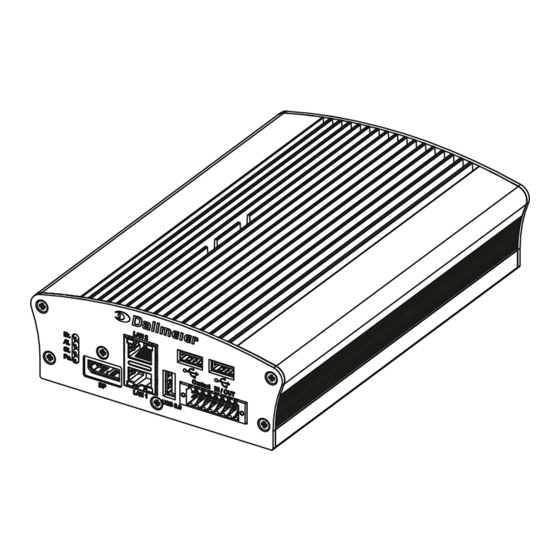

SRS Edge

Commissioning

❹
008138 | REV. 1.0.0 | 2020-09-28
❶

Status LED

❺
LED Status
Er. Error (Red)
Al. Alarm (Orange)
St. Record (Green)
Po. Power (Blue)
Control inputs (Contact IN)
PIN Function
IN
2/4 +5VDC isolated (SELV)
6 Contact 1
8 Conatct 2
10 Contact 3
12 Contact 4
14/16 GND isolated
Relay (Contact OUT)
PIN Function
1/3 Relay 1
5/7 Relay 2
OUT
9/11 Relay 3
13/15 Relay 4
Copyright © 2020 Dallmeier electronic GmbH & Co.KG • Bahnhofstr. 16, 93047 Regensburg, Germany • tel +49 941 8700 0 • fax +49 941 8700 180 • info@dallmeier.com • www.dallmeier.com
❷

SRS Edge Data

❻

Electrical Data

Voltage supply 12 V DC ±5%
Power consumption Max. 15 W
Thermal output Max. 51 BTU/h

Mechanical Data

Dimensions Approx. 135 × 50 × 205 mm
(W × H × D)
Weight Approx. 2 kg (4.4 lb)
Color Black (anodized)

Ambient Data

Temperature -30°C up to +65°C (-22°F − 149°F)
Humidity 5 – 70% RH, non-condensing
Atmospheric load Dust-free
40mm 135mm
219mm
❸
❼
153mm
180mm
