Keithley Instruments
28775 Aurora Road
Cleveland, Ohio 44139
1-800-935-5595
tek.com/keithley

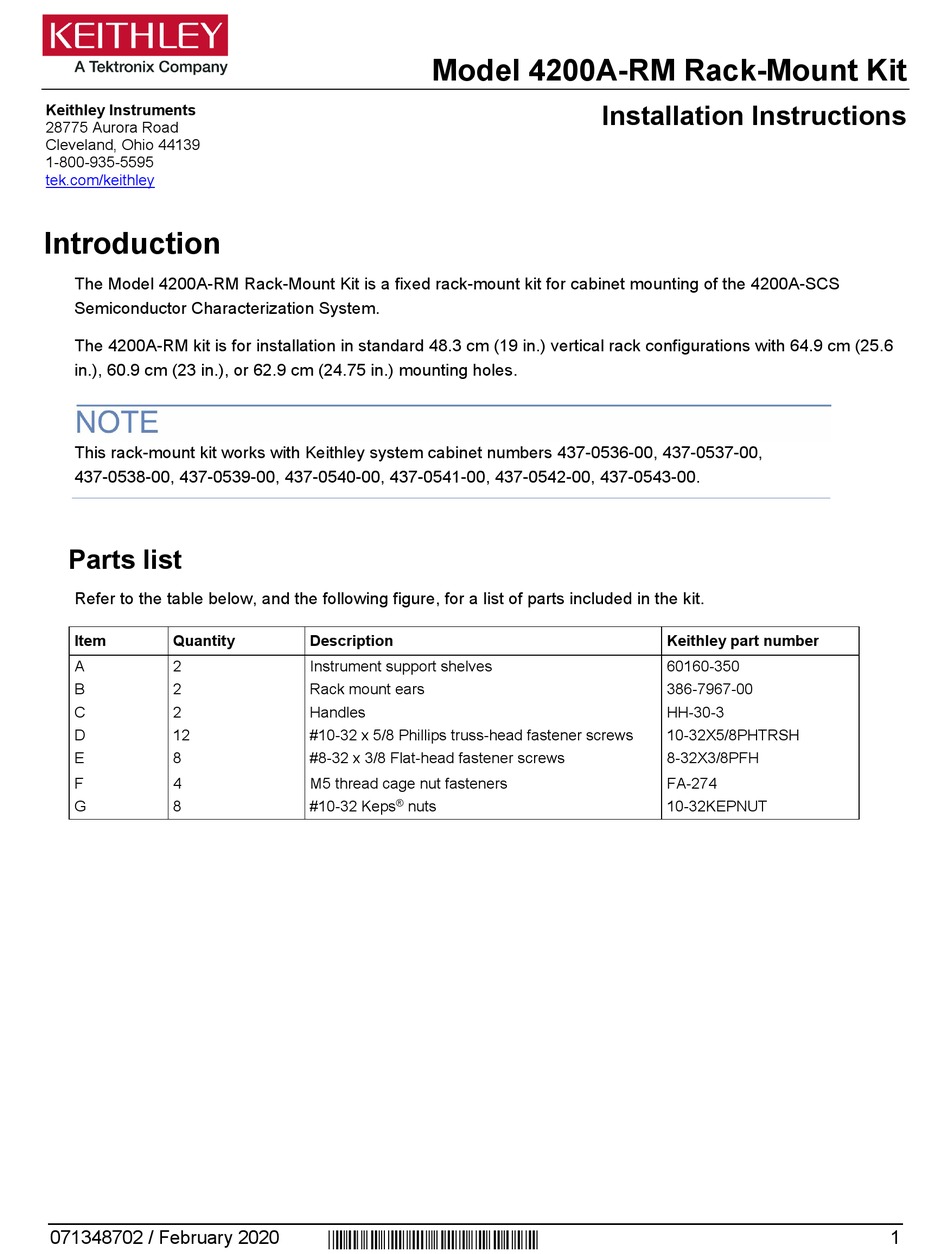

Introduction

The Model 4200A-RM Rack-Mount Kit is a fixed rack-mount kit for cabinet mounting of the 4200A-SCS
Semiconductor Characterization System.
The 4200A-RM kit is for installation in standard 48.3 cm (19 in.) vertical rack configurations with 64.9 cm (25.6
in.), 60.9 cm (23 in.), or 62.9 cm (24.75 in.) mounting holes.
This rack-mount kit works with Keithley system cabinet numbers 437-0536-00, 437-0537-00,
437-0538-00, 437-0539-00, 437-0540-00, 437-0541-00, 437-0542-00, 437-0543-00.

Parts list

Refer to the table below, and the following figure, for a list of parts included in the kit.
Item
Quantity
A
2
B
2
C
2
D
12
E
8
F
4
G
8
071348702 / February 2020
Model 4200A-RM Rack-Mount Kit
Description
Instrument support shelves
Rack mount ears
Handles
#10-32 x 5/8 Phillips truss-head fastener screws
#8-32 x 3/8 Flat-head fastener screws
M5 thread cage nut fasteners
#10-32 Keps
®
nuts
*P071348702*
Installation Instructions
Keithley part number
60160-350
386-7967-00
HH-30-3
10-32X5/8PHTRSH
8-32X3/8PFH
FA-274
10-32KEPNUT
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4200A-RM and is the answer not in the manual?

Questions and answers

Summary of Contents for Keithley 4200A-RM

  • Page 1 The Model 4200A-RM Rack-Mount Kit is a fixed rack-mount kit for cabinet mounting of the 4200A-SCS Semiconductor Characterization System. The 4200A-RM kit is for installation in standard 48.3 cm (19 in.) vertical rack configurations with 64.9 cm (25.6 in.), 60.9 cm (23 in.), or 62.9 cm (24.75 in.) mounting holes.
  • Page 2 Model 4200A-RM Rack-Mount Kit Installation Instructions 4200A-SCS preparation To prepare the 4200A-SCS for mounting: 1. With a second person assisting, tilt the instrument on its side, as shown in the following figure. Figure 1: 4200A SCS propped up 2. Remove the feet. Remove rubber plug from bottom of the foot. You may need to insert a small screwdriver along the side and pry out the plug as shown in the following figure.
  • Page 3 Model 4200A-RM Rack-Mount Kit Installation Instructions Cabinet and instrument preparation To prepare the cabinet and instrument: The 4200A-SCS Semiconductor Characterization System weighs more than 27 kilograms (60 pounds) and requires a two-person lift. Do not lift the 4200A-SCS alone and do not lift the instrument using the front bezel.
  • Page 4 Model 4200A-RM Rack-Mount Kit Installation Instructions 5. Attach the handles (item C) to the rack-mount ears (item B) with screws (item E). Attach the rack-mount ears (item B) to the 4200A-SCS chassis using the supplied screws (item E). 6. Attach the instrument support shelves (item A) to the cabinet rack using the supplied screws (item D).
  • Page 5 Keithley products are designed for use with electrical signals that are measurement, control, and data I/O connections, with low transient overvoltages, and must not be directly connected to mains voltage or to voltage sources with high transient overvoltages.
  • Page 6 (note that selected parts should be purchased only through Keithley to maintain accuracy and functionality of the product). If you are unsure about the applicability of a replacement component, call a Keithley office for information.
