How to connect to Printer via Physical Ethernet LAN and its setup?
How to connect to mC-Print3 Receipt Printer via Physical
Contact information:
Index
Printer setup
Link with DolphinPOS APP
Static IP to Printer
mC-Print Utility, Hardware debug tool
References
DolphinPOS User Guide
Ethernet LAN and its setup?

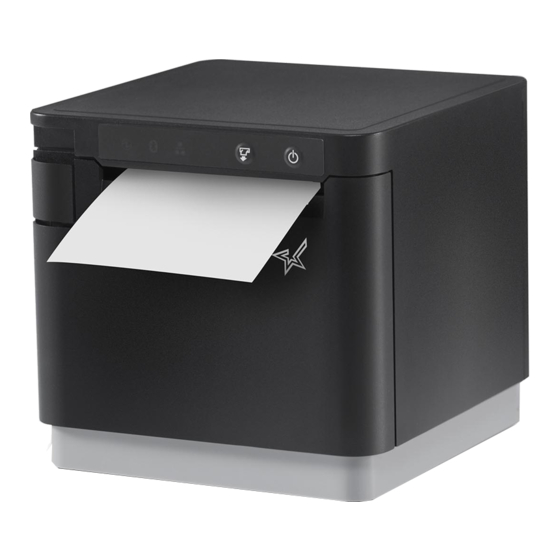

Star mC-Print3
Model MCP31LB
May-19-2020, Version V1.0
support@dolphinpos.com
Page#
2-3
4
5-8
9-12
12
Page 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Star mC-Print3 MCP31LB
Summary of Contents for Star mC-Print3 MCP31LB
- Page 1 How to connect to Printer via Physical Ethernet LAN and its setup? How to connect to mC-Print3 Receipt Printer via Physical Ethernet LAN and its setup? Star mC-Print3 Model MCP31LB May-19-2020, Version V1.0 Contact information: support@dolphinpos.com Index Page# Printer setup...
-
Page 2: Printer Setup
How to connect to Printer via Physical Ethernet LAN and its setup? Printer Setup Step1: Connect the Ethernet cable to LAN port of MC print3 Step2: Install the “StarPRNT SDK” from App Store and Open it. Step3: Find its IP address. DolphinPOS User Guide Page 2... - Page 3 How to connect to Printer via Physical Ethernet LAN and its setup? a) Click on “Unselected State” b) Select “LAN” DolphinPOS User Guide Page 3...
- Page 4 Put the IP address in “Printer IP”, which we got from Step3 example: 192.168.x.xxx c) Is star Barcode Reader [Peripheral needs to be connected to 0.5A Port] d) Is Star display unit ON [Peripheral needs to be connected to 0.5A Port] DolphinPOS User Guide Page 4...
- Page 5 How to connect to Printer via Physical Ethernet LAN and its setup? Step5: Close the Dolphin POS App and open it. You are ready now!! How to make the mC-Print3 IP address to Static from DHCP? Step1: Open the setting screen (Web Configuration) of the printer via the Web browser.
- Page 6 How to connect to Printer via Physical Ethernet LAN and its setup? Login name: root Password: Log in with the changed password or default password is “public” Step3: Specify static IP address From the menu button in the upper left, open “IP Parameters” select “Static”...
- Page 7 How to connect to Printer via Physical Ethernet LAN and its setup? Step4: Save settings to printer From the menu button in the upper left, tap ”Save” , select Save - Configuration Printing - Restart device , and tap “Execute” .
- Page 8 How to connect to Printer via Physical Ethernet LAN and its setup? DolphinPOS User Guide Page 8...
- Page 9 How to connect to Printer via Physical Ethernet LAN and its setup? Trouble shooting mC-Print3 Hardware and its setup issues Step1: Install “mC-Print Utility” tool from the Apple Apps store. Step2: Open the utility tool and it should list below options DolphinPOS User Guide Page 9...
- Page 10 How to connect to Printer via Physical Ethernet LAN and its setup? a) Start Guide(Initial Settings): b) Printer Operation check: DolphinPOS User Guide Page 10...
- Page 11 How to connect to Printer via Physical Ethernet LAN and its setup? c) Printer settings: It’s important to “update the firmware” to avoid the hardware and peripheral (barcode scanner, display, cash drawer) communication issues. DolphinPOS User Guide Page 11...
- Page 12 How to connect to Printer via Physical Ethernet LAN and its setup? d) FAQ and others: References 1) https://www.star-m.jp/products/s_print/mcprint3/manual/en/settings/usingApp.htm 2) https://www.star-m.jp/products/s_print/mcprint3/manual/en/settings/settingsLAN.htm DolphinPOS User Guide Page 12...
