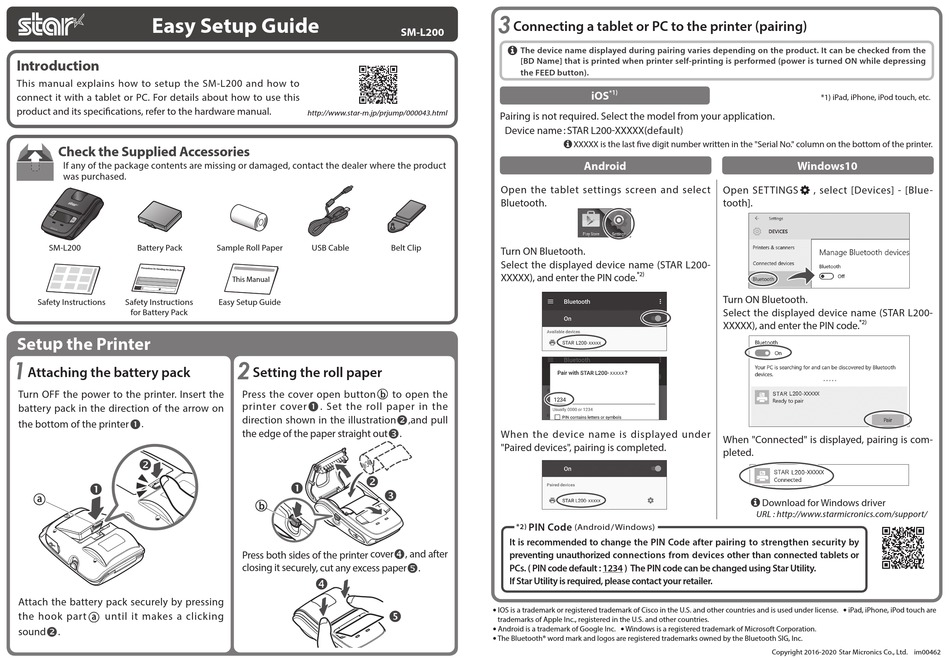

Star SM-L200 Easy Setup Manual

Easy Setup Guide
Introduction
This manual explains how to setup the SM-L200 and how to
connect it with a tablet or PC. For details about how to use this
product and its specifications, refer to the hardware manual.
Check the Supplied Accessories
If any of the package contents are missing or damaged, contact the dealer where the product
was purchased.

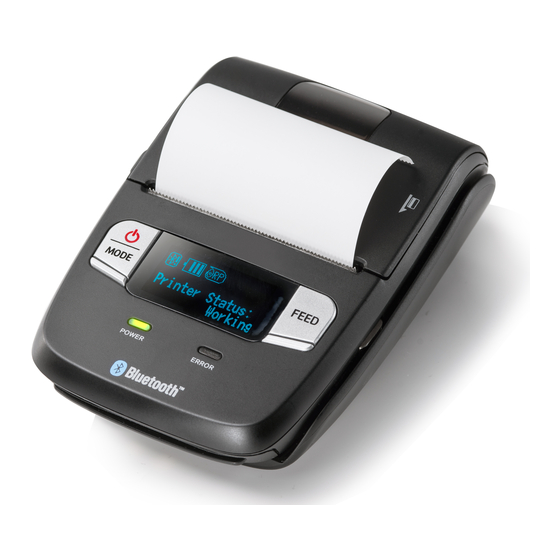

SM-L200 Battery Pack
Safety Instructions Safety Instructions
for Battery Pack
Setu p the Printer
1
Attaching the battery pack
Turn OFF the power to the printer. Insert the
battery pack in the direction of the arrow on

the bottom of the printer .


Attach the battery pack securely by pressing
the hook part until it makes a clicking
sound  .
http://www.star-m.jp/prjump/000043.html
Sample Roll Paper USB Cable Belt Clip
This Manual
Easy Setup Guide
2
Setting the roll paper
Press the cover open button to open the

printer cover . Set the roll paper in the
direction shown in the illustration

the edge of the paper straight out




Press both sides of the printer cover
closing it sec urely, cut any excess paper


3
Connecting a tablet or PC to the printer (pairing)
SM-L200
 The device name displayed during pairing varies depending on the product. It can be checked from the
[BD Name] that is printed when printer self-printing is performed (power is turned ON while depressing
the FEED button).
Pairing is not required. Select the model from your application.
Device name : STAR L200 -
XXXXX is the last five digit number written in the "Serial No. " column on the bottom of the printer.

Open the tablet settings screen and select
Bluetooth.
Turn ON Bluetooth.
Select the displayed device name (STAR L200-
XXXXX), and enter the PIN code.
 ,and pull
.
When the device name is displayed under
"Paired devices", pairing is completed.
PIN Code
*2) (Android / Windows)
It is recommended to change the PIN Code after pairing to strengthen security by
, and after
preventing unauthorized connections from devices other than connected tablets or

. PCs. ( PIN code default : 1234 ) The PIN code can be changed using Star Utility.
If Star Utility is required, please contact your retailer.
IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.

trademarks of Apple Inc., registered in the U.S. and other countries.
Android is a trademark of Google Inc.

The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc.

iOS *1)
XXXXX(default)
Android
Open SETTINGS  , select [Devices] - [Blue-
tooth].
*2)
Turn ON Bluetooth.
Select the displayed device name (STAR L200-
XXXXX), and enter the PIN code.
When "Connected" is displayed, pairing is com-
pleted.
 Download for Windows driver
URL : http://www.starmicronics.com/support/
Windows is a registered trademark of Microsoft Corporation.

*1) iPad, iPhone, iPod touch, etc.
Windows10
*2)
iPad, iPhone, iPod touch are

Copyright 2016-2020 Star Micronics Co., Ltd. im00462
