Gree FP-51XD/A-K Service Manual

Gree FP-51XD/A-K Service Manual

Commercial, cassette typ fan coil unit
Hide thumbs Also See for FP-51XD/A-K:
Table of Contents

Advertisement

Quick Links

CASSETTE TYP FAN COIL UNIT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FP-51XD/A-K and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gree FP-51XD/A-K

Summary of Contents for Gree FP-51XD/A-K

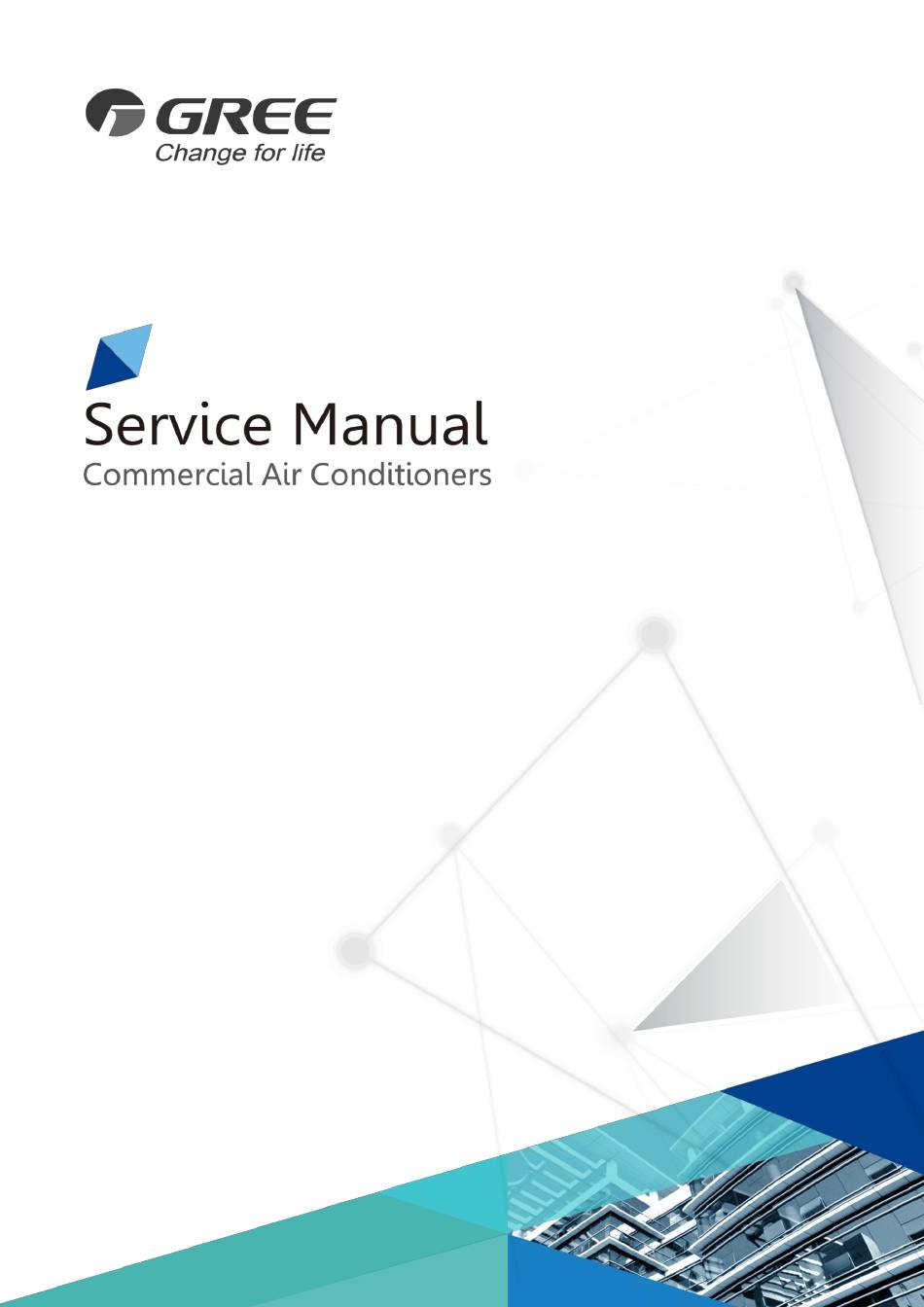

  • Page 1 CASSETTE TYP FAN COIL UNIT...

  • Page 2: Table Of Contents

    Contens ⅠPRODUCT ....................1 1. MODELS LIST ......................... 2 2. NOMENCLATURE OF THE UNIT ................... 3 3. FUNCTION ........................4 4. PRODUCT DATA ......................4 ⅡCONTROL ....................15 1. WIRELESS REMOTE CONTROLLER ................16 1.1 YB1FA(X-FAN) ........................... 16 1.1.1 Operation of wireless remote control .................... 18 1.1.2 Changing batteries and notices.

  • Page 3: Ⅰproduct

    PRODUCT ⅠPRODUCT...

  • Page 4: Models List

    PRODUCT 1. MODELS LIST Cooling/Heating Air flow Power Supply Volume Model Name Product Code Capacity Remarks (V, Ph, Hz) FP-51XD/A-K EM520N1170 2750/3400 220-240V~ 50Hz FP-68XD/A-K EM520N1160 3300/3800 EM520N0930 4150/5600 220-240V~ 50Hz FP-85XD/B-T EM520N0940 4160/7800 208-230V~ 60Hz EM520N0910 500/6500 1020 220-240V~ 50Hz...

  • Page 5: Nomenclature Of The Unit

    PRODUCT Cooling/Heating Air flow Power Supply Volume Model Name Product Code Capacity Remarks (V, Ph, Hz) FP-125XD/B-T(E) EM520N1320 6000/6900 1090 220-240V~ 50Hz FP-140XD/B-T(E) EM520N1330 7400/8400 1400 220-240V~ 50Hz FP-160XD/B-T(E) EM520N1340 8400/9000 1500 220-240V~ 50Hz FP-180XD/B-T(E) EM520N1350 9500/10500 1640 220-240V~ 50Hz FP-200XD/D-K(E) EM520N1360 11100/11700...

  • Page 6: Function

    PRODUCT 3. FUNCTION (1) Novel pattern: the exposed skin plates of unit looks so elegant and luxurious that they can be taken as the indoor decorations. (2) Compact design: A large number of non-metallic materials have been used, so that the body of the unit is quite light-weight and thin, which makes the unit looks sensuous.
  • Page 7 PRODUCT Aluminum Aluminum Aluminum Aluminum Type fin-copper tube fin-copper tube fin-copper tube fin-copper tube Coil ≤1.6MPa ≤1.6MPa ≤1.6MPa ≤1.6MPa Operating pressure Type FN35D-2 FN35D-2 FN35D-2 FN35D-2 Motor Capacitor µF Water inlet &outlet inch G3/4 G3/4 G3/4 G3/4 Connectio Condensing water n pipe size drain Outline...
  • Page 8 PRODUCT Heating pressure drop Sound pressure level dB(A) Type Aluminum Aluminum Aluminum Aluminum Coil ≤1.6MPa ≤1.6MPa ≤1.6MPa ≤1.6MPa fin-copper tube fin-copper tube fin-copper tube fin-copper tube Operating pressure Type FN35B-1 FN35B-1 FN35C FN35C Motor Capacitor µF 2.00 2.00 4.00 4.00 Water inlet &outlet inch G3/4...
  • Page 9 PRODUCT system Heating water flow 0.43 0.23 0.48 0.27 volume Cooling pressure drop Heating pressure drop Sound pressure level dB(A) Aluminum Aluminum Aluminum Aluminum Type fin-copper tube fin-copper tube fin-copper tube fin-copper tube Coil ≤1.6MPa ≤1.6MPa ≤1.6MPa ≤1.6MPa Operating pressure Type FN35C FN35C...
  • Page 10 PRODUCT Model FP-200XD/B-T FP-200XD/B-T Code EM520N0820 EM520N0810 Power Type V-Ph-Hz 208-230V~ 60Hz 220-240V~ 50Hz system Input 1176 1176 High 2000 2000 Air flow 1000 Medium volume 1550 1700 1250 1450 Cooling 13000 13000 Capacity Heating 19000 14600 Electric heater rated power Cooling water flow volume 0.62 0.62...
  • Page 11 PRODUCT Model FP-200XD/D-K Code EM520N1210 Type V-Ph-Hz 220-240V~ 50Hz Power system Input 1177 High 2000 1000 Air flow volume Medium 1700 1450 Cooling 12000 Capacity Heating 14200 Electric heater rated power Cooling water flow volume 0.62 Heating water flow volume Water system Cooling pressure drop Heating pressure drop...
  • Page 12 PRODUCT Model FP-68XDT/B-K FP-85XDT/B-K FP-125XDT/B-K FP-180XDT/B-K Code EM520N0990 EM520N0960 EM520N0970 EM520N0980 Type V-Ph-Hz 220-240V~ 50Hz 220-240V~ 50Hz 220-240V~ 50Hz 220-240V~ 50Hz Power system Input 1059 High 1250 1800 Air flow Medium volume 1108 1525 1014 1421 Cooling 3500 4100 6000 8000 Capacity Heating...
  • Page 13 PRODUCT 2 pipes FP-85XD/B-T （ E ） FP-102XD/B-T （ E ） Model FP-51XD/A-K FP-68XD/A-K Type V-Ph-Hz 220-240V~ 50Hz 220-240V~ 50Hz 220-240V~ 50Hz 220-240V~ 50Hz Power system Input High Air flow Medium volume Cooling 2750 3400 4500 5000 Capacity Heating 3400...
  • Page 14 PRODUCT FP-125XD/B FP-140XD/B FP-160XD/B FP-180XD/B FP-200XD/ Model -T（E） -T（E） -T（E） -T（E） D-K（E） 220-240V~ 220-240V~ 220-240V~ 220-240V~ 208-230V~ Power Type V-Ph-Hz 50Hz 50Hz 50Hz 50Hz 60Hz system Input 1000 High 1090 1400 1500 1640 1700 Air flow Medium volume 1160 1200 1360 1430 1000...
  • Page 15 PRODUCT Body Panel TB03 Gross 20'GP (with panel TB03) weight 40'GP (with panel TB03) 40'HQ (with panel TB03) 4 pipes FP-68XDT/B-K FP-85XDT/B-K FP-125XDT/B-K FP-180XDT/B-K Model （ E ） （ E ） （ E ） （ E ） Type V-Ph-Hz 220-240V~ 50Hz 220-240V~ 50Hz 220-240V~ 50Hz 220-240V~ 50Hz...
  • Page 16 PRODUCT Body 25.0 25.0 27.0 32.0 Net weight Panel TB03 Body 33.0 33.0 34.0 41.0 Gross weight Panel TB03 20'GP (with panel TB03) Loading quantity 40'GP (with panel TB03) 40'HQ (with panel TB03) Testing condition: For 60Hz : The FCU designed for installation indoor. The environmental temperature is from 5° C to 43° C, water working temperature is from 7°...

  • Page 17: Ⅱcontrol

    CONTROL ⅡCONTROL...

  • Page 18: Wireless Remote Controller

    CONTROL 1. WIRELESS REMOTE CONTROLLER 1.1 YB1FA(X-FAN) Note: (a) Be sure that there are no obstructions between receiver and remote control; Donot drop or throw the remote control; Don't let any liquid drop into the remote control or leave the remote control under the sunlight or place where is very hot.
  • Page 19 CONTROL Note: Under the Dry mode, the fan speed isn't adjustable, low fan speed is default. (5) CLOCK button Press Clock button to set the time of clock. When blinks and displays, you can set the time by pressing + or - button. If no button is pressed within 10 seconds the remote will revert back to the normal display.

  • Page 20: Operation Of Wireless Remote Control

    CONTROL This is a universal wireless remote controller; however, the unit covered in this manual is only of the simplified SWING function. As a result, when the wireless remote controller is energized initially with the unit under the OFF status, this simplified function should be set by pressing the + button and the SWING button simultaneously, with the symbol blinking twice.

  • Page 21: Changing Batteries And Notices

    CONTROL 1.1.2 Changing batteries and notices. Slightly to press the place with , along the arrowhead direction to push the back cover of wireless remote control. (As show in figure) Take out the old batteries. (As show in figure.) Insert two new AAA1.5V dry batteries, and pay attention to the polarity. (As show in figure) Attach the back cover of wireless remote control.

  • Page 22: Wired Remote Controller

    CONTROL 2. WIRED REMOTE CONTROLLER 2.1 Introduction to Z4E351B (optional) 2.1.1 Symbols on the LCD Introduction to the Symbols on the LCD. Symbol Function Description It indicates the swing function. It indicates the function of air exchange. (It is unavailable for this wired controller.) It indicates the sleeping status.
  • Page 23 CONTROL It indicates the “ Dry ” mode. It indicates the “ Fan ” mode. It indicates the “ Heat ” mode. It indicates the defrosting mode. (It is unavailable for this wired controller.) It indicates the gate control status. It indicates the locking status.

  • Page 24: Introduction To The Functions Of The Press Keys

    CONTROL 2.1.2 Introduction to the Functions of the Press Keys Introduction to the Functions of the Press Keys. Press Bottoms Function Description Enter/Cancel It is used to select the desired function or cancel the selected function. ① It is used to adjust the running temperature of the indoor unit among16~30 ℃ . ▲...
  • Page 25 CONTROL Function +Timer Under the “Off ” status of the unit, press “ Function ” and “ Timer ” simultaneously for five seconds to call out the debugging menu, after that press “ Mode ” to select the (Ambient 5+ 7 desired submenu and press “▲”/“▼”...

  • Page 26: Ⅲ Unit Installation

    UNIT INSTALLATION Ⅲ UNIT INSTALLATION...

  • Page 27: Selection The Mounting Position

    UNIT INSTALLATION 1. SELECTION THE MOUNTING POSITION Especially, the installation place is very important for the fan coil unit because it is very difficult to move from placc aftr the first installation. Decide the mounting position together with the customer as follows: The discharge direction can be selected as shown below.

  • Page 28: Drainage Pipe

    UNIT INSTALLATION Be suitable for: P-85XD/B-T; FP-102XD/B-T; FP-125XD/B-T; FP-140XD/B-T; FP-160XD/B-T; FP-180XD/B-T; FP-200XD/B-T; FP-85XD/B-T; FP-102XD/B-T; FP-125XD/B-T; FP-140XD/B-T; FP-160XD/B-T; FP-180XD/B-T; FP-200XD/B-T; FP-68XDT/B-K; FP-85XDT/B-K; FP-125XDT/B-K; FP-180XDT/B-K; 2. DRAINAGE PIPE The diameter of the drain pipe should be greater than of equal to the diameter of the connecting pipe [vinyl tube, pipe size: Outer diameter 25mm (outer dimension)].

  • Page 29: Precautions For Drainage Raising Pipe

    UNIT INSTALLATION 3. PRECAUTIONS FOR DRAINAGE RAISING PIPE The install height of the drain raising pipe should less than 280mm. The drain raising pipe should form a upright angle with the unit, and distance to unit should not beyond 300mm. 3.1 Instruction (1) The slant gradient of the attached drain hose should be within 75mm so that the drain hole doesn’t has to endure the unnecessary outside force.
  • Page 30 UNIT INSTALLATION (4) Both the tube joint and the motorized valve are G3/4 threaded. Prior to the connection, it is recommended to wrap the tacky tape on the thread for two or three cycles for better sealing effects . (5) After the tube joint, motorized valve, water inlet tube, water outlet tube are connected reliably, start the water pump of the outdoor unit to check if they leak or not.

  • Page 31: Electric Wiring

    UNIT INSTALLATION Warning: Before obtaining access to terminals, all supply circuits must be disconnected. 4. ELECTRIC WIRING (1) All field supplied parts and materials must conform to local laws and regulations. (2) For electric wiring, refer to WIRING DIAGRAM attached to the unit body. (3) All wiring must be performed by a skilled technician.
  • Page 32 UNIT INSTALLATION Precautions: Be sure to connect the unit at right poles. (2) For 4 pipes The "WIRING DIAGRAM" in the manual is reference. The correct wiring should agree with the "WIRING DIAGRAM "on controller box of the unit.  Remove the control box lid (1). Pull the wires inside through rubber bush I and wiring according to the “...

  • Page 33: Installation Of Panel

    UNIT INSTALLATION 5. INSTALLATION OF PANEL Set the panel to the unit body by matching the position of the swing flap motor of the decoration panel to the piping position of the indoor unit as shown as below. Install the decoration panel. (1) Hang the latch, which is located on the opposite side of the swing flap motor on the panel, temporarily to the hook of the unit.

  • Page 34: Precautions

    UNIT INSTALLATION 5.1 Precautions Improper screwing of the screws may cause the troubles. If gap is still left between the ceiling and the panel after screwing the screws, readjust the height of the unit body. 5.2 After fixing be sure no gap left between the ceiling and the panel Wiring of the decoration panel.

  • Page 35: Ⅳ Unit Maintenance

    Unit MAINTENANCE Ⅳ Unit MAINTENANCE...

  • Page 36: Troubleshooting

    Unit MAINTENANCE 1.TROUBLESHOOTING Panel TB03 displaying the error code : Error code Error Water pump error Communications error temperature sensor error at the return air inlet Evaporator temp. sensor error temperature sensor error at the wire controller Full water protection Entering cooling temp.
  • Page 37 Unit MAINTENANCE b. Do not dry over fire. c. Do not run the air condition without the air filter. d. The suction grille must be opened by skilled personnel. Fix the air filters ① Fix three air-cleaner on the air filter and then fix the air filter to the suction grille by hanging it to the projected portion above suction grille.
  • Page 38 Unit MAINTENANCE Changing air cleaner ① Open the suction grille See step 1 of “How to clean the air filter” ② Remove the air cleaner Remove the air filter and remove the air cleaner after unscrewing. ③ Take off packing bag and put in new static electricity fiber filter, then fix them on the air filter.

  • Page 39: Wiring Diagram

    ① Clean the filter and the body of the unit. ② Turn off power. ③ Clear outdoor of dust. ④ If there is any rust in the outdoor unit, this should be painted over to prevent the rust from spreading. 3. WIRING DIAGRAM Model:FP-51XD/A-K;FP-68XD/A-K Model:FP-85XD/B-T;FP-102XD/B-T;FP-125XD/B-T;FP-140XD/B-T;FP-160XD/B-T;FP-180XD/B-T;FP-2...
  • Page 40 Unit MAINTENANCE 00XD/B-T;FP-85XD/B-T(E);FP-102XD/B-T(E);FP-125XD/B-T(E);FP-140XD/B-T(E);FP-160XD/B-T(E);F P-180XD/B-T(E) Model:FP-68XDT/B-K; FP-85XDT/B-K; FP-125XDT/B-K; FP-180XDT/B-K.；FP-68XDT/B-K(E)； FP-85XDT/B-K(E)；FP-125XDT/B-K(E)；FP-180XDT/B-K(E).

  • Page 41: Disassembly And Assembly Procedure Of Main Parts

    FP-125XD/B-T; FP-140XD/B-T; FP-160XD/B-T; FP-180XD/B-T; FP-200XD/B-T; FP-68XDT/B-K; FP-85XDT/B-K; FP-125XDT/B-K; FP-180XDT/B-K. FP-51XD/A-K ,FP-68XD/A-K,FP-68XDT/B-K(E),FP-85XDT/B-K(E),FP-125XDT/B-K(E),FP-180XDT/B-K (E),FP-85XD/B-T(E),FP-102XD/B-T(E),FP-125XD/B-T(E),FP-140XD/B-T(E),FP-160XD/B-T(E),FP-180X D/B-T(E),FP-200XD/D-K(E). Disassembly Procedures of Indoor Unit ( Panel TB03) Remark: Make sure that the unit is stopped running and power supply is cut off before removal of the motor.
  • Page 42 Unit MAINTENANCE Loosen two screws fixing the electric box ④ Disassemble the and then disconnect each wiring terminals, electrical box after that take the electric box out upward. ⑤ Disassemble the Loosen the screws fixing the flow-guide loop flow-guide loop and then turn it counter clockwise.
  • Page 43 Unit MAINTENANCE Loosen the screws on the mounting plate and take it out. Loosen the screws on the baffle of the pipe outlet, and then press it downward to pull out the buckles on both side, after that, take the baffle away. Loosen the screws and clamps on the ⑧...

  • Page 44: Exploded Views And Spare Part Lists

    Unit MAINTENANCE 5. EXPLODED VIEWS AND SPARE PART LISTS FP-51XD/A-K; FP-68XD/A-K exploded views and spare parts list. FP-51XD/A-K FP-68XD/A-K Discription EM52000010 EM52000020 Quantity Name of Parts Part Code Part Code Rear Grill 26909400007 26909400007 Fan Motor 150101000011 150101000011 Water Tray Assy...
  • Page 45 Unit MAINTENANCE Right Side Plate Sub-Assy 01319400013 01319400013 Foam Sub- Assy 000010000001 000010000001 Base Plate Assy 02229400007 02229400007 Body Installing Support 01332705 01332705 Left Side Plate Sub-Assy 01319400012 01319400012 Electric Box Assy 01396001501 01396001502 Terminal Board 420001000004 420001000004 Breadboard Holder 26909407 26909407 Main Board...
  • Page 46 Unit MAINTENANCE FP-85XD/B-T;FP-102XD/B-T;FP-125XD/B-T;FP-140XD/B-T;FP-160XD/B-T;FP-180XD/B-T;FP-200X D/B-T;FP-68XDT/B-K(E);FP-85XDT/B-K(E);FP-125XDT/B-K(E);FP-180XDT/B-K(E);FP-85XD/B-T(E);F P-102XD/B-T(E);FP-125XD/B-T(E);FP-140XD/B-T(E);FP-160XD/B-T(E);FP-180XD/B-T(E);FP-200XD/ D-K(E) exploded views and spare parts list.
  • Page 47 Unit MAINTENANCE FP-85XD/B-T FP-102XD/B-T FP-85XD/B-T(E) FP-102XD/B-T(E) Discription EM520N0930/EM EM520N0910/EM Quantity EM520N1300 EM520N1310 520N0940 520N0920 Name of Parts Part Code Part Code Part Code Part Code Tube-exit Plate Body Fixing 1332701 1332701 1332701 1332701 Plate Front Side 1302717 1302717 1302717 1302717 Plate Left Side Plate 1302740...
  • Page 48 Unit MAINTENANCE Room sensor 390000453 390000453 390000453 390000453 Main PCB 30224000089 30224000089 30224000089 30224000089 Capacitor 3301074702 3301074705 3301074702 3301074705 Remote 30510516 30510516 30510516 30510516 Controller Evap Support 1072003 1072003 1072003 1072003 Nut with 70310012 70310012 70310012 70310012 Washer Fixer 10312701 10312701 10312701 10312701...
  • Page 49 Unit MAINTENANCE Motor 1570490101 1570490101 Centifugal Fan 10312721 10312721 Evap Connection 1072004 1072004 Cable-cross Loop 76515202 76515202 Heat exchanger 1126000042 1126000042 Water Tray 20182701 20182701 Flow-guide Loop 10372722 10372722 Electric Box asm 01396000867 01396000868 Electric Box 01424100049 01424100049 Wire Clamp 71010102 71010102 Terminal Board...
  • Page 50 Unit MAINTENANCE FP-125XD/B-T FP-140XD/B-T FP-160XD/B-T Discription Quantity EM520N0890/EM520N0900 EM520N0870EM520N0880 EM520N0850/EM520N0860 Name of Parts Part Code Part Code Part Code Tube-exit Plate 02206000001 02206000001 02206000001 Body Fixing Plate 01332701 01332701 01332701 Front Side Plate 01302718 01302718 01302718 Left Side Plate 01302715 01302715 01302715 Base Plate...
  • Page 51 Unit MAINTENANCE Controller Evap Support 01072715 01072715 01072715 Nut with Washer 70310012 70310012 70310012 Fixer 10312701 10312701 10312701 Water Pump 43130324 43130324 43130324 Pump Gasket 76712702 76712702 76712702 Pump Support 01329416 01329416 01329416 Water Level 45018012 45018012 45018012 Switch Pump Drainpipe 05230026 05230026 05230026...
  • Page 52 Unit MAINTENANCE Cable-cross Loop 76515202 76515202 76515202 76515202 Heat exchanger 01126000030 01126000030 01126000044 01126000030 Water Tray 20182701 20182701 20182701 20182701 Flow-guide Loop 10372722 10372722 10372722 10372722 Electric Box asm 01396000914 01396000025 01396000729 01396000019 Electric Box 01424100049 01424100049 01424100049 01424100049 Wire Clamp 71010102 71010102 71010102...
  • Page 53 Unit MAINTENANCE FP-180XD/B-T FP-200XD/B-T Discription Quantity EM520N0830/EM520N0840 EM520N0810/EM520N0820 Name of Parts Part Code Part Code Tube-exit Plate 02206000001 02206000001 Body Fixing Plate 01332701 01332701 Front Side Plate 01302713 01302713 Left Side Plate 01302711 01302711 Base Plate 01222701 01222701 Rear Side Plate 01302709 01302709 Bottom Foam...
  • Page 54 Unit MAINTENANCE Nut with Washer 70310012 70310012 Fixer 10312701 10312701 Water Pump 43130324 43130324 Pump Gasket 76712702 76712702 Pump Support 01332721 01332721 Water Level Switch 45018012 45018012 Pump Drainpipe 05230026 05230026 Right Side Plate 01302712 01302712 Cable-cross Block 76512702 76512702 Pump Cover Board 01252713 01252713...
  • Page 55 Unit MAINTENANCE Electric Box asm 01396000019 01396001567 01396000870 Electric Box 01424100049 01424100049 01424100049 Wire Clamp 71010102 71010102 71010102 Terminal Board 420001000004 420001000004 420001000004 Tube Sensor 390001982 390001982 390001982 Transformer 4311022602 4311022602 4311022602 Electric Box Cover 0142410004801A 0142410004801A 0142410004801A Room sensor 390000453 390000453 390000453...
  • Page 56 Unit MAINTENANCE FP-68XDT/B-K; FP-68XDT/B-K(E) exploded views and spare parts list. FP-68XDT/B-K FP-68XDT/B-K(E) Discription Quantity EM520N0990 EM520N1260 Name of Parts Part Code Part Code Tube Exit Plate Assy 01346000095 01346000095...
  • Page 57 Unit MAINTENANCE Body Fixing Plate 01332701 01332701 Front Side Plate 01302717 01302717 Left Side Plate 01302740 01302740 Base Plate 01222701 01222701 Rear Side Plate 01302719 01302719 Bottom Foam 52012720 52012720 Motor Gasket 76712711 76712711 Motor Support 01702701 01702701 Motor 1570490101 1570490101 Centifugal Fan 10312721...
  • Page 58 Unit MAINTENANCE FP-85XDT/B-K; FP-85XDT/B-K(E) exploded views and spare parts list. FP-85XDT/B-K FP-85XDT/B-K(E) Discription Quantity EM520N0960 EM520N1270 Name of Parts Part Code Part Code Tube Exit Plate Assy 01346000095 01346000095 Body Fixing Plate 01332701 01332701...
  • Page 59 Unit MAINTENANCE Front Side Plate 01302717 01302717 Left Side Plate 01302740 01302740 Base Plate 01222701 01222701 Rear Side Plate 01302719 01302719 Bottom Foam 52012720 52012720 Motor Gasket 76712711 76712711 Motor Support 01702701 01702701 Motor 1570490101 1570490101 Centifugal Fan 10312721 10312721 Evap Connection 01072004 01072004...
  • Page 60 Unit MAINTENANCE FP-125XDT/B-K; FP-125XDT/B-K(E) exploded views and spare parts list. FP-125XDT/B-K FP-125XDT/B-K(E) Discription EM520N1280 Quantity EM520N0970 Name of Parts Part Code Part Code Tube Exit Plate Assy 01346000094 01346000094...
  • Page 61 Unit MAINTENANCE Body Fixing Plate 01332701 01332701 Front Side Plate 01302718 01302718 Left Side Plate 01302715 01302715 Base Plate 01222701 01222701 Rear Side Plate 01302714 01302714 Bottom Foam 52012722 52012722 Motor Gasket 76712711 76712711 Motor Support 01702701 01702701 Motor 15704102 15704102 Centifugal Fan 10312705...
  • Page 62 Unit MAINTENANCE FP-180XDT/B-K; FP-180XDT/B-K(E) exploded views and spare parts list. FP-180XDT/B-K FP-180XDT/B-K(E) Discription Quantity EM520N0980 EM520N1290 Name of Parts Part Code Part Code Tube Exit Plate Assy 01346000094 01346000094 Body Fixing Plate 01332701 01332701...
  • Page 63 Unit MAINTENANCE Front Side Plate 01302713 01302713 Left Side Plate 01302711 01302711 Base Plate 01222701 01222701 Rear Side Plate 01302709 01302709 Bottom Foam 52012721 52012721 Motor Gasket 76712711 76712711 Motor Support 01702701 01702701 Motor 1570490301 1570490301 Centifugal Fan 26904115 26904115 Evap Connection 01072733 01072733...
  • Page 64 No.：JF00300710...
