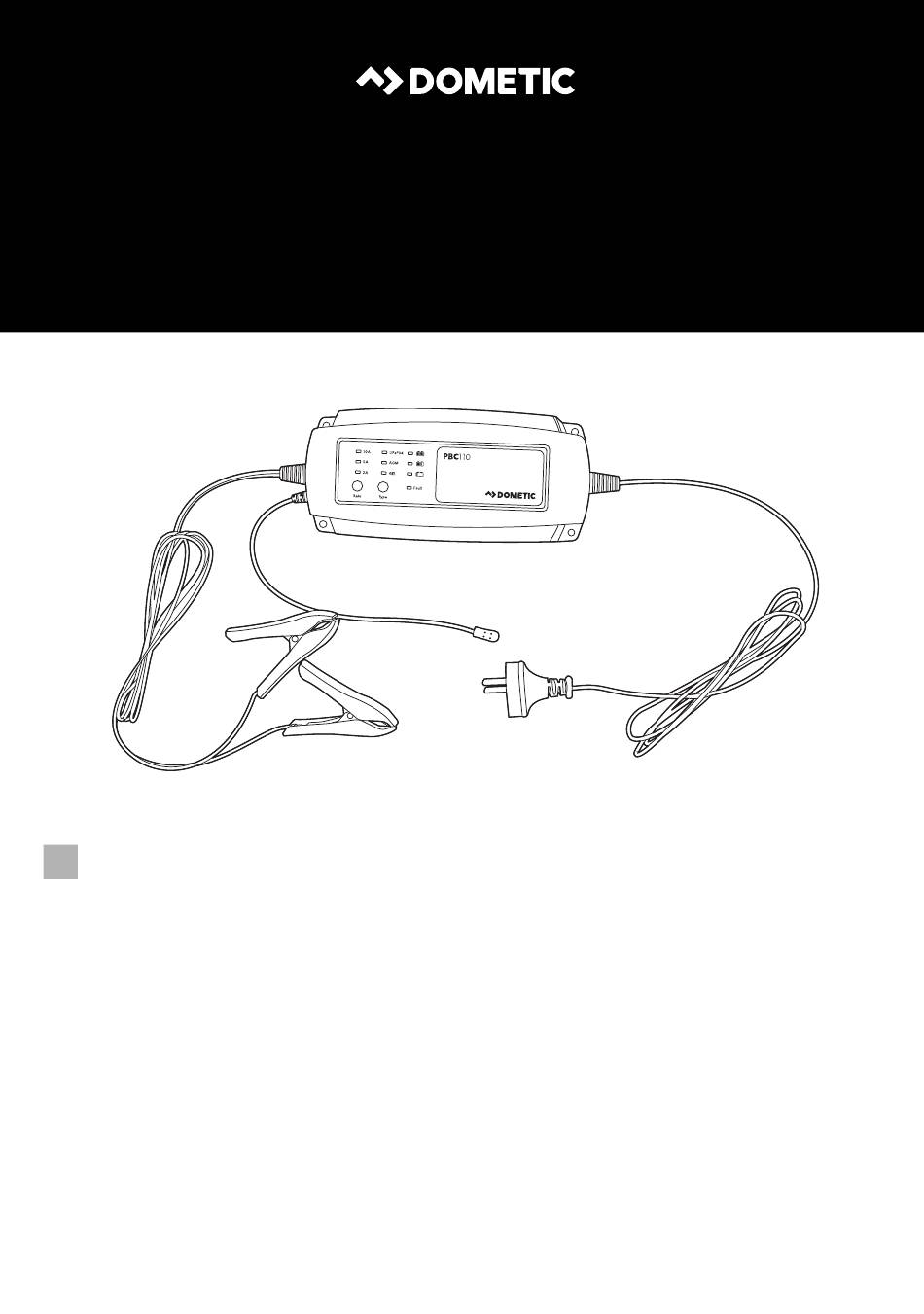

- Page 1 POWER & CONTROL CHARGERS PORTABLE PBC110 Battery Charger Operating manual...
-
Page 2: Table Of Contents
Explanation of symbols PBC110 Please read this instruction manual carefully before installation and first use, and store it in a safe place. If you pass on the product to another person, hand over this instruction manual along with it. Table of contents Explanation of symbols . -
Page 3: General Safety Instructions
PBC110 General safety instructions CAUTION! Safety instruction: Failure to observe this instruction can lead to injury. NOTICE! Failure to observe this instruction can cause material damage and impair the function of the product. NOTE Supplementary information for operating the product. - Page 4 General safety instructions PBC110 • If the supply cord is damaged, it must be replaced by the manufac- turer, its service agent or similarly qualified persons in order to avoid a hazard. • This device may only be repaired by qualified personnel. Inadequate repairs may cause serious hazards.
- Page 5 PBC110 General safety instructions WARNING! • Only use the device indoor. Do not expose battery charger to rain, snow or other liquids. • Explosive gases may escape from the battery during charging. Pro- vide good ventilation to prevent flames and sparks.
-
Page 6: Intended Use
Intended use The battery charger PBC110 is designed to charge, desulfate and maintain 12V lead acid (GEL, WET, AGM) and LiFePO4 batteries with a capacity of 6 Ah to 200 Ah (maintenance up to 240 Ah). It must not be used on other battery types. -
Page 7: Scope Of Delivery
Scope of delivery Quantity Description Quantity Battery charger PBC110 Operation Manual Technical description The battery charger may be placed on the ground or be mounted with four screws to the wall. It is equipped with heavy-duty cables, corrosion-resistant output connec- tors and spark-free contacts. - Page 8 Technical description PBC110 When the battery is connected and AC power is on, the charger will automatically diagnose the battery condition and determine if the battery should engage soft start charging or go directly into bulk charging. Charging rate Stage...
- Page 9 If AC power is connected when no battery is connected, the battery charger goes automatically into ECO mode to minimize power consumption. Parts and connections No. in Description fig. 1 Output lead with clips Battery charger PBC110 AC Power cord Temperature sensor...
- Page 10 Technical description PBC110 Controls No. in Explanation/function fig. 2 Charging rate indicator (2 A/5 A/10 A) Battery type indicator (LiFePO4/AGM/GEL) Battery status of charge indicator Battery type selector Charging rate selector...
-
Page 11: Settings
PBC110 Settings LED status indicator Status Color Explanation green Battery up to 20 % charged green Battery between 20 and 80 % charged Flash green Analysis stage or recondition charging green Fully charged, maintaining the battery Fault Output shortcircuit or battery connected... -
Page 12: Charging
Charging PBC110 Charge rate The following maximum capacities are to be used as a general guide: Setting Battery capacity/Charging Battery capacity/Maintaining 6 – 20 Ah 6 – 20 Ah 21 – 50 Ah 21 – 60 Ah 10 A 51 – 200 Ah 61 –... - Page 13 PBC110 Charging Battery outside the vehicle ➤ Connect the red clip of the battery charger to the positive battery terminal (+). ➤ Connect the black clip of the battery charger to the negative battery terminal (-). Battery in the vehicle ➤...
-
Page 14: Maintaining And Cleaning
Maintaining and cleaning PBC110 ➤ Check electrolyte levels if required by your battery type. ➤ If necessary, remove the vent caps and add distilled water so the levels are half- way between the upper and lower fill lines. Battery in the vehicle ➤... -
Page 15: Trouble Shooting
PBC110 Trouble shooting Trouble shooting Indication Possible causes Remedy • Charger does not • No AC power • Check AC connec- work tions and make sure mains socket is • No LEDs are ON switched ON. • Charger has no DC •... -
Page 16: Warranty
Warranty If the product does not work as it should, please contact your retailer or the manufac- turer's branch in your country (see dometic.com/dealer). The warranty applicable to your product is 1 year(s). For repair and warranty processing, please include the following documents when you send in the device: •... -
Page 17: Technical Data
PBC110 Technical data Technical data 12.1 General technical data Model PBC110 Type Smart & Automatic Battery type: Lead acid (WET, GEL, AGM), LiFePO4 Charging process 7 stages Input 220-240 VAC 50/60 Hz Output voltage 12 V Output current 2 / 5 / 10 A Output voltage at no load <... -
Page 18: Copyright
PBC110 Copyright © 2020 Dometic Group. The visual appearance of the contents of this manual is pro- tected by copyright and design law. The underlying technical design and the prod- ucts contained herein may be protected by design, patent or be patent pending. - Page 19 PBC110 Copyright...
