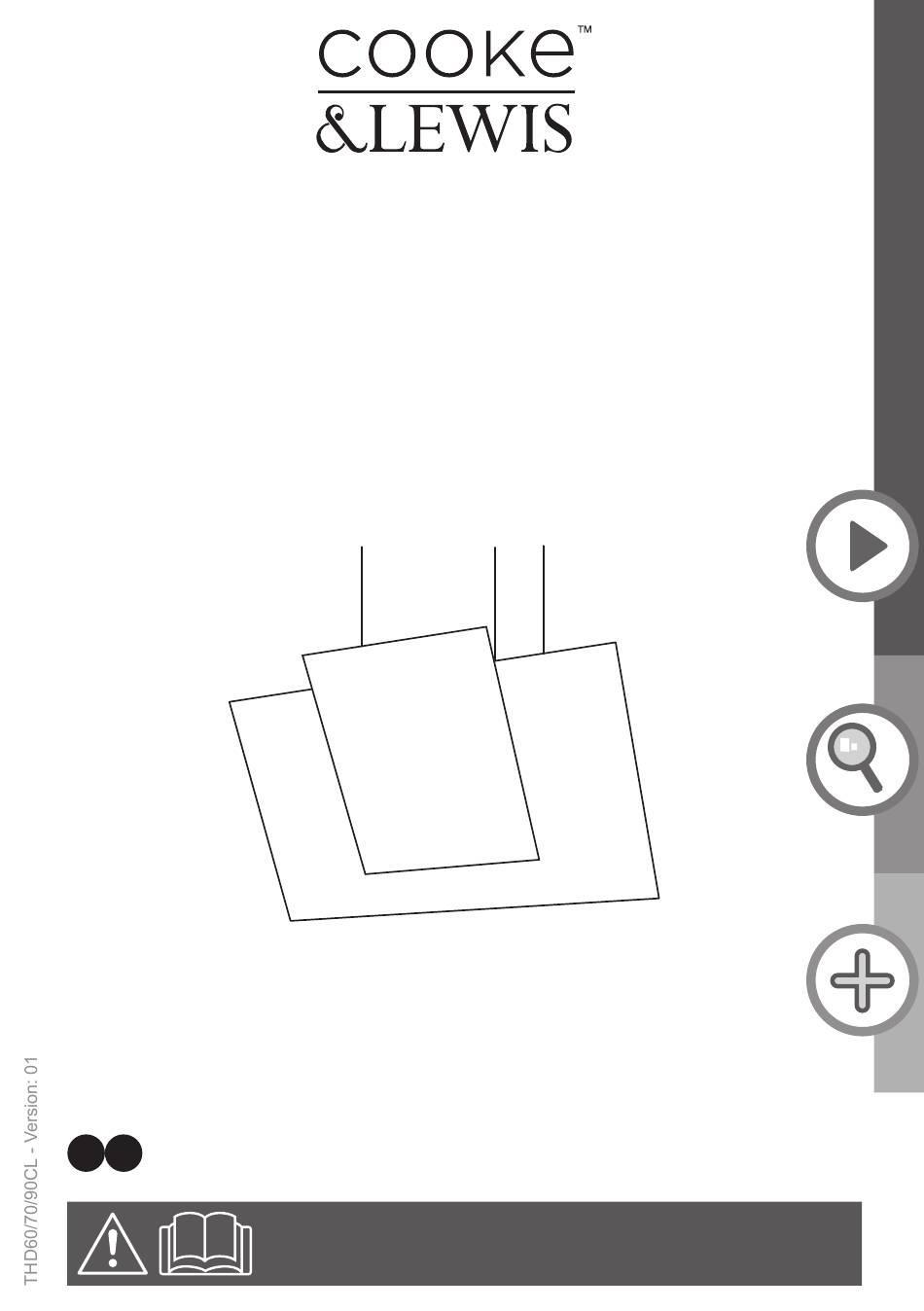

- Page 1 ANGLE GLASS COOKER HOOD 60CM / 70CM / 90CM GB IE Cooker Hood - Barcode: 5052931258772, 5052931258789, 5052931258796 WARNING: Read the instructions before using the appliance.
- Page 2 [01] x 1 [02] x 1 [03] x 1 [04] x 2 [05] x 1 [06] x 2 [07] x 1 [08] x 1 [09] x 1 [10] x 5 1 : 1 [12] x 5 (3.9 x 32mm) [13] x 10 (3.4 x 8mm) THD60/70/90CL Cooker Hood...
-
Page 3: Table Of Contents
Let's get started... These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. started… Getting Your product Before you start Safety more detail… Operation Care and maintenance Troubleshooting Recycling and disposal Technical and legal information Guarantee CE Declaration of conformity... -
Page 4: Your Product
Your product THD60/70/90CL Cooker Hood Before you start Your product Installation guide located at the end of the guidebook Things to check before you start To avoid the risks that are always present when you use an electrical appliance it is important that this cooker hood is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards. -
Page 5: Safety
Before you start THD60/70/90CL Cooker Hood Safety Accessories not supplied SELF ADHESIVE ALUMINIUM TAPE Ø125mm or Ø150mm VENT PACK 2 (UK & IE) CARBON FILTER ORDERING HOTLINE 0844 800 1128 (UK) 014475261 (IE) MODEL NUMBER: 02859396 Safety These instructions are for your safety. Please read through them thoroughly prior to installation and retain them for future reference. - Page 6 Safety THD60/70/90CL Cooker Hood Accessible parts may become hot during use. Young children should be kept away. Care should be taken to avoid touching the appliance. The Manufacturer highly recommends that this appliance be kept out of the reach of babies and small children.
- Page 7 Safety THD60/70/90CL Cooker Hood Do not allow the electric cables to touch the hot parts of the appliance. Make sure that the power cord is not caught under or in the appliance and avoid damage to the power cable. Do not install the appliance outdoors in a damp place or in an area which may be prone to water leaks such as under or near a sink unit.
- Page 8 Safety THD60/70/90CL Cooker Hood The appliance is for domestic use only. Warning: Consult local regulations regarding fumes outlets. Do not connect the hood to a fume, ventilation or hot air duct. Confirm that room ventilation is appropriate with the local authorities. Make sure the maximum air extraction flow rate for the appliances in the room does not exceed 4 Pa (0.04 mbar).
- Page 9 Safety THD60/70/90CL Cooker Hood regularly and closely watch and regulate pans containing hot oil. Do not use the hood if it shows signs of damage or imperfection. Contact customer services. Flambe cooking must not be carried out underneath this appliance. When installing the appliance, make sure that the following distances between the top of cooker or hob and the lowest part of the...
-
Page 10: Operation
Operation THD60/70/90CL Cooker Hood Product functions • This appliance extracts the air of the kitchen to remove the odours and keep an optimum level of air quality inside the room, it also allows you to illuminate the cooking area. Switching on/off •... -
Page 11: Care And Maintenance
Care and maintenance THD60/70/90CL Cooker Hood Care and maintenance Warning always switch off the electricity supply before carrying out maintenance work on the hood. In the event of a FUSE fault, contact customer services. FUSE 10’ Note Please follow Active charcoal filter replacement steps on next page, before attempting to remove the bulb. - Page 12 Care and maintenance THD60/70/90CL Cooker Hood Active charcoal filter replacement 1x ACTIVE CHARCOAL FILTER (not supplied) MODEL NUMBER: 02859396 CARBON FILTER ORDERING HOTLINE 0844 800 1128 (UK)
- Page 13 Care and maintenance THD60/70/90CL Cooker Hood Aluminium filters replacement Aluminium filters: Use non-corrosive, liquid detergent or a stainless steel cleaner. 1 MONTH MAX.65˚C Aluminium filters: To avoid fires, clean thoroughly once a month. To do so, remove the filters and wash with hot water and detergent. If using a dishwasher, position the filters vertically to improve the cleaning process.
-
Page 14: Troubleshooting
Troubleshooting THD60/70/90CL Cooker Hood Troubleshooting Fault Cause Solution Excessive The appliance is not Take down the appliance and vibration. installed properly on the brackets. The fan blade is Switch off the appliance. Repair damaged. service personnel only. tightly. Light on, but The fan blade is jammed. -
Page 15: Recycling And Disposal
Recycling and disposal THD60/70/90CL Cooker Hood Technical and legal information Recycling and disposal Environmental protection Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. The symbol on the product or its packaging indicates that this product cannot be treated as normal household waste. - Page 16 Technical and legal information THD60/70/90CL Cooker Hood Wiring All installation work must be carried out by a competent person or qualified electrician. Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate. WARNING: THIS APPLIANCE MUST NOT BE EARTHED.
- Page 17 Technical and legal information THD60/70/90CL Cooker Hood Technical and legal information The Manufacturer declines all liability for damage caused to persons and objects due to incorrect or improper installation of the appliance. Electrical Requirements Any permanent electrical installation must comply with the latest I.E.E. regulations and local electricity company regulations.
-
Page 18: Guarantee
Guarantee THD60/70/90CL Cooker Hood Guarantee This appliance is covered by a full manufacturer’s 2 year parts and 2 year labour guarantee and covers all parts and labour costs associated with the repair of the appliance in a domestic environment. We will repair any defect that arises due to faulty materials or workmanship and use genuine manufacturers parts. - Page 19 Guarantee THD60/70/90CL Cooker Hood Guarantee Exclusions to the guarantee This guarantee does NOT cover: Appliances that have been damaged or neglected as a result of failure to store, assemble, install, use or care of the products in accordance with the manufacturer’s instructions - GAA will not accept responsibility under this guarantee if a product is damaged or becomes defective due to, misuse, neglect, wilful or accidental damage or act of god.
-
Page 20: Ce Declaration Of Conformity
We hereby certify that the mentioned accessory complies with the essential requirements of the European Directives applicable, including their modifications and the corresponding transpositions from the national law. MACHINE APPLICATION: THD60CL, THD70CL, THD90CL Decorative Cooker Hood TYPE: Comply with the European Directives 2006/95/CE: LVD... -
Page 21: Installation
Installation DUCTED OPTION RECIRCULATION OPTION ACTIVE CHARCOAL FILTER (02859396) VENT PACK 2 (UK + IE) You can choose two types of installation: - Ducted option - Recirculation option [13] x 6 Connect the electric cable and fix the metal box and motor to the glass and metal work. - Page 22 170mm Max. 880mm 400mm 277mm 70mm 80mm DIM.B DIM.B Min. 650 mm from gas cooker Min. 435 mm from electric cooker Mark the holes on the kitchen wall to fix the cooker hood. The wall plugs supplied are suitable for solid walls only. When fixing to any other type of wall use suitable alternative fixings.
- Page 23 [10] x 5 [10] [12] [12] x 2 Drill five holes, and then insert the wall plugs in all the holes. Now insert screws in the middle two holes. [12] x 1 Position the hood over the top two screws then insert the bottom screws from inside the hood, tighten screws to secure.
- Page 24 [05] x 1 [05] [12] [12] x 2 Max. 880mm Fix the top bracket to the wall. [03] x 1 [07] x 1 Replace the aluminium filter and fix front glass panel.
- Page 25 [09] [13] [08] x 1 [08] [09] x 1 [13] x 2 Fix the collar and the reducer if required. Ø125mm or Ø150mm Vent Pack 2 (UK + IE) Fix the ducting tube Ø125mm or Ø150mm using tape or clamp.
- Page 26 [04] [04] x 2 Fix to the wall the top bracket and place the decorative tubes. [13] x 2 [13] Fix the chimney to the top bracket using two screws. Connect top of the ducting tube to vent kit as per manufacturers instructions.
- Page 27 Remove the protection film. For electrical connection see Technical and legal information section.
- Page 28 B&Q plc, Chandlers Ford, Hants, SO53 3LE United Kingdom www.diy.com...
