Summary of Contents for Cooke & Lewis MRD60CL

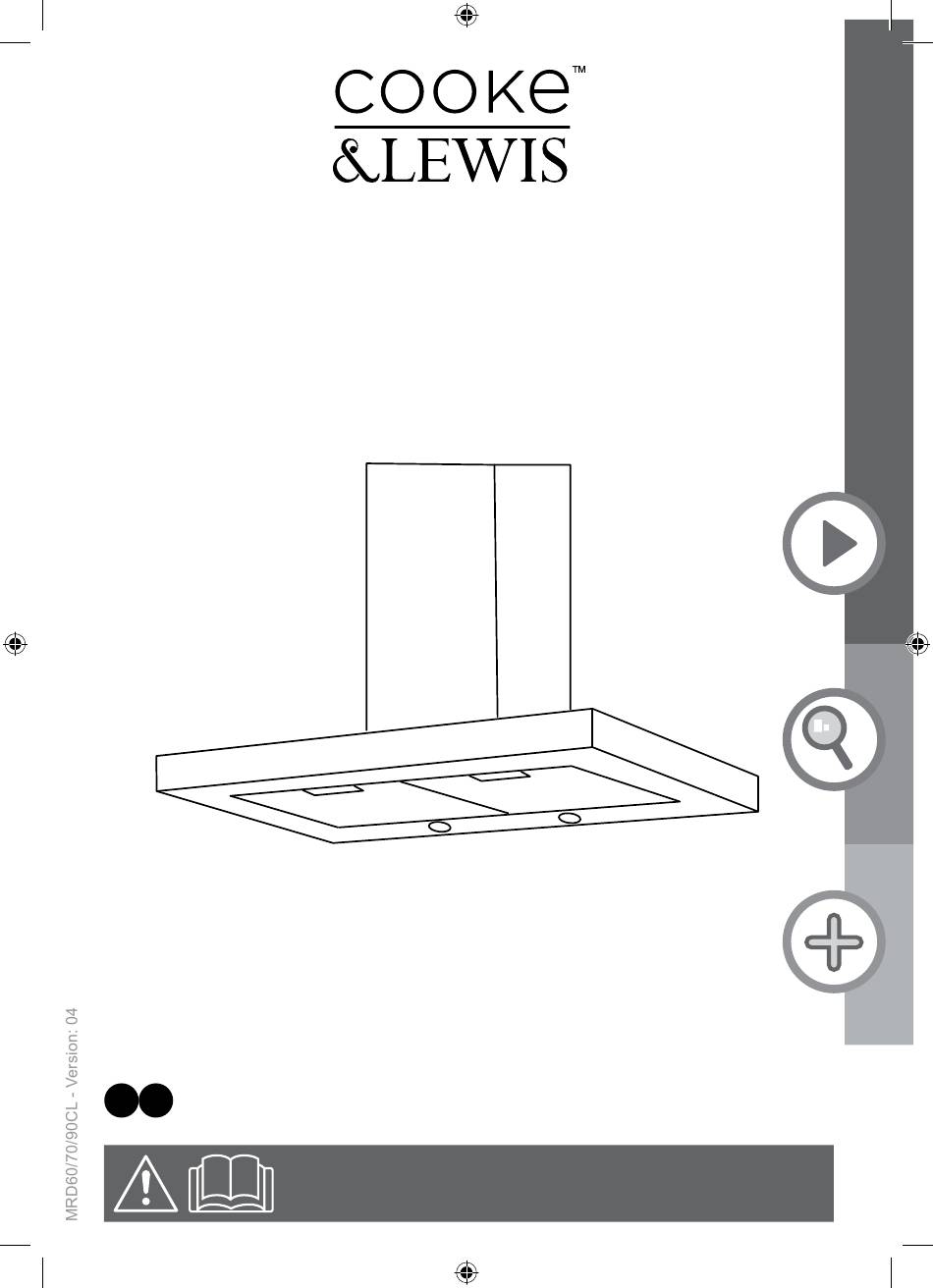

- Page 1 Cooker Hood GB IE Cooker Hood - Barcode: 5052931258727, 5052931258734, 5052931258741 WARNING: Read the instructions before using the appliance. MRD60_70_90CL-C&L-A5 GB-IM-04.indd 1 8/2/13 11:12 AM...
-
Page 2: Mrd60_70_90Cl-C&L-A5 Gb-Im-04.Indd
[01] x 1 [02] x 1 [03] x 2 [04] x 2 [05] 60cm model x2 70cm model x2 90cm model x3 [06] x 1 [07] x 1 [08] x 8 1 : 1 [09] x 8 (3.9 x 32mm) [10] x 4 (3.8 x 12mm) MRD60/70/90CL Cooker Hood MRD60_70_90CL-C&L-A5 GB-IM-04.indd 2... -
Page 3: Table Of Contents
Let's get started... These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. Getting started… Your product Before you start Safety more detail… Operation Care and maintenance Troubleshooting Recycling and disposal Technical and legal information Guarantee CE Declaration of conformity... -
Page 4: Getting Started
Your product MRD60/70/90CL Cooker Hood Before you start Your product Installation guide located at the end of the guidebook Things to check before you start To avoid the risks that are always present when you use an electrical appliance it is important that this cooker hood is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards. -
Page 5: Safety
Before you start MRD60/70/90CL Cooker Hood Safety Accessories not supplied Recirculation Extraction CARBFILT5 (UK & IE) Ø125mm or Ø150mm VENT PACK 2 (UK & IE) CARBON FILTER ORDERING HOTLINE 0344 800 1128 (UK) SELF ADHESIVE 014475261 (IE) ALUMINIUM TAPE Safety These instructions are for your safety. - Page 6 Safety MRD60/70/90CL Cooker Hood This appliance complies with all current European safety legislation, however, the Manufacturer must emphasise that this compliance does not prevent the surfaces of the appliance from heating up during use and remaining hot during its operation. Accessible parts may become hot during use.
- Page 7 MRD60/70/90CL Cooker Hood Safety Regularly check the power plug and power cord for damage. If the supply cord is damaged, it must be replaced by the manufacturer, its order to avoid a hazard. Do not allow the electric cables to touch the hot parts of the appliance.
- Page 8 Safety MRD60/70/90CL Cooker Hood The appliance is not intended to be operated by means of external timer or separated remote-control system. The appliance is for domestic use only. Warning: Consult local regulations regarding fumes outlets. Do not connect the hood to a fume, ventilation or hot air duct.
- Page 9 MRD60/70/90CL Cooker Hood Safety Safety Warning: The hood may stop working during an electrostatic discharge (e.g. lightning). This involves no risk of damage. Switch off the electricity supply to the hood and reconnect after one minute. To avoid the risk of fire, clean the metal filter regularly and closely watch and regulate pans containing hot oil.
-
Page 10: In More Detail
Operation MRD60/70/90CL Cooker Hood Product functions • This appliance extracts the air of the kitchen to remove the odours and keep an optimum level of air quality inside the room, it also allows you to illuminate the cooking area. Switching on/off •... -
Page 11: Care And Maintenance
MRD60/70/90CL Cooker Hood Care and maintenance Care and maintenance Warning always switch off the electricity supply before carrying out maintenance work on the hood. In the event of a FUSE fault, contact customer services. FUSE 10’ The bulb may be hot, leave it 10 minutes before removing it. MRD60_70_90CL-C&L-A5 GB-IM-04.indd 11 8/2/13 11:13 AM... - Page 12 Care and maintenance MRD60/70/90CL Cooker Hood 2x ACTIVE CHARCOAL FILTER (NOT SUPPLIED) MODEL NUMBER CARBFILT5 (UK & IE) CARBON FILTER ORDERING HOTLINE 0344 800 1128 (UK) 014475261 (IE) MRD60_70_90CL-C&L-A5 GB-IM-04.indd 12 8/2/13 11:13 AM...
- Page 13 MRD60/70/90CL Cooker Hood Care and maintenance Metal and aluminium filters replacement Metal filter: Exterior cleaning: use non-corrosive, liquid detergent and avoid the use of abrasive cleaning products. 1 MONTH MAX.65˚C Aluminium filters: To avoid fires, clean thoroughly once a month or whenever the display pilot light lights up (if fitted).
-
Page 14: Troubleshooting
Troubleshooting MRD60/70/90CL Cooker Hood Troubleshooting Fault Cause Solution Excessive The appliance is not Take down the appliance and check it is properly fixed. vibration. installed properly on the brackets. The fan blade is Switch off the appliance. Repair to be carried out by qualified damaged. -
Page 15: Recycling And Disposal
Recycling and disposal MRD60/70/90CL Cooker Hood Technical and legal information Recycling and disposal Environmental protection Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. The symbol on the product or its packaging indicates that this product cannot be treated as normal household waste. - Page 16 Technical and legal information MRD60/70/90CL Cooker Hood Wiring All installation work must be carried out by a competent person or qualified electrician. Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate. WARNING: THIS APPLIANCE MUST NOT BE EARTHED.
- Page 17 MRD60/70/90CL Cooker Hood Technical and legal information Technical and legal information The Manufacturer declines all liability for damage caused to persons and objects due to incorrect or improper installation of the appliance. Electrical Requirements Any permanent electrical installation must comply with the latest I.E.E. regulations and local electricity company regulations.
-
Page 18: Guarantee
Guarantee MRD60/70/90CL Cooker Hood Guarantee This appliance is covered by a full manufacturer’s 24 month parts and labour guarantee and covers all parts and labour costs associated with the repair of the appliance in a domestic environment. We will repair any defect that arises due to faulty materials or workmanship and use genuine manufacturers parts. - Page 19 MRD60/70/90CL Cooker Hood Guarantee Guarantee Exclusions to the guarantee (continued) Claims arising from non-domestic use or commercial environment. If no fault is found then GAA reserves the right to charge for the call out at the going rate of £55.00 plus VAT. In the course of the service work carried out it may be necessary to remove the glued, grouted or tiled in such a manner that it cannot be removed, it is the responsibility of the customer/...
-
Page 20: Ce Declaration Of Conformity
We hereby certify that the mentioned accessory complies with the essential requirements of the European Directives applicable, including their modifications and the corresponding transpositions from the national law. MACHINE APPLICATION: MRD60CL, MRD70CL, MRD90CL Decorative Cooker Hood TYPE: Comply with the European Directives 2006/95/EC: LVD... -
Page 21: Installation
Installation CARBFILT5 (UK & IE) VENT PACK 2 (UK + IE) DUCTED OPTION RECIRCULATION OPTION You can choose two type of installation: - Ducted option - Recirculation option MRD60_70_90CL-C&L-A5 GB-IM-04.indd 21 8/2/13 11:13 AM... - Page 22 250mm Max. 453mm 235mm 270mm 250mm 250mm DIM. A 36mm DIM.B 60cm 70cm 90cm DIM.A 420mm 420mm 580mm DIM.B Min. 750 mm from gas cooker Min. 650 mm from electric cooker Mark the holes on the kitchen wall to fix the cooker hood. The wall plugs supplied are suitable for solid walls only.
- Page 23 [08] x 6 [09] [08] [09] x 2 Drill six holes, and then insert the wall plugs in all the holes. Now insert screws in the middle two holes. Maximum gap between top two holes and middle two holes should be no more than 453mm, depending on the ceiling height.
- Page 24 [01] [01] x 1 [05] 60cm model x2 70cm model x2 90cm model x3 [05] Remove the aluminium filters. [09] [09] x 2 Position the hood over the top two screws then insert the bottom screws from inside the hood, tighten screws to secure. MRD60_70_90CL-C&L-A5 GB-IM-04.indd 24 8/2/13 11:13 AM...
- Page 25 [07] [10] [06] x 1 [06] [07] x 1 [10] x 2 Fix the collar and the reducer if required. MRD60_70_90CL-C&L-A5 GB-IM-04.indd 25 8/2/13 11:13 AM...
- Page 26 Vent Pack 2 (UK + IE) Note: Proceed with step 9 only for ducted option. Fix the vent pack 2 using self adhesive aluminium tape. [02] x 2 [02] Place the upper chimney inside the lower chimney, then attach the chimney to the main unit.
- Page 27 [10] [10] x 2 Fix the chimney to the top bracket using two screws. Connect top of the ducting tube to vent kit as per manufacturers instructions. Remove the protection film. For recirculating option refer to Care and maintenance section. For electrical connection see Technical and legal information section.
-
Page 28: Erp Information Of Bulb Provided
Приложение... Appendix... Данные об эффективной мощности ErP Information of the bulb provided излучения приведены на лампе Annexe... Anexo... Informations ErP de l’ampoule fournie Información ErP de la bombilla incluida Załącznik... Ek bölüm... Informacja ErP dotycząca Ürünle birlikte verilen ampulün dołączonej żarówki ErP bilgileri GU10 3.5W 3000 Kelvin... -
Page 29: Information For Eu66
Appendix... Information for EU66 (A)Information of the cooker Hood (www.diy.com) Symbol Value Unit MRD60CL, Model identification MRD70CL,MRD90CL Annual Energy Consumption 102.5 kWh/a hood Time increase factor Fluid Dynamic Efficiency 16.3 hood Energy Efficiency Index 83.4 hood Measured air flow rate at best 375.3... - Page 32 B&Q plc, Chandlers Ford, Hants, SO53 3LE United Kingdom www.diy.com MRD60_70_90CL-C&L-A5 GB-IM-04.indd 28 8/2/13 11:13 AM...
