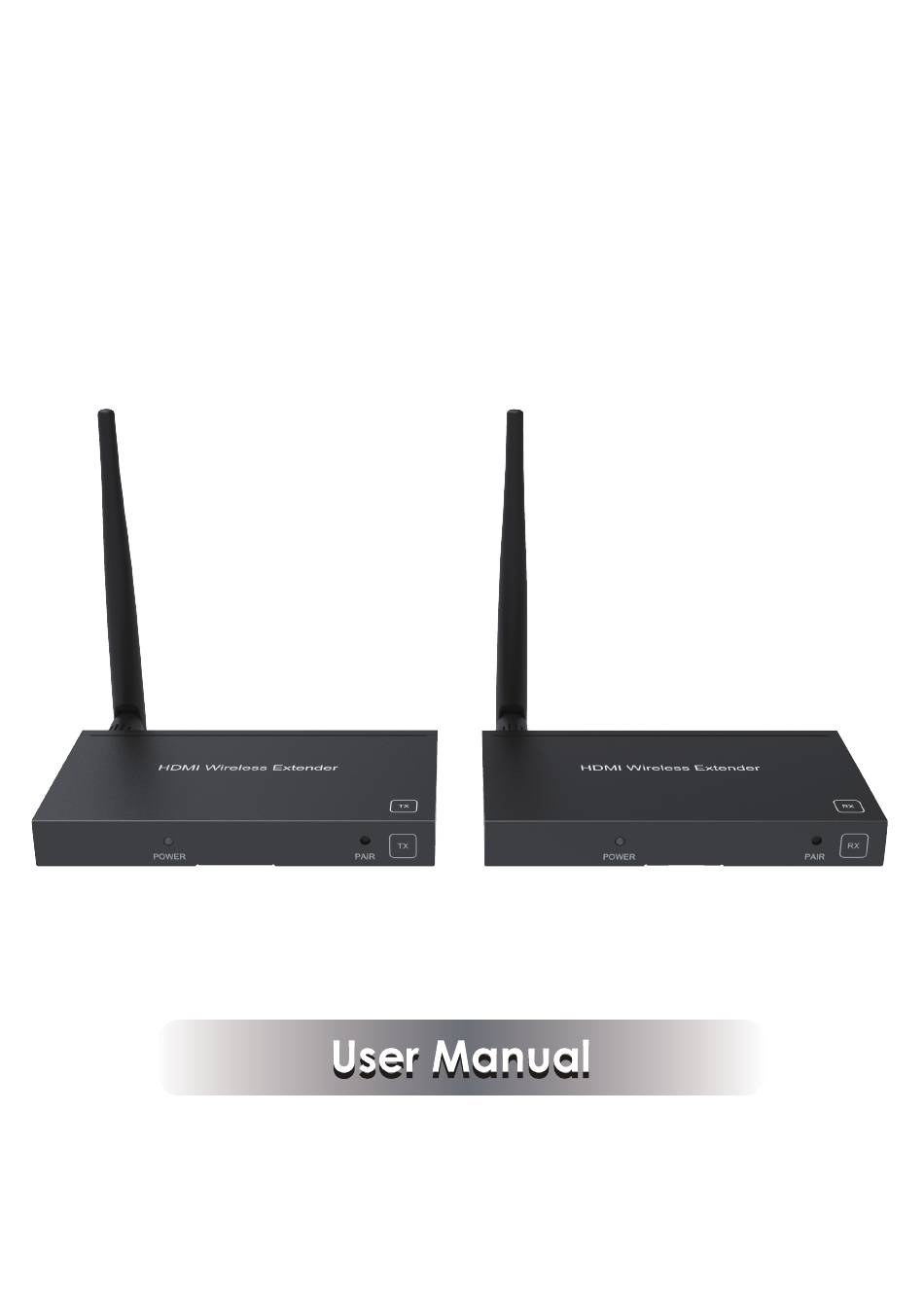

- Page 1 HDMI over Wireless Extender VER 2.0...
-
Page 2: Table Of Contents
Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction
1. Introduction This product is based on H.264 standard solution for distributing one HD content to multiple HD display devices. It extends distance the furthest up to 164ft/50m between transmitter and receiver via wireless transmission (An open environment without Wi-Fi interference). It offers high quality configurable, low-bandwidth H.264 compression video supporting resolution up to 1920×1200@60Hz. -
Page 4: Specifications
4. Specifications Technical HDMI Compliance HDMI 1.4b HDCP Compliance HDCP 1.4 Video Bandwidth 4.95Gbps Video Resolution 480i~1080p, the maximum up to 1920x1200@60Hz Color Space RGB/YCbCr 4:4:4, YCbCr 4:2:2 Color Depth 8-bit LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, HDMI Audio Formats DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD Human body model —... -
Page 5: Operation Controls And Functions
5. Operation Controls and Functions 5.1 Transmitter Panel POWER PAIR HDMI IN IR OUT DC 5V Name Number Function description The LED will illuminate when the unit is power on. POWER LED The light is also used as a pair signal indicator. Please see “6. -
Page 6: Pairing Instruction
Plug the 5V/1A adapter to AC wall outlet for power DC 5V supply. Antenna port Connect to WiFi antenna. 6.Pairing instruction ① Pairing methods Establish Pairing: Power on the receiver and the transmitter, then press the “PAIR” button simultaneously up to 3s and LED will flicker. When the LED on the receiving end is from flicker to constant light (the LED on the transmitter will be always flicker. -
Page 7: Application Example
7. Application Example Receiver Transmitter IR Blaster IR Receiver DVD or Blu-ray Player Figure 1: One transmitter connects one receiver... - Page 8 Transmitter Receivers Figure 2: One transmitter connects at most four receivers...
