Key Component
4. Ethernet port 1
5. Ethernet port 2
6. VGA port
7. Serial over LAN
8. USB ports
9. BMC
10. Ethernet port 1
11. Ethernet port 2
12. Ethernet port 3
13. Ethernet port 4
14. Optional slot
15. Optional slot

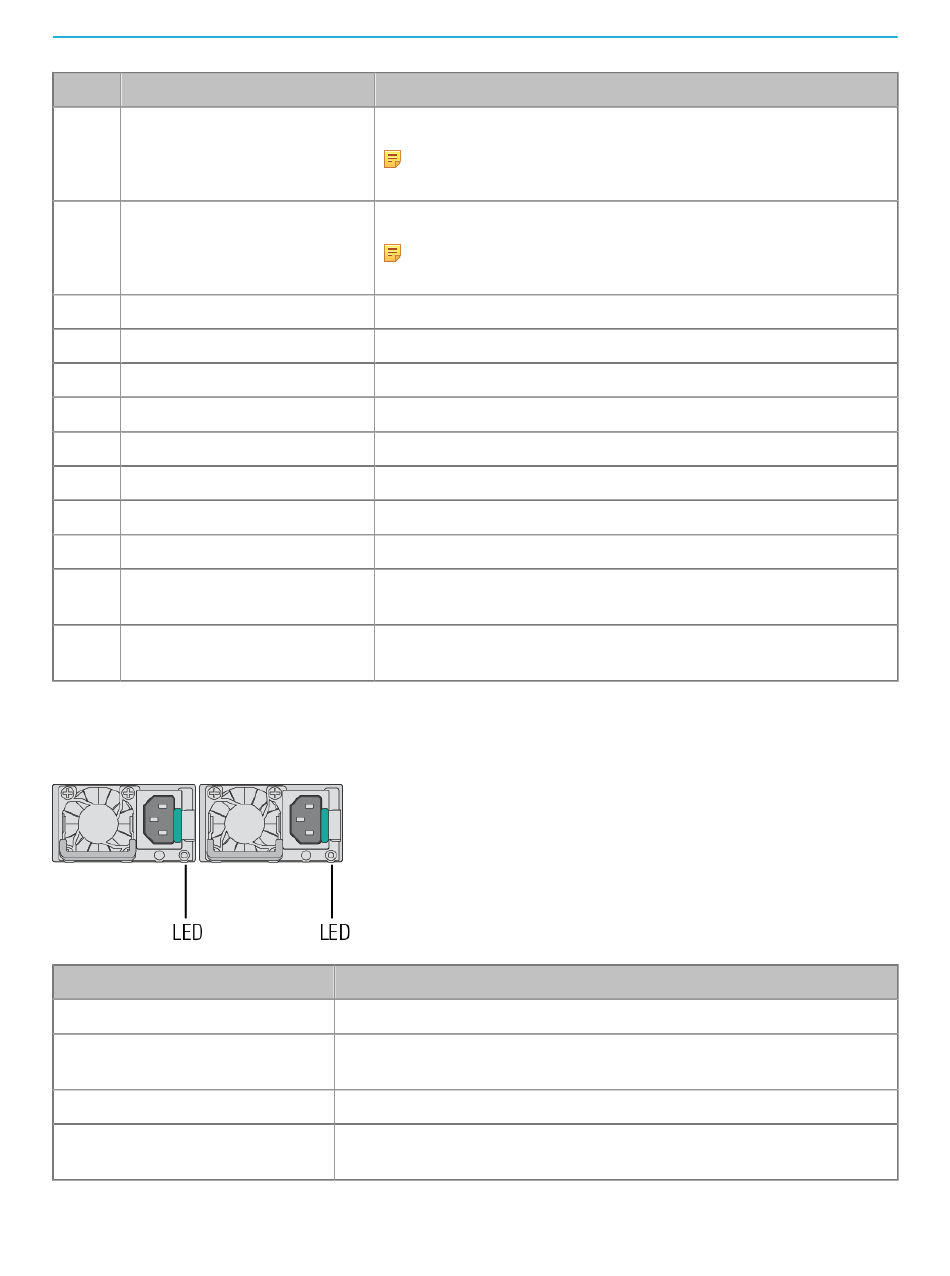

ProStream X power supply status LEDs

Note the possible states for the single power supply status LED.
LED Color
Green (on)
Green (1 Hz blinking)
Green (2 Hz blinking)
Amber (blinking)
Description
Gigabit Ethernet port for management.
NOTE: Can also be used for MPEG over IP
input/output.
Gigabit Ethernet port for CAS management.
NOTE: Can also be used for MPEG over IP
input/output.
Video port connects the device to a monitor.
Unused.
Port connects the device to a keyboard or mouse.
Baseboard Management Controller
Gigabit Ethernet port for MPEG over IP input/output.
Gigabit Ethernet port for MPEG over IP input/output.
Gigabit Ethernet port for MPEG over IP input/output.
Gigabit Ethernet port for MPEG over IP input/output.
Slot for optional Dual 10 GbE card (2 ports) or Octal ASI card (8
ports).
Slot for optional Dual 10 GbE card (2 ports) or Octal ASI card (8
ports).
Description
Power supply is on and working.
AC is present, but the power switch on the front panel is off or in a
cold redundant state due to low system power load.
Power supply FW updating.
The power supply is operational, but experiencing a warning event
such as high temperature, high power, high current or slow fan.
11
