Chapter 1: ProStream X hardware specifications and reference topics

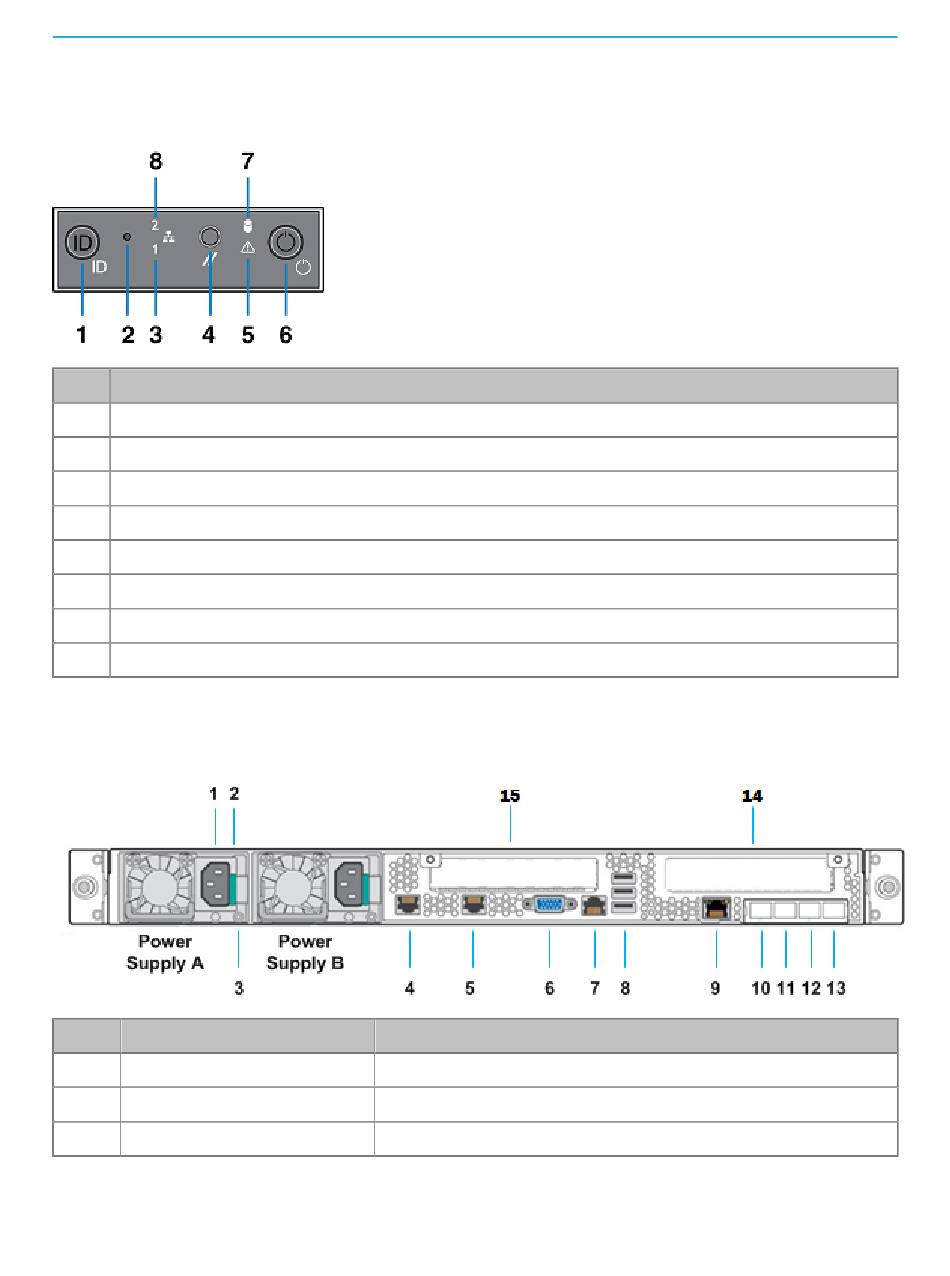

ProStream X control panel

A diagram of the ProStream X control panel.
Key Component
1. For future use
2. For future use
3. NIC 1 Activity LED
4. For future use
5. System status LED
6. Power button with integrated LED
7. Hard drive activity LED
8. NIC 2 activity LED

ProStream X rear panel

A diagram of the ProStream X rear panel components.
Key Component
1. AC Power connector
2. Release Lever
3. Power supply LED
Description
Secures power supply module to the chassis.
Dual redundant power supplies. LED functions detailed below.
