Summary of Contents for ATI Technologies AT7000 Series

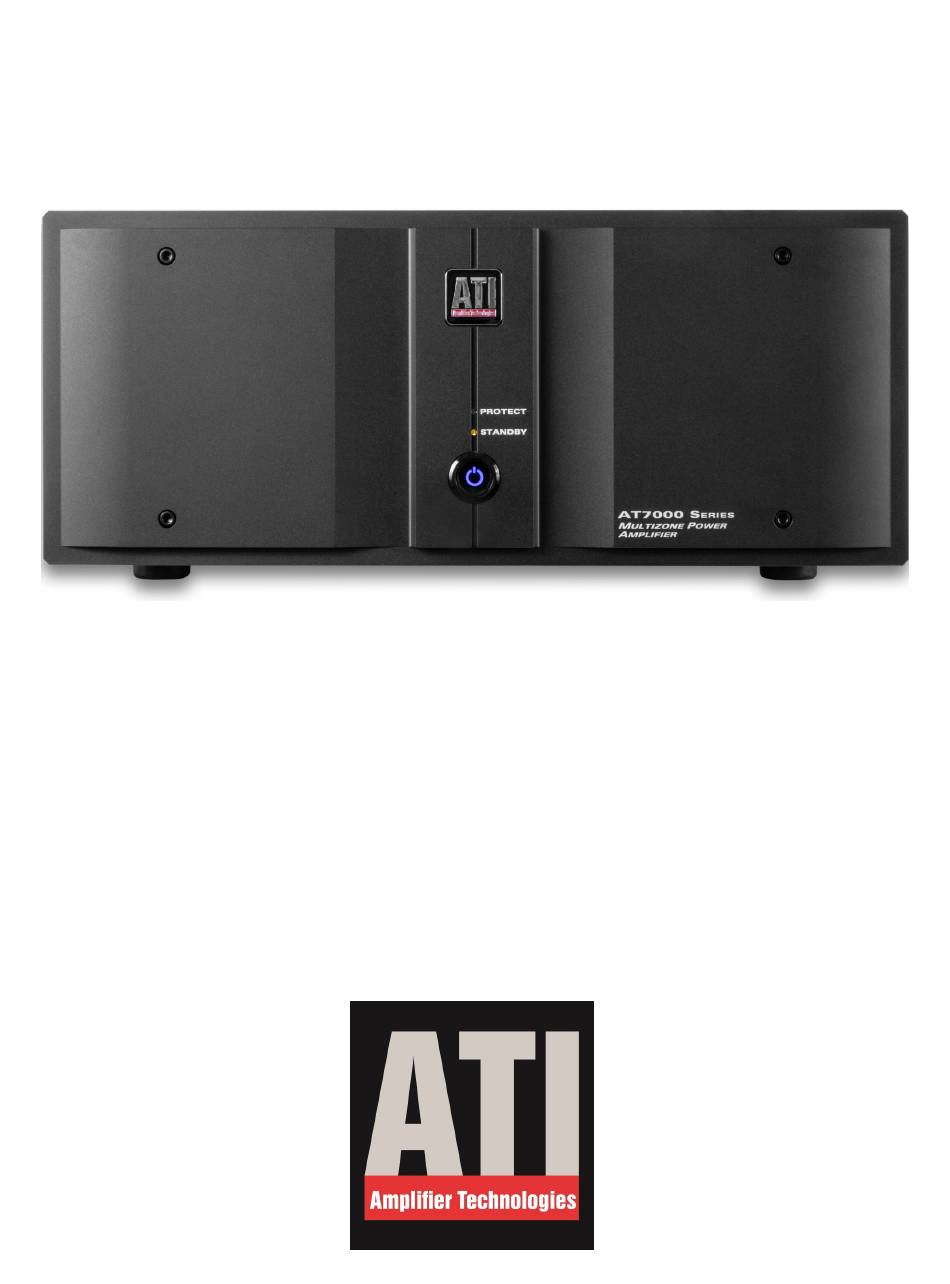

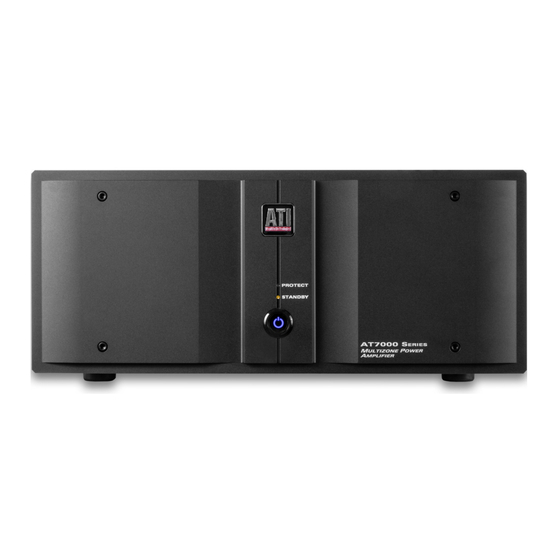

- Page 1 AT7000 SERIES 12 & 16 CHANNEL MULTIZONE DISTRIBUTION POWER AMPLIFIERS OWNER’S GUIDE...
-
Page 2: Safety Warning
PLEASE READ FIRST SAFETY INSTRUCTIONS Read all the safety and operating instructions before connec- CAUTION tion or using the AT7000 amplifier. RISK OF ELECTRIC SHOCK All warnings on the unit and in this operating manual should DO NOT OPEN be adhered to. All operating and use instructions should be followed. -
Page 3: Table Of Contents
Table of Contents SAFETY WARNING ......................... 1 SAFETY INSTRUCTIONS ....................... 1 Table of Contents ..........................2 AT7000 Identification Record ......................2 Introduction ............................3 Features and Testing..........................3 Unpacking ............................3 Placement ............................. 3 Handles and Rack Mounting ........................ 3 Owner’s Guide Conventions ........................ -
Page 4: Introduction
Two independent thermally controlled ultra quiet Note: While the AT7000 Series amplifiers use fans , it computer fans. is imperative that the amplifier be operated in a well- ventilated environment and that the immediate external This AT7000 amplifier has been put through a rigorous temperature be maintained as specified. -
Page 5: Owner's Guide Conventions
AT7000 amplifiers. The kit is available in black and silver to match the handles to the front panels. The kit is available separately for an additional charge and in- clude instructions and hardware for proper mounting of the parts to the amplifier. To order, call your dealer or ATI and order SKU # / Model “AB-RK22-L”. -
Page 6: Rear Panel Layout
Rear Panel Layout E. Chassis Ground Terminal A. Zone (RCA) Audio Inputs Use the Zone Input jacks to connect a source from Use to connect to other chassis where necessary. the remote zone or a zone controller / pre-amp. F. Circuit Breaker B. -
Page 7: Connecting Your Amplifier
Correct polarity of connections are important to main- Connecting Your Amplifier tain proper speaker phasing. When speaker phasing is When making connections between any source compo- correct, all speakers move in and out at the same time, nents and the amplifier, or when making connections to preserving the imaging of the program material. -
Page 8: Power Connections
jack, it is still possible to activate the unit for automatic turn on your amplifier LAST. This avoids the possibil- turn on when a Switched Outlet is available on the rear ity of any turn on pops or transients from other equip- of the source device. -
Page 9: Ati Service Information
Potential Ground Loops ATI Service Information in a Complex A/V System The AT7000 series does not contain any user servicea- ble parts inside. If you suspect a problem that may re- Suggestion #1: quire service assistance, contact us at support@ati- To determine if a cable TV connection is responsible amp.com, or by phone at 323-278-0001. - Page 10 pipes were often used for the earth ground, so it is im- portant to make sure that your ground connection is still valid and has not become loose or corroded. The cold water pipe method may no longer be valid in some locations due to requirements that the water meter be isolated from the water mains with a length of PVC pipe, thus interrupting the ground circuit.
-
Page 11: Appendix A - Troubleshooting Guide
Appendix A - Troubleshooting Guide Your ATI amplifier is designed for trouble free operation. If you follow the instructions in this manual you should enjoy many years of high quality listening enjoyment. However, as with any sophisticated electronic device, there may be oc- casional problems upon initial installation, or during the life of the unit. -
Page 12: Appendix B - Specifications
Appendix B - Specifications (Specifications subject to change without notice) Zone - One Stereo Pair of Single-ended (RCA) jacks Analog Audio Inputs Bus - One Stereo Pair of Single-ended (RCA) jacks Toggle Switch to choose between LOCAL and BUS Input jacks Input Impedance 20 kΩ... -
Page 13: Appendix C - Power Requirements & Consumption
Appendix C - Power Requirements & Consumption 117V AC (90V-132V) or 230V (200V-260V); 50/60 Hz Power Requirements Amplifier automatically selects proper voltage range Less than 1W at Standby; 2400W maximum Power Consumption AT7012 AT7016 Standby <1 Watts Idle @ Rated Power (8Ω) 775W 1000W Per 3 Zone Bank... -
Page 14: Warranty Information
90-Day Limited Warranty Transferability Terms and Conditions The above warranties are transferable to subsequent owners as (7-Year Optional Extended Warranty) long as all of the conditions are met under the Optional Extend- ed Warranty Program. The warranty is not transferable if the This ATI product is warranted against defects in materials and unit was originally purchased from an unauthorized seller.
