DISTRIBUTION AMPLIFIERS OPERATING AND MAINTENANCE MANUAL © Copyright 2018, ATI is a registered trademark of DaySequerra Corp. www.atiaudio.com 7209 Browing Road DaySequerra Pennsauken, NJ 08109 sales@daysequerra.com www.atiaudio.com... -
Page 2: Product Description

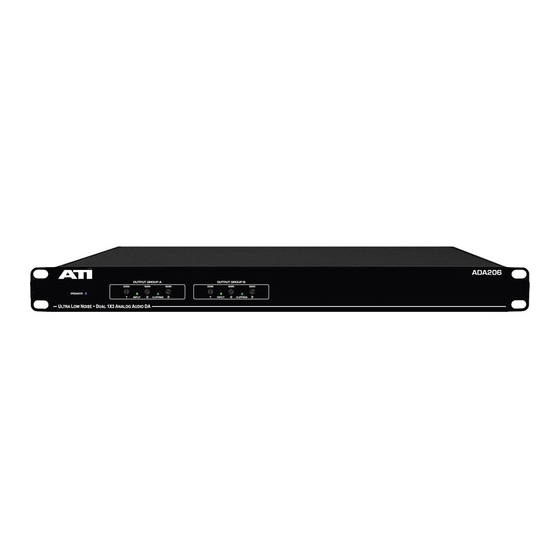

PRODUCT DESCRIPTION The ADA206XLR, ADA208XLR and ADA412XLR Analog Audio Distribution Amplifiers provide two (206) or four (412) 1X3 distribution amplifier channels, and two (208) 1x4 distribution amplifier channels, with balanced inputs and outputs. A master, gain adjustment for each channel controls all three outputs together to adjust for varying inputs, while individual trimmers for each output allow adjustment over a 20dB range to accommodate 10dbu semi-pro up to +8dBm line levels. -
Page 3: Installation
INSTALLATION The ADA is designed for rack mounting on standard EIA 1-3/4 inch centers. Each unit dissipates approximately 10 watts and is designed for use in an office environment. Avoid excessive heat buildup (such as might be due to nearby power amplifiers in unventilated racks) to ensure maximum component life. - Page 4 VAC in the range of 85 – 264 VAC. UL LISTING The ADA206XLR, ADA208XLR and ADA412XLR are listed by Underwriter Laboratories as “Listed Professional Audio Equipment 2D65.” www.atiaudio.com...
-
Page 5: Product Specifications
PRODUCT SPECIFICATIONS OUTPUT LEVEL: +22dBm peak into 600 ohm balanced load, +18dBm peak, typical, into unbalanced loads DISTORTION: THD .10% maximum, 20 to 20,000Hz at peak output, IMD .05% maximum, SMPTE measurement SLEW RATE: 13 Volts per microsecond RESPONSE: ± .25dB, 20 to 20,000Hz NOISE: -95dBm out at maximum gain, 20kHz bandwidth GAIN: 40dB maximum CROSSTALK: 70dB minimum at 10kHz, any path... - Page 6 SHIPPING WEIGHT & DIMENSION: 12 lbs. (5.5kg), 22”x12”x5” MODELS AVAILABLE: ADA206XLR Dual 1X3 Active balanced outputs, ADA412XLR Quad 1X3 Active balanced outputs, ADA208XLR Dual 1X4 Active balanced outputs ADA206XLR ADA208XLR ADA412XLR www.atiaudio.com 7209 Browing Road DaySequerra Pennsauken, NJ 08109 sales@daysequerra.com...
-
Page 7: One-Year Limited Warranty
ONE YEAR LIMITED WARRANTY ATI warrants this product to be free from defects in materials and workmanship to its original owner for a period of one year from date of purchase. ATI will repair or replace such product or part thereof, which upon inspection by ATI, is found to be defective in materials or workmanship. - Page 8 ATI DISCLAIMS ANY WARRANTIES, EXPRESS OR IMPLIED, WHETHER OF MERCHANTABILITY OF FITNESS FOR A PARTICULAR USE, EXCEPT AS EXPRESSLY SET FORTH HEREIN. THE SOLE OBLIGATION OF ATI UNDER THIS LIMITED WARRANTY SHALL BE TO REPAIR OR REPLACE THE COVERED PRODUCT, IN ACCORDANCE WITH THE TERMS SET FORTH HEREIN.
- Page 9 www.atiaudio.com 7209 Browing Road DaySequerra Pennsauken, NJ 08109 sales@daysequerra.com www.atiaudio.com...
