6. Installation of lifting station

6.1 General description

Before installing the Multilift MSS lifting station, make sure that all
local regulations covering venting, access to the stations, etc. are
observed.

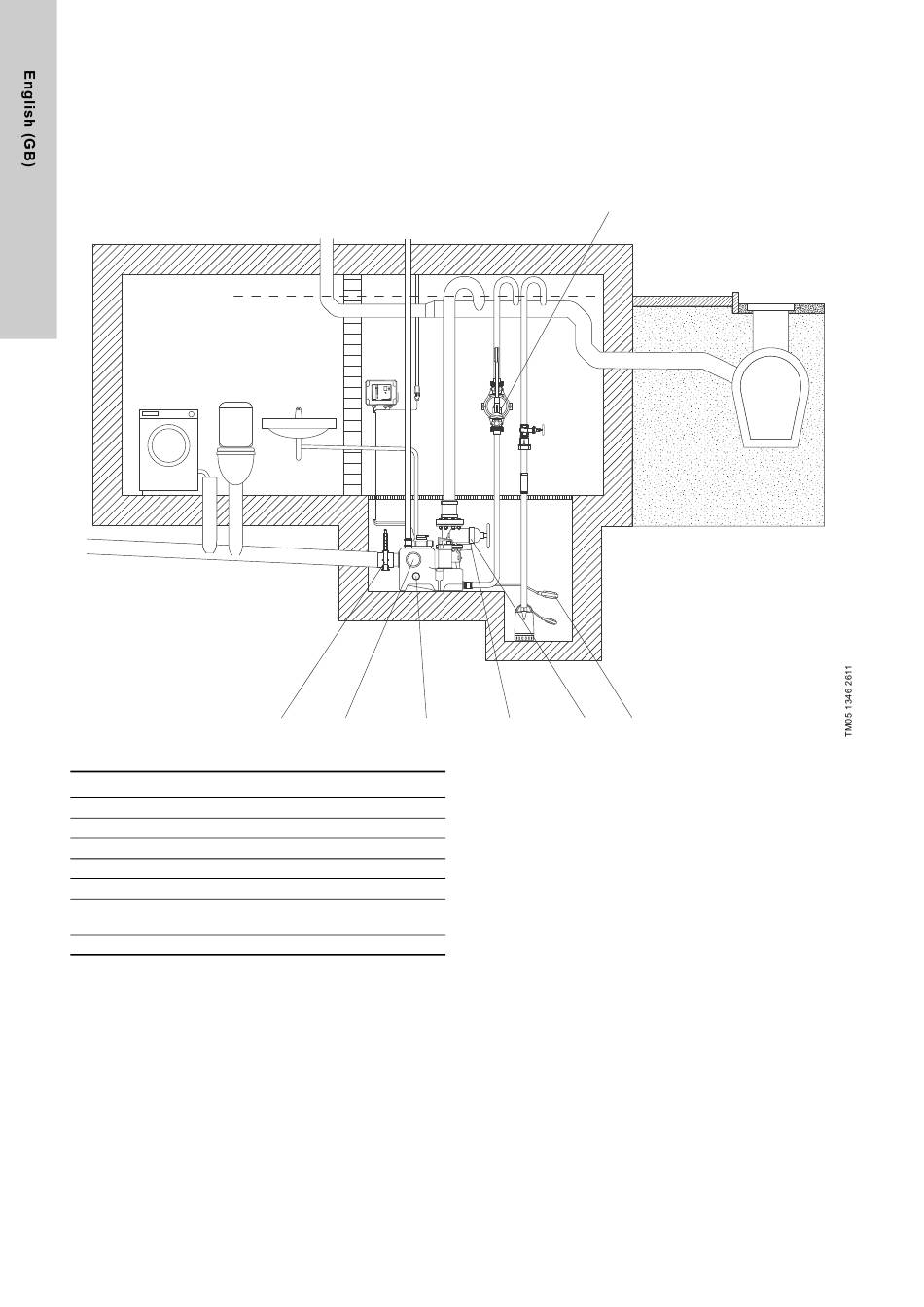

6.1.1 Installation sketch
Fig. 10 Installation sketch
Pos. Accessories
1 Socket seal, DN 100
2 Socket seal, DN 50
3 Diaphragm pump, 1 1/2"
4 PVC isolating valve, DN 100
5 Cast iron isolating valve, DN 80
Gasket kit, DN 80, with bolts, nuts
6
and washers
7 External float switch
12
4 1 2
Product number
97726942
98079669
96003721
96615831
96002011
96001999
00ID7805
3
6 5 7
