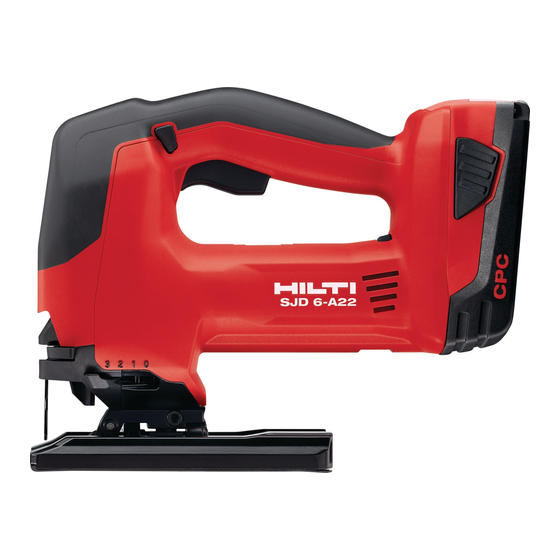

Hilti SJD 6-A22 Original Operating Instructions

Orbital-action jig saw
Hide thumbs Also See for SJD 6-A22:
Table of Contents

Advertisement

Quick Links

English
1
SJD 6-A22
‫ת י‬
‫ר ב‬
‫ע‬
13

Advertisement

Table of Contents
loading

Related Manuals for Hilti SJD 6-A22

Summary of Contents for Hilti SJD 6-A22

  • Page 1 English SJD 6-A22 ‫ת י‬ ‫ר ב‬ ‫ע‬...
  • Page 5 SJD 6-A22 Original operating instructions ........

  • Page 7: Information About The Documentation

    Original operating instructions Information about the documentation About this documentation • Read this documentation before initial operation or use. This is a prerequisite for safe, trouble-free handling and use of the product. • Observe the safety instructions and warnings in this documentation and on the product. •...
  • Page 8 The type designation and serial number are printed on the type identification plate. ▶ Write down the serial number in the table below. Always quote this information when you contact a Hilti representative or Hilti Service to inquire about the product.
  • Page 9 Electrical safety ▶ Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. ▶ Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators.
  • Page 10 Battery tool use and care ▶ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. ▶ Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
  • Page 11 Allow the battery to cool down. If it is still too hot to touch after an hour, the battery is faulty. Contact Hilti Service. Description...
  • Page 12 ▶ Use only Hilti Li­ion batteries of the B 22 series with this product. ▶ Use only Hilti battery chargers of the C4/36 series to charge these batteries. ▶ Use this product only with saw blades equipped with a T-shank.

  • Page 13: Technical Data

    SJD DRS-6A dust removal module (accessory) The SJD DRS­6A dust removal module is an accessory for the Hilti SJD 6-A22 orbital-action jig saw. It collects a high percentage of the dust generated and can be quickly and easily attached to the orbital- action jig saw.

  • Page 14: Preparations At The Workplace

    Identify additional safety measures to protect the operator from the effects of noise and/or vibration, for example: maintaining the power tool and accessory tools, keeping the hands warm, organization of work patterns. Noise emission values SJD 6-A22 Sound power level (L 98 dB(A) Uncertainty for the sound power level (K...

  • Page 15: Operation

    Removing the battery 1. Press the battery release buttons. 2. Remove the battery from the tool. Fitting the saw blade 1. Remove the battery. 2. Push the saw blade (teeth facing the cutting direction) into the blade holder until it engages. 3.

  • Page 16: Care And Maintenance

    To help ensure safe and reliable operation, use only genuine Hilti spare parts and consumables. Spare parts, consumables and accessories approved by Hilti for use with the product can be found at your local Hilti Store or online at: www.hilti.group.

  • Page 17: Transport And Storage Of Cordless Tools

    ▶ Check the tool and batteries for damage before use after long periods of storage. Troubleshooting If the trouble you are experiencing is not listed in this table or you are unable to remedy the problem by yourself, please contact Hilti Service. Trouble or fault Possible cause Action to be taken The saw blade drops out.

  • Page 18: Rohs (Restriction Of Hazardous Substances)

    ▶ Cover the terminals with a non-conductive material (such as electrical tape) to prevent short circuiting. ▶ Dispose of your battery out of the reach of children. ▶ Dispose of the battery at your Hilti Store, or consult your local governmental garbage disposal or public health and safety resources for disposal instructions.
  • Page 19 ‫ת ו‬ ‫י ר‬ ‫ו ק‬ ‫מ‬ ‫ה‬ ‫ל‬ ‫ע‬ ‫פ‬ ‫ה‬ ‫ת‬ ‫ו א‬ ‫ר‬ ‫ו ה‬ ‫ד‬ ‫ו ע‬ ‫י ת‬ ‫ה‬ ‫ל‬ ‫ע‬ ‫ם‬ ‫י נ‬ ‫ו ת‬ ‫נ‬ ‫ה ז‬ ‫ד‬ ‫ו ע‬ ‫י ת‬ ‫ת‬ ‫ו...
  • Page 20 ‫ו מ‬ ‫ש‬ ‫י‬ ‫נ כ‬ ‫ט‬ ‫ה‬ ‫ד‬ ‫ו ע‬ ‫י ת‬ ‫ה‬ Hilti Entwicklungsgesellschaft mbH | Zulassung Geräte | Hiltistraße 6 | 86916 Kaufering, Germany ‫ת‬ ‫ו ח‬ ‫י ט‬ ‫ב‬ ‫ם י‬ ‫י ל‬ ‫מ‬ ‫ש‬ ‫ח‬...
  • Page 21 ‫ל ב‬ ‫כ ב‬ ‫ש‬ ‫ו מ‬ ‫י ש‬ ‫. י נ‬ ‫ו צ‬ ‫י ח‬ ‫ש‬ ‫ו‬ ‫מ י‬ ‫ש‬ ‫ל‬ ‫ד‬ ‫ע ו‬ ‫י מ‬ ‫ה‬ ‫ך‬ ‫י ר‬ ‫א‬ ‫מ‬ ‫ל ב‬ ‫כ‬ ‫ב‬ ‫ק‬ ‫ר‬ ‫ש‬ ‫מ‬...
  • Page 22 ‫ת ו‬ ‫ל ל‬ ‫ו ס‬ ‫ן‬ ‫ו ע‬ ‫ט‬ ‫ל‬ ‫ו א‬ ‫ש‬ ‫מ‬ ‫ת‬ ‫ש‬ ‫ה ל‬ ‫ן א‬ ◀ Hilti ‫ל‬ ‫ש‬ ‫ת ו‬ ‫ר י‬ ‫ש‬ ‫ה‬ ‫ם‬ ‫ע‬ ‫ק‬ ‫י פ‬ ‫ס‬ ‫מ‬ ‫ק‬ ‫ו ח‬...
  • Page 23 ‫ע ל‬ ‫ך ר‬ ‫ו צ‬ B 22 ‫ם‬ ‫י מ‬ ‫ג‬ ‫ד ה‬ ‫ת‬ ‫ר‬ ‫ד ס‬ ‫מ‬ Hilti ‫ל‬ ‫ש‬ ‫ן ו י‬ ‫ם ו‬ ‫י ת‬ ‫י ל‬ ‫ת ו‬ ‫ל ל‬ ‫ו ס‬ ‫ב‬ ‫ק ר‬...
  • Page 24 ‫ע נ‬ ‫מ נ‬ ‫ר ז‬ ‫י ב‬ ) ‫א‬ SJD DRS-6A ‫ק‬ ‫ב‬ ‫א‬ ‫ל‬ ‫ו ד‬ ‫ו מ‬ 3.11 SJD 6-A22 ‫ם‬ ‫ג ד‬ Hilti ‫ל‬ ‫ש‬ ‫י כ‬ ‫נ א‬ ‫ה‬ ‫ר‬ ‫ו ס‬ ‫מ‬ ‫ה‬ ‫ר‬...
  • Page 25 ‫ט‬ ‫ם‬ ‫י נ‬ ‫ו ת‬ ‫נ‬ ‫ל‬ ‫ד נ‬ ‫פ‬ ‫י כ‬ ‫נ א‬ ‫ר‬ ‫ו ס‬ ‫מ‬ SJD 6-A22 ‫ט‬ ‫ל ו ו‬ 21.6 ‫ב ו‬ ‫ק נ‬ ‫ח‬ ‫ת‬ ‫מ‬ ‫ג‬ ‫" ק‬ B22⁄8.0 ‫ה‬ ‫ל ל‬...
  • Page 26 ‫ה‬ ‫ד‬ ‫ו ב‬ ‫ע‬ ‫ל‬ ‫ה‬ ‫נ כ‬ ‫ה‬ ‫ת ו‬ ‫ר י‬ ‫ה ז‬ ‫! ג‬ ‫ג ו‬ ‫ש‬ ‫ב‬ ‫ה‬ ‫ע‬ ‫ו נ‬ ‫ת‬ ‫ת‬ ‫ל‬ ‫ח‬ ‫ת‬ ‫ה‬ ‫ב‬ ‫ק‬ ‫ע‬ ‫ה‬ ‫ע‬ ‫י צ‬ ‫פ‬ ‫ת‬...
  • Page 27 ‫ה‬ ‫ק‬ ‫ל ד‬ ‫ה‬ ‫. ה‬ ‫ל ל‬ ‫ו ס‬ ‫ה‬ ‫ת‬ ‫א‬ ‫ר ב‬ ‫ח‬ ‫ת‬ ‫א‬ ‫ם י‬ ‫ר ב‬ ‫ח‬ ‫מ‬ ‫ז א‬ ‫ק ר‬ ‫ו ר‬ ‫י ש‬ ‫כ‬ ‫מ‬ ‫ה‬ ‫ת‬ ‫א‬ ‫ם‬ ‫י ל‬ ‫י...
  • Page 28 ‫פ‬ ‫ה‬ ‫ך‬ ‫ר ו‬ ‫צ ל‬ www.hilti.group ‫: ת‬ ‫ב‬ ‫ו ת‬ ‫כ ב‬ ‫ו א‬ ‫ך ל‬ ‫ש‬ Hilti Store ‫- ב‬ ‫א‬ ‫צ‬ ‫מ‬ ‫ת‬ ‫ך ל‬ ‫ש‬ ‫ר צ‬ ‫ו מ‬ ‫ה‬ ‫ר‬ ‫ו ב‬ ‫ע‬...
  • Page 29 ‫א‬ ‫ה‬ ‫ר ו‬ ‫ז ח‬ ‫י מ‬ ‫ה‬ ‫ת‬ ‫ר ב‬ ‫ח‬ ‫ל‬ ‫ה‬ ‫נ פ‬ ‫ו א‬ Hilti Store ‫- ב‬ ‫ה‬ ‫ל ל‬ ‫ו ס‬ ‫ה‬ ‫ת‬ ‫א‬ ‫ק ל‬ ‫ס‬ ◀ ‫! ת‬ ‫י ת‬ ‫י ב‬...
  • Page 30 ‫ת י‬ ‫ר ב‬ ‫ע‬ 2150253 2150253...
  • Page 32 *2150253* 2150253 Hilti = registered trademark of Hilti Corp., Schaan Pos. 2 | 20200506...
