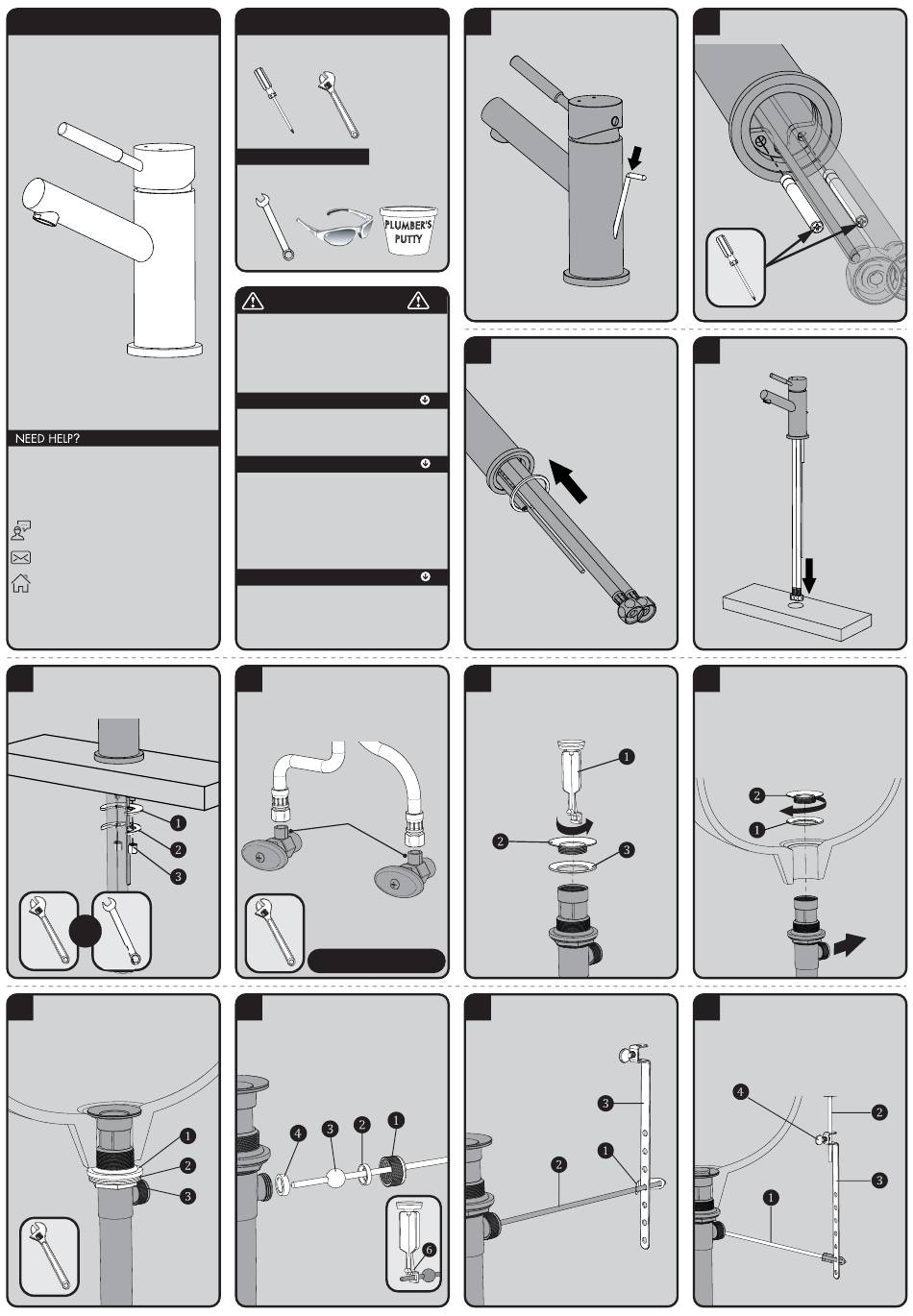

Speakman SB-1003 Instructions

INSTRUCTIONS FOR MODELS
SB-1003
SB-1003-E
For additional assistance or service please contact:
SPEAKMAN
®
Company
400 Anchor Mill Road
New Castle, DE 19720
800-537-2107
customerservice@speakman.com
www.speakman.com
92-SB-1003-R2
5
From below, install Rubber Washer (1), Metal
Washer (2), and secure with Mounting Nuts (3).
Align Faucet to desired position and wrench
tighten Mounting Nuts (3).
OR
9
From beneath, secure Rubber Washer (1), Plastic
Washer (2), and Mounting Nut (3). Wrench
tighten.
TOOLS AND SUPPLIES
Phillips Adjustable
Screwdriver Wrench
HELPFUL TOOLS & SUPPLIES:
10mm Safety Plumber's
Wrench Glasses Putty

IMPORTANT

• Do not over-tighten any connections or damage
may occur.
• Be sure to read instructions thoroughly before
beginning installation.
• This faucet has an operating range of 20-80 psi.

SAFETY TIPS

Cover your drain to prevent loss of parts. Be sure to
wear eye protection while cutting pipe.

MAINTENANCE

Your new Speakman Product is designed for years of
trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. The use of harsh
chemicals and abrasives may damage the finish and
void the product warranty. Please be sure to only use
approved cleaners. Please contact Speakman for any
clarification of acceptable cleaners.

WARRANTY

Additional warranty information can be found at:
www.speakman.com
6
Make connections to water supplies. The inlet
threads of the faucet are 9/16"-24 UNF and will
accept a 3/8" Compression Fitting. Wrench
Tighten.
Accepts a 3/8"
Compression
Fitting
SUPPLY STOPS NOT INCLUDED
10
Remove Pivot Nut (1), from Drain Assembly.
Install Outer Pivot Washer (2), and Pivot Rod (3).
Ensure that Inner Pivot Washer (4) is retained in
Drain Assembly. Insert Pivot Rod into Drain
Assembly and install Stopper (6) as non-remov-
able. Secure Pivot Rod to Drain Assembly by
tightening Pivot Nut (1).
1
Insert Lift Rod thru hole at rear of Faucet.
3
Place Rubber Gasket over Hoses and align to
base of Faucet.
7
Remove Stopper (1), Flange Nut (2), and Flange
Washer (3) from Drain Assembly.
11
Place one end of Spring Clip (1), on Pivot Rod
(2). Insert Pivot Rod (2) thru a hole in the Lift Rod
Strap (3). Secure with Spring Clip (1).
2
Thread Mounting Studs into base of Faucet.
Tighten with Phillips Screwdriver.
4
Place Hoses, one at a time, thru hole in
mounting surface. Lower Faucet into position.
8
From beneath, insert Drain Assembly thru drain
hole in sink. Attach supplied Flange Washer (1)
or plumber's putty to the underside of the Flange
(2). Secure Flange (2) to the Drain Assembly.
Align the Drain Assembly as shown below.
Align towards faucet.
12
Place Drain into the open position by pressing
downward on the Pivot Rod (1). Insert Lift Rod
(2) into Strap (3). Adjust height of Lift Rod (2),
and tighten Thumb Screw (4).
