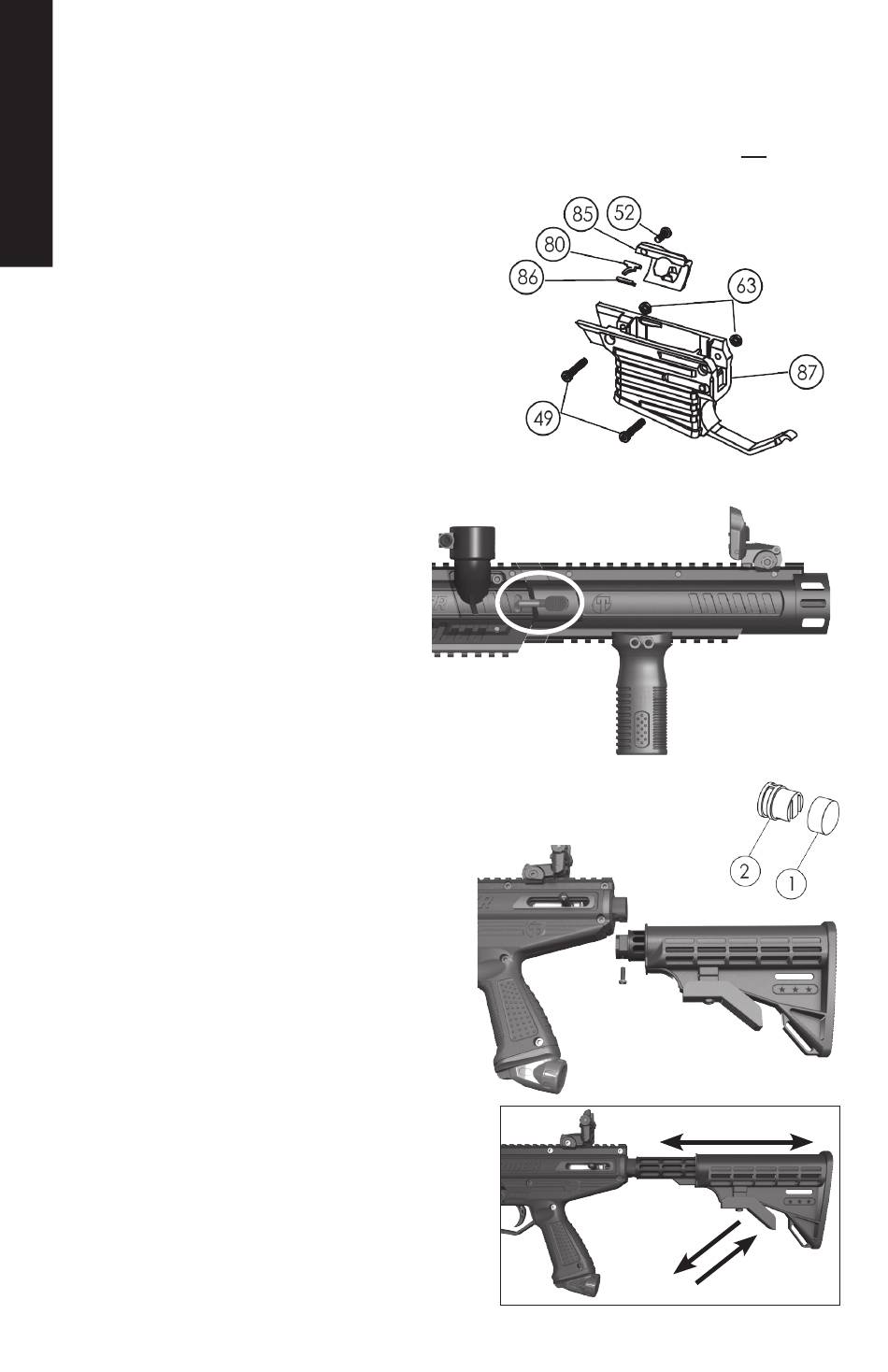

Magazine Well

G
1. Replace the Hopper Feed Tube with the Mag Fed Cover Plate (85). This Cover
Plate contains the Ball Latch (80). The Ball Latch can be removed for replacement.
L
The Mag Fed Ball Latch is different from the Loader Fed Ball Latch. They are not
I
interchangeable. The Ball Latch Retaining Plate (86) holds the Ball Latch in place.
S
2. The Cover Plate is secured by Screw (52).
H
3. Remove the
Assembly
Disassembly.
4. Install the
hooked part of the trigger guard into the grip,
and rotate the assembly up to the marker.
Secure to the marker with
5. When the Magazine is in the Magwell, it is
released by the
for reloading. The release is spring-assisted so
it quickly ejects the Magazine from the magazine well.

Barrel Shroud

The Barrel Shroud can be installed on either
the Hopper-fed marker or the Magazine-fed
marker. Slide the Shroud over the Barrel and
push towards the Receiver until you hear
a click. The click sound is from the Shroud
Latch securing to the Receiver (circled at right).
To remove the Shroud, press the thumbpad to disengage the latch.
Slide the Shroud off of the Barrel.

Front Grip

The Front Grip (65) can be installed to any
Picatinny Rail using two 10-32 Screws (66).

Adjustable Stock

1. If present on your marker, remove the End
Cap Cover (1) from the End Cap (2).
2. Find a 10-32 x 1/2" screw (B) in the
Accessory Pack.
3. Insert the Stock into the slots on the End
Cap of the marker (A).
4. Insert and tighten the screw (B).
Length Adjustment
1. Squeeze the Adjustment Lever.
2. Slide the Stock together or apart to the desired
length.
3. Release the Adjustment Lever.
14
Lower Grip Frame/Guard
(87) as described in step 3 under
Magwell & Guard
Screws
Magazine Release Button
(89). Place the
(49).
A
B
2
3
1
