BAYTEK GAMES SQUIGGLE Service Manual page 24

12/5 VOLT FROM POWER DISTRIBUTION BOARD
12 / 5 VOLT FROM POWER DISTRIBUTION BOARD
Marquee
Illumination
AAMO6500
Left Motor
Ohms vary from
7 to 220, 12 Volts
DC when running
AACE6520
Gold
Connectors
Top of the game
Bottom of the game
AACE6513
AACB9600
Audio Amplifier
AACE6502

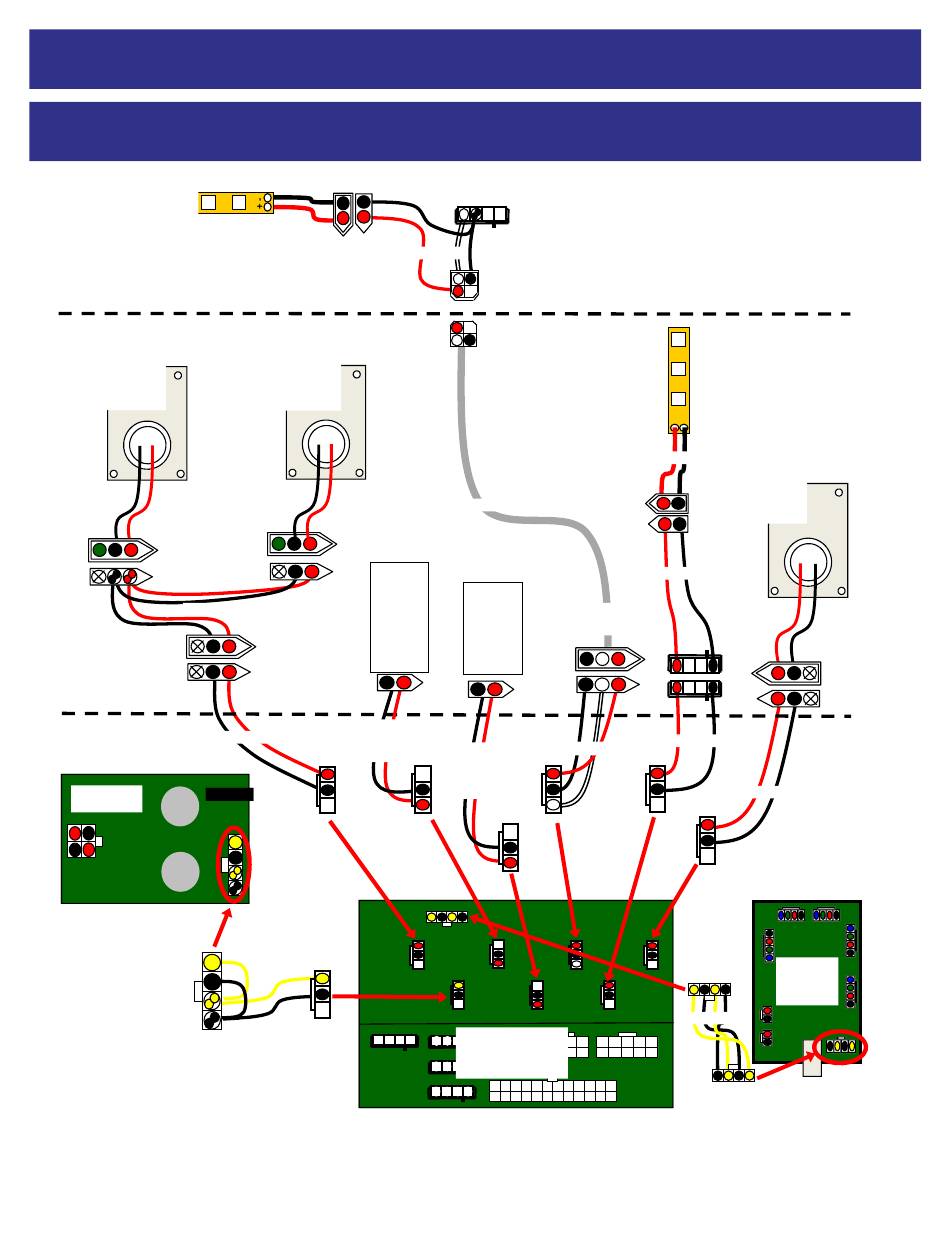

WIRING DIAGRAM
WIRING DIAGRAM
AACE6542
AACE6533
Marquee of the game
Top of the game
AAMO6500
Right Motor
Ohms vary from
7 to 220, 12 Volts
DC when running
To
AACE6524
Middle
Track
LED's
White
Connector
AACE6507
5 Volts DC to
Middle Track LED's
5 VDC from Power
Supply to Display Driver
Board in marquee
AACE6500
To
AACE6519
Yellow
Outside
Connectors
LED's
Pink
Connector
AACE6500
AACE6507
5 Volts DC to
Top Outside
LED's
AACB5156
Power Dist.
Board
24
AACE6561
Red Ball Display
Area LED's
+ -
AAMO6500
AACE6561
Lower Motor
Ohms vary from
7 to 220, 12 Volts
DC when running
AACE6560
4 3 2 1
AACE6560
AACE6512
AACB6502
RGB Control
Lights
AACE6506
No Color
Connector
