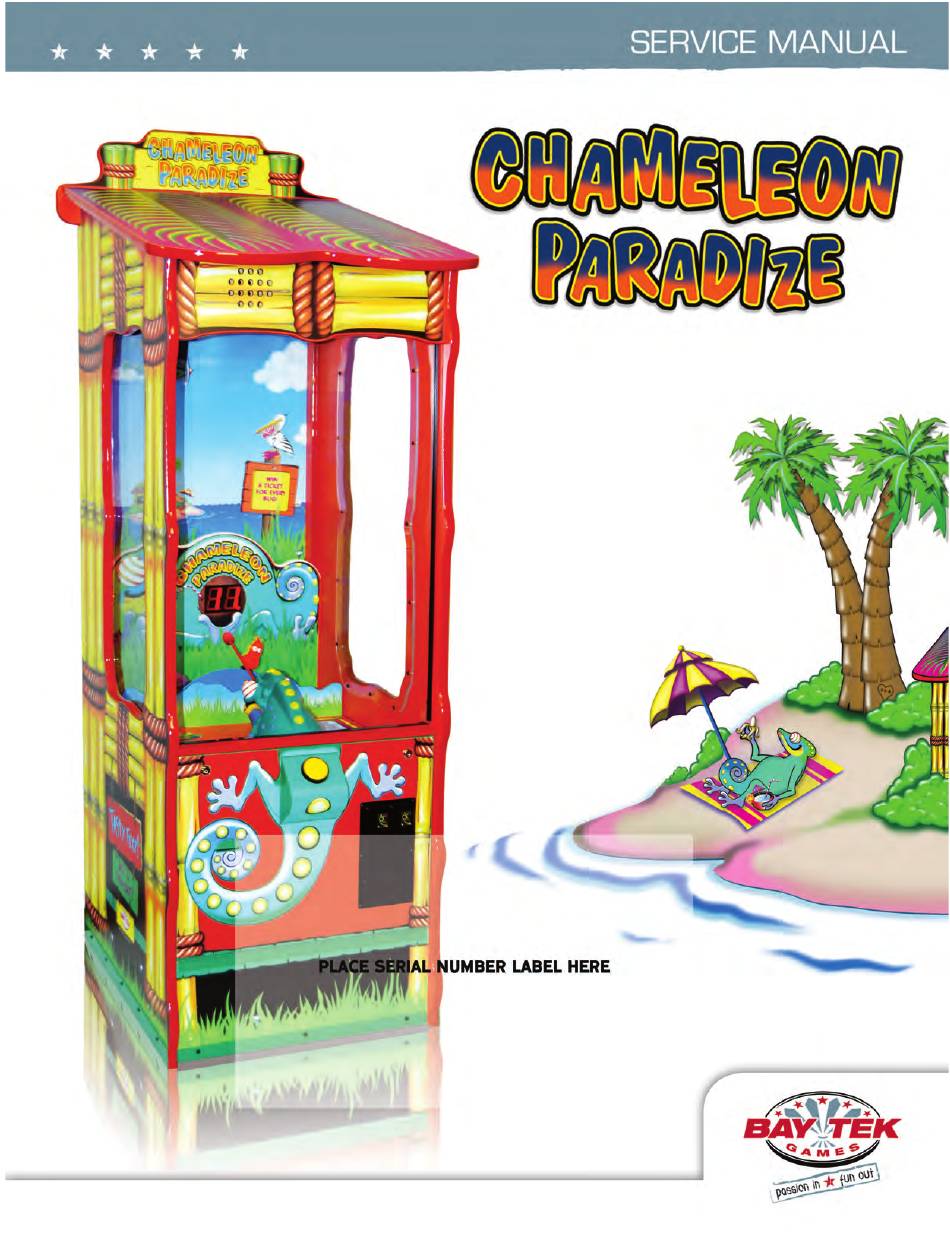

BAYTEK GAMES CHAMELEON PARADIZE Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CHAMELEON PARADIZE and is the answer not in the manual?

Questions and answers

Related Manuals for BAYTEK GAMES CHAMELEON PARADIZE

Summary of Contents for BAYTEK GAMES CHAMELEON PARADIZE

  • Page 2: Factory Contact Information

    FACTORY CONTACT INFORMATION BAY TEK GAMES INC. Pulaski Industrial Park 1077 East. Glenbrook Drive Pulaski, WI 54162 USA JOIN OUR SERVICE FIRST NETWORK! Scan here! This free service is intended to keep you up to date on the latest game information, early notification of parts specials, pertinent technical bulletins, updates on retro fit parts, software upgrades, and much more.

  • Page 3: Table Of Contents

    FACTORY CONTACT INFORMATION ......2 WELCOME TO: CHAMELEON PARADIZE ......4 HOW TO PLAY .

  • Page 4: Welcome To: Chameleon Paradize

    WELCOME TO: CHAMELEON PARADIZE Congratulations on your Chameleon Paradize purchase! Chameleon Paradize is a single-player game with an exciting island theme. Players press the button on the Chameleon’s butt to activate his tongue, eating as many “Tasty Flyz” as they can to win tickets.

  • Page 5: How To Play

    HOW TO PLAY Hit the lizard on the butt Make his sticky tongue shoot So he eatz those pesty crickitz Then he poops a lot of ticketz!

  • Page 6: Specifications

    GAME SPECIFICATIONS POWER REQUIREMENTS WEIGHT INPUT VOLTAGE 100 to 120 220 to 240 NET WEIGHT 260 lbs. RANGE SHIP WEIGHT 300 lbs. INPUT FREQUENCY 50 HZ 60 HZ RANGE DIMENSIONS MAX START UP OPERATING WIDTH 29” CURRENT CURRENT 1.5 AMPS @ 115 VAC 0.7 AMPS @ 115 VAC DEPTH 38”...

  • Page 7: Dip Switch Settings

    DIP SWITCH SETTINGS The dip switch bank is located on the mainboard, inside the front door of the game. *factory default settings are highlighted below SWITCH DESCRIPTION not used Jersey Shore Coin / DBA Lockout & Tickets / Credits Owed OFF: Targets Counted (Ticket Patterns 0, 6-13) ON: Timed Game (Ticket Patterns 0, 1-5) not used...

  • Page 8: Main Menu Functions

    MAIN MENU FUNCTIONS 1. Press the “MENU” button and hold for 3 seconds to enter the menu 2. Scroll through the options with the “SELECT” button 3. Make your selection with the “MENU” button and scroll through each sub-menu’s options 4.
  • Page 9 N1- COINS/CREDITS PER PLAY Scroll through the N1 menu with the “MENU” button. Make your selection with the “SELECT” button. The factory settings are highlighted below. N2- GAME VOLUME Scroll through the N2 menu with the “MENU” button. Make your selection with the “SELECT” button. The factory settings are highlighted below.
  • Page 10 N5- TICKET PATTERNS Scroll through the N5 menu with the “MENU” button. Make your selection with the “SELECT” button. The factory settings are highlighted below. TICKETS OFF (Works with DIP 3 set to OFF or ON) OPTION 0: *OPTION 1: 1 TICKET PER BUG (DEFAULT if DIP 3 is ON) *OPTION 2: 1 TICKET PER 2 BUGS...
  • Page 11 N5- TICKET PATTERNS, cont. 20 BUGS: 30 BUGS: TICKETS: OPTION 9: 6-13 6-9 AVG.TIX 10-13 14-23 14-19 24-29 20 BUGS: 30 BUGS: TICKETS: OPTION 10: 6-13 10-13 AVG. TIX 10-13 14-23 14-19 24-29 20 BUGS: 30 BUGS: TICKETS: OPTION 11: 6-13 15-18 AVG.
  • Page 12 N6- MERCY TICKETS Scroll through the N6 menu with the “MENU” button. Make your selection with the “SELECT” button. The factory settings are highlighted below. This setting will cause the game to dispense the selected amount of tickets in the case that the player scores 0 points in a game.
  • Page 13 N9- STORED CREDITS/ TICKETS OWED Scroll through the N9 menu with the “MENU” button. Make your selection with the “SELECT” button. The factory settings are highlighted below. This setting will cause the game to “remember” stored credits and tickets owed in the case of a power loss or game shutdown.
  • Page 14 N12- WHEEL SPEED-UP Scroll through the N12 menu with the “MENU” button. Make your selection with the “SELECT” button. The factory settings are highlighted below. OFF (no wheel speed changes) 4+ bugs hit in first 8 sec.; speeds up by 20% for half of game Random- increasing/decreasing *Option 2 does not apply when DIP 3 is set to ON.
  • Page 15 N15- GAME STATISTICS Scroll through the N15- menu with the “MENU” button. Make your selection with the “SELECT” button. The factory settings are highlighted below. The game statistics will scroll through on the display in numerical order. TOTAL GAMES PLAYED TOTAL TICKETS DISPENSED AVERAGE TICKETS PER GAME SCORING BUCKET 1...

  • Page 16: Game Time

    N17- DIAGNOSTICS The following chart lists the symbol shown on the display when each individual input, sensor or switch is activated in diagnostics mode. If more than one input is activated, the symbols will alternate on the display. Input/ Sensor/ Switch Display Bug Score Sensor Wheel Sensor...
  • Page 17 MAINBOARD PINOUT...
  • Page 18 MAINBOARD PINOUT GUIDE BayTek Chameleon Paradize Single Player NEWGEN1 Hardware REV D Pinout - Version 1 =Low Side Driver Pin Type Purpose Pin # LOWSIDE #1,w diod =High Side Driver Mechanical Count #1 LOWSIDE #2, w diod = TTL Input/Output...
  • Page 19 MAIN BOARD PINOUT...
  • Page 20 FRONT DOOR WIRING...
  • Page 21 SENSORS AND MOTORS WIRING...
  • Page 22 POWER SUPPLY AND LED WIRING...
  • Page 23 DISPLAY & SPEAKER WIRING...

  • Page 24: Troubleshooting Guide

    TROUBLESHOOTING GUIDE...
  • Page 25 TROUBLESHOOTING GUIDE...
  • Page 26 TROUBLESHOOTING GUIDE...
  • Page 27 TROUBLESHOOTING GUIDE Symptom Probable Cause Remedy An extra Dot on Display Board. The Dot means low Refer to Lo (Low Tickets) in Error Code tickets. Section. Part of a display is not showing Segment faulty. Replace display board. (AABD4208) Refer to Display & Speaker Wiring Diagram. Communication problem with main board.
  • Page 28 ERROR CODES Part of start up diagnostics. At power up: Leave game for up to 10 minutes. 1.) Tongue motor cycles – finds Error 88 will clear, though a new error may be displayed. home. 2.) Bug wheel spins – calibrates speed.
  • Page 29 POWER SUPPLY DIAGNOSTICS DIAGNOSE POWER SUPPLY 12 Volt DC Out Check the small green LED light on the power supply circuit board. If the light is out there is a short some- where. If the light dims, there is an overload in one of the circuits such as a bad motor.

  • Page 30: How To: Remove Wheel

    HOW TO: REMOVE WHEEL...

  • Page 31: How To: Access Tongue Motor & Sensor

    HOW TO: ACCESS TONGUE MOTOR AND SENSOR...

  • Page 32: How To: Remove Chameleon

    HOW TO: REMOVE CHAMELEON ASSEMBLY...
  • Page 33 PARTS PICTURES A5BU1200 A5BU1201 A5AC1202 2W500 AALI1200 A5MO1201 A5MO1200 A5PB7300 A5PS1001 A5NEWGEN1 AABD5010 AADB4208 AASW200 A5TD1 A5CB2050 A5CORD5 A5FI9010 AACBL4A-DOOR AACE1251 AACE1250 AACE1252 AACE1253 AACE1254 AACE1258 AACE8811 AACE1260 AACE1259 AACE1257 AAPB2700...
  • Page 34 PARTS PICTURES...

  • Page 35: Decal Identification

    DECAL IDENTIFICATION A5DC1200_S_TopBack A5DC1201_S_RoofTop A5DC1203_S_TopFront A5DC1218_SideR A5DC1223_S_InsideTop (not shown) A5DC1214_S_TopDoorBack A5DC1217_SideL (not shown) A5DC1210_S_Playfield A5DC1208_ChameleonBoardL (not shown) A5DC1202_WheelDecal A5DC1209_ChameleonBoardR (not shown) A5DC1219_WheelFront A5DC1212_ButtonFace A5DC1216_FrontDoor A5DC1204_S_BottomFront (not shown) A5DC1211_MotorCover A5DC1222_WarningDecal A5DC1220_BugStabilizer A5DC1224_MenuDecal A5DC1225_S_DefaultTix...

  • Page 36: Maintenance Log

    MAINTENANCE LOG If repairs are necessary, it is good practice to keep a log of repairs done and parts ordered. The chart below will assist you in tracking your game’s maintenance. DATE MAINTENANCE PERFORMED PARTS ORDERED INITIALS...

  • Page 37: Technical Support

    TECHNICAL SUPPORT Excellent customer service is very important to Bay Tek Games! We know that keeping your games in great operating condition is important to your business. When you need us, we are here to help. You can call us for free technical assistance, and you can count on us to have parts on-hand to support your game.

  • Page 38: Warranty

    WARRANTY Bay Tek Games warrants to the original purchaser that all game components will be free of defects in workmanship and materials for a period of 6 months from the date of purchase. If you fill out the registration card in the cashbox of the game, Bay Tek will add another 3 months to your warranty, free of charge.

  • Page 39: Certificate Of Compliance

    CERTIFICATE OF COMPLIANCE...
