Ticket Dispenser, Drop Button, Menu Buttons,

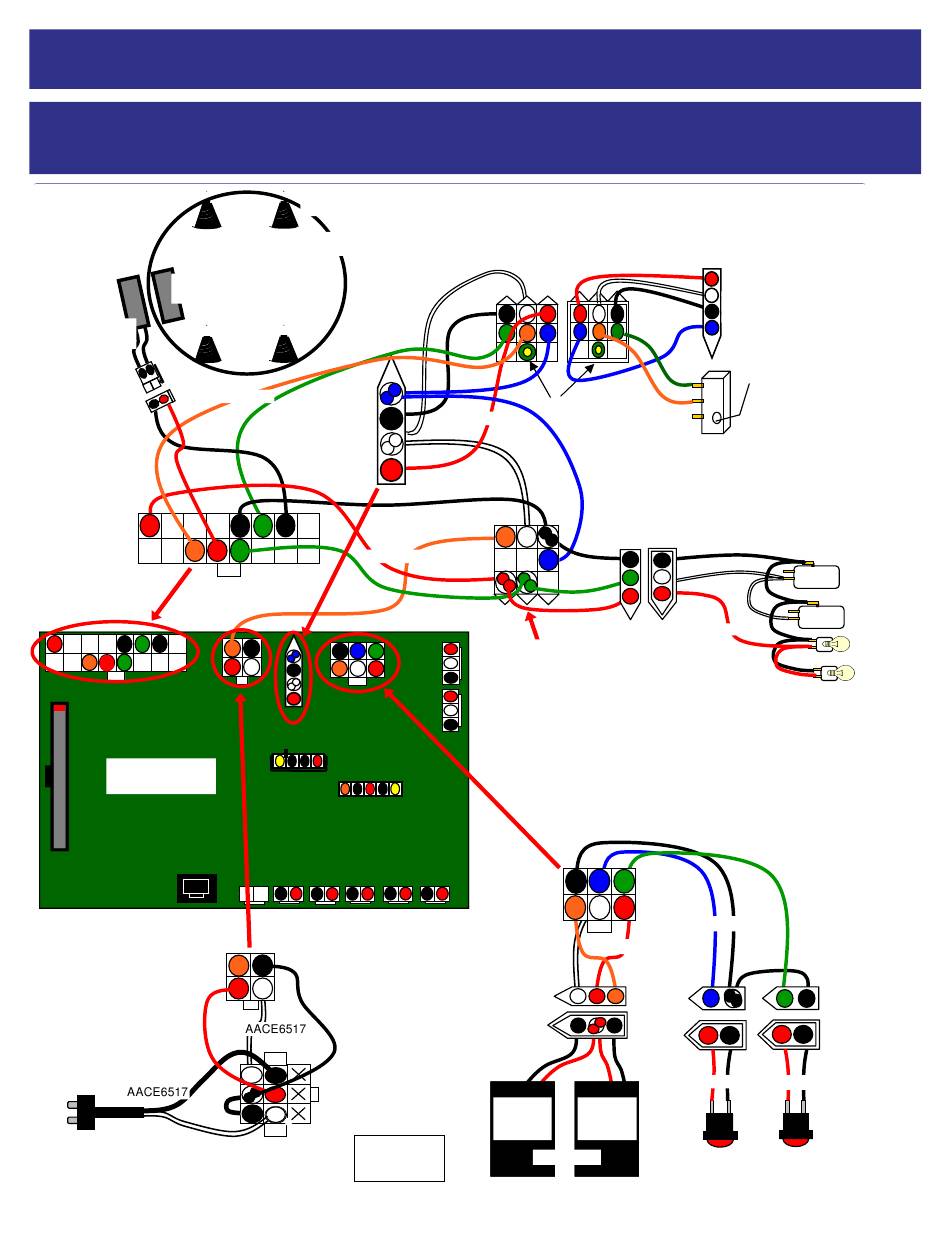

TICKET DISPENSOR, DROP/MENU BUTTONS
Meters, DBA, & Coin Mech Wiring Diagram
Magnetic Switch is
normally 4 Volts DC.
Drop Button Assembly # AAPB6500
Drops to 0 Volts
when pushed.
A5MA9700
Magnet (Riveted On)
AACE6544
Switch w/Cable
AACE6517
AACB9601-SQ
I/O Aux Board
Power from
Outlet Strip
WIRING DIAGRAM
METERS, DBA, AND COIN MECH
A5SP9700
Spring (4 per Button)
AACE6517
Black is Ground
White is Signal
Blank Plate for
To Bill Acceptor
DBA is part #
Part # A5AC9091
A5PL8900
AACE3219
Ticket Tray Cable
Game Ground
AACE6517
UCL—Universal Card Link
Connector for Card Swipe Systems
Orange is Inhibit wire
White is the Ticket Enable
Black is Ground
Blue is the Ticket Notch
Green is Coin Signal
Red is 12 Volts DC
AACE6514
Game
Ticket
Counter
Counter
AACO1020
23
Note: Enable signal originates
at the Rasp Pi Board
To Ticket Dispenser
Part # A5TD1
12 Volt Power
Enable Signal
Com Ground
Notch Signal
AASW200
Low Ticket Switch
Wired Normally Open
AACBL4A-DOOR
AACE6514
AAPB2700
AAPB2700
Menu
Menu
Select
Button
