BAYTEK GAMES SQUIGGLE Service Manual page 22

AACB9601-SQ
I/O Aux Board
A5MO0032B
Monitor
To Bill Acceptor
Part # A5AC9091
Blank Plate for
DBA is part #
A5PL8900
AABD5029-A
AC Driver Board

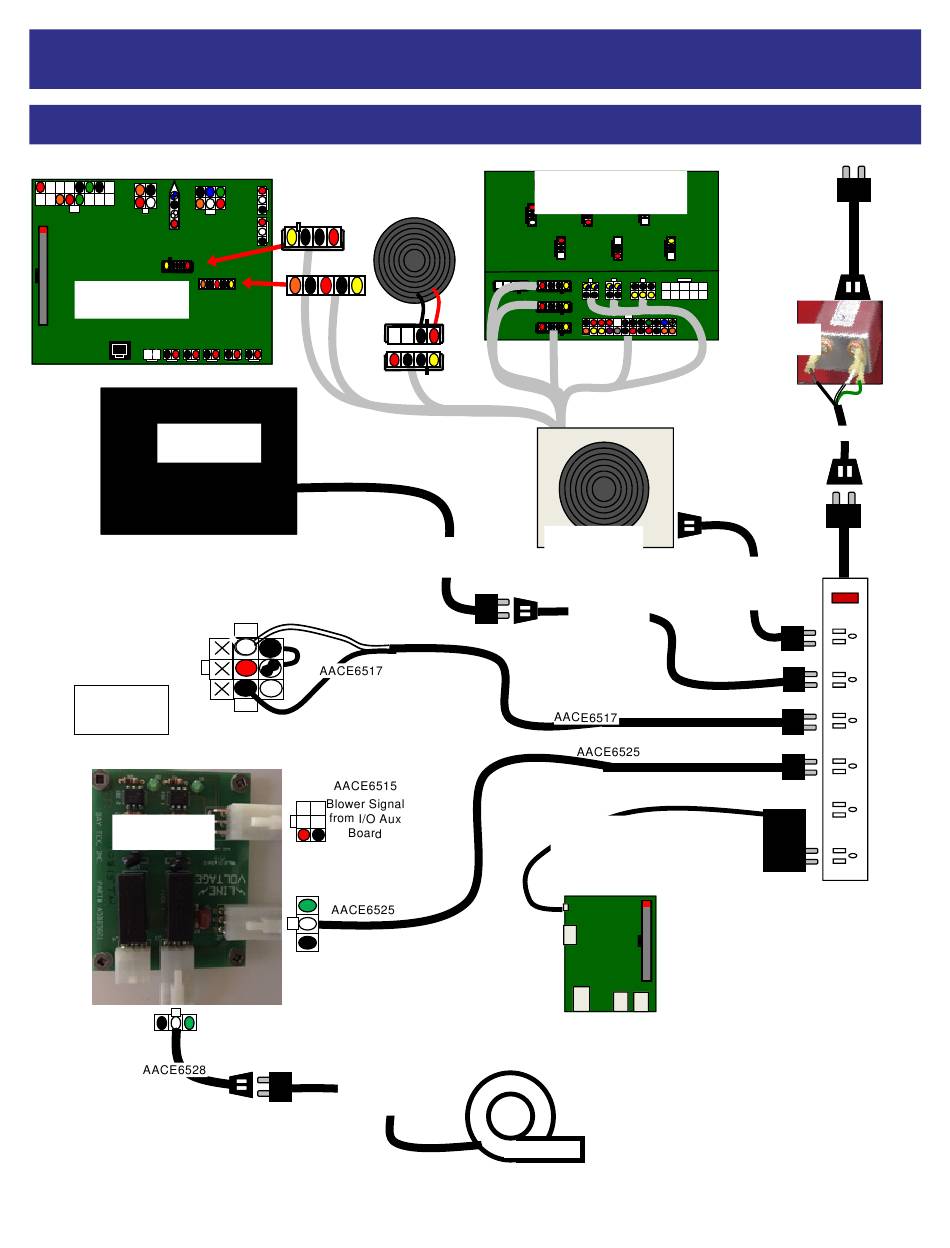

WIRING DIAGRAM
WIRING DIAGRAM
AC VOLTAGE A/C VOLTAGE
AAFA6500
Cooling Fan
4 3 2 1
AC Power
(comes with TV)
AABL6505
Red Balls Blower
120 VAC, 12 Ohms
22
AACB5156
Power Dist. Board
Power Supply
A5PS1013
A5CORD5
AC Power to
Power Supply
A5CORD5
AC Power to
Monitor
A5PS9600
Input = 110/240 VAC
Output = 5 Volt Power to
Raspberry Pi
AAMBRPI-SQ
Rasp Pi Main Board
Note:
The 220 Volt AC version of this
blower is part # AABL6501
Yellow Balls Blower
A5CORD5
Power In Cord
from wall
Line Filter
A5FI9010
AACE6529
Outlet Strip
A5OU1000
