Installation Instructions
Connecting Solar systems (controller and
panel) to Schaudt- and third party systems
AIways follow the corresponding operating instruction manual.
1
1.1
1.2
2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.1
3
Introduction
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4
5
5.1
5.2
5.3
5.4
6
6.1
6.2
6.3
6.4
7
7.1
7.2
7.3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . .
. . . . . . .
. . . . . . . .
. . . . . . . . . . .
. . . . . . . . .
. . . . . . . . . . . . . . . . . . . .
. . . . . . . . . .
Date: 20.09.2018
2
2
2
3
3
3
4
6
6
7
8
9
10
10
11
12
13
14
14
15
16

Advertisement

Table of Contents
loading

Related Manuals for Schaudt LRM 1218

Summary of Contents for Schaudt LRM 1218

  • Page 1: Table Of Contents

    LRM 1218 with connection to SDTBUS and LT 320 ..E Schaudt GmbH, Elektrotechnik und Apparatebau, Planckstraße 8, 88677 Markdorf, Germany, Tel. +49 7544 9577-0, Fax +49 7544 9577-29, www.schaudt- -gmbh.de 9990314 MA / EN...

  • Page 2: Safety Information

    Installation Instructions Solar systems (controller and panel) Safety information Meaning of safety symbols DANGER! Failure to comply with this sign may result in danger to life or physical con- dition. WARNING Failure to comply with this sign may result in injury. ATTENTION! Failure to comply with the sign may result in damage to equipment or other connected consumers.

  • Page 3: Introduction

    Introduction This installation guide contains important information for safely fitting and connecting equipment from Schaudt. Make sure you read and follow the sa- fety instructions provided. The installation guide should always be kept in the vehicle. All safety infor- mation must be passed on to other users.

  • Page 4: General And Application

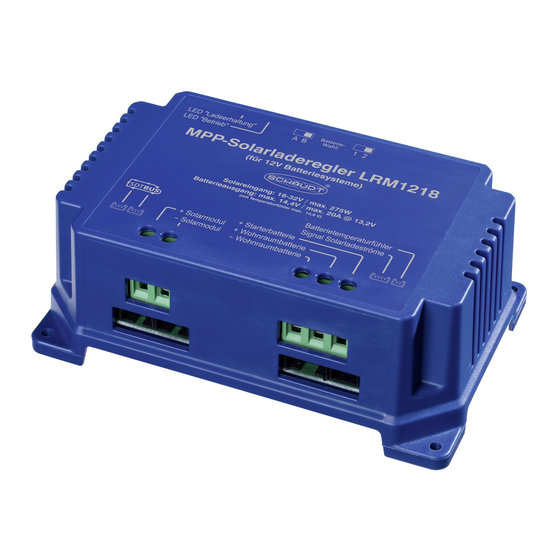

    LR 1218 solar regulator LT 320 control and display panel * the solar regulator LRM 1218 was delivered with two different housing ty- pes. The connection is the same for both types. Which devices are to be fitted new and the situation inside the vehicle must be known before work is commenced.
  • Page 5 LR 1218 Via EBL with 3-pin connector LT 320  Section (EBL connection diagram as for LRM 1218; see above) for LRM 1218; see above). Display panel with solar  Section power display, e.g. Via EBL with 3-pin LT 320 ...

  • Page 6: Connecting The Lt 320 In Conjunction With Lr 1218

    Installation Instructions Solar systems (controller and panel) Connecting the LT 320 in conjunction with LR 1218 The following sets are required for the connection variants in Sections 5.1 to 5.3: Part no. 9990219: LR 1218 with connector material Part no. 9990298: LT 320 with connector material Only set 9990219 is required for the connection variant in Section 5.4.

  • Page 7: Lr 1218 And Schaudt Ebls With 3-Pin Solar Connector

    White LR 1218 LT 320 Rear Solar module(s) Fig. 2 LT 320 and LR1218 to Schaudt EBL with 3-pin solar regulator connector Solar module(s) and their connector cables are not included in the delivery. Date: 20.09.2018 9990314 MA / EN...

  • Page 8: Lr 1218 And Schaudt Ebls With 2-Pin Solar Connector And Adapter For The Starter Battery

    Vehicle installation and pull out of protective sleeve. Fig. 3 LT 320 and LR1218 to Schaudt EBL with 3-pin solar regulator connector (e.g. EBL 119) Solar module(s) and their connector cables are not included in the delivery. Date: 20.09.2018 9990314 MA / EN...

  • Page 9: Lr 1218 And Schaudt Ebls With 3-Pin Solar Connector And Panels With Solar Power Display

    Part no. 9340142 Brown White LR 1218 Solar module(s) Fig. 4 LR1218 to Schaudt EBL with 3-pin solar regulator connector (e.g. EBL 223) Solar module(s) and their connector cables are not included in the delivery. Date: 20.09.2018 9990314 MA / EN...

  • Page 10: Connecting The Lt 320 In Conjunction With Lrm 1218

    Installation Instructions Solar systems (controller and panel) Connecting the LT 320 in conjunction with LRM 1218 The following sets are required for the connection variants in Sections 6.1 to 6.3: Part no. 9990314: LRM 1218 with connector material Part no. 9990298: LT 320 with connector material Only set 9990314 is required for the connection variant in Section 6.4.

  • Page 11: Lrm 1218 And Schaudt Ebls With 3-Pin Solar Connector

    Part no. 9340142 Black Yellow Green Brown White Part no. 9340171 LRM 1218 LT 320 Rear Fig. 6 LT 320 and LRM 1218 to Schaudt EBL with 3-pin solar regulator connector (e.g. EBL 211) Date: 20.09.2018 9990314 MA / EN...

  • Page 12: Lrm 1218 And Schaudt Ebls With 2-Pin Solar Connector And Adapter For The Starter Battery

    Yellow Black installation and Brown pull out of Red** Black protective sleeve. Brown Vehicle Fig. 7 LT 320 and LRM 1218 to Schaudt EBL with 3-pin solar regulator connector (e.g. EBL119) Date: 20.09.2018 9990314 MA / EN...

  • Page 13: Lrm 1218 And Schaudt Ebls With 3-Pin Solar Connector And Panels With Solar Power Display

    Brown Black White Panel Brown Panel Part no. 9340200 Solar module(s) Brown Part no. 9340142 Black Brown White LRM 1218 Fig. 8 LR1218 to Schaudt EBL with 3-pin solar regulator connector (e.g. EBL 223) Date: 20.09.2018 9990314 MA / EN...

  • Page 14: Connecting To Sdtbus Bus Systems

    NOT possible, even if it sup- ports a solar power display. The display on the main panel can only be activated from the SDTBUS. This is only possible using the LRM 1218 solar regulator.

  • Page 15: Lrm 1218 With Connection To Sdtbus

    Installation Instructions Solar systems (controller and panel) LRM 1218 with connection to SDTBUS Set 9990314 (LRM 1218 with connector material) is required. White Black Brown Green SDTBUS to Part no. 9340207 Brown panel* and bus modules White Brown Green Solar module(s) Brown Part no.

  • Page 16: Lrm 1218 With Connection To Sdtbus And Lt 320

    Installation Instructions Solar systems (controller and panel) LRM 1218 with connection to SDTBUS and LT 320 The following sets are required: Part no. 9990314: LRM 1218 with connector material Part no. 9990298: LT 320 with connector material White Black SDTBUS to...
