Power-Tronics, Inc.
Electronic Voltage Regulators and Static Exciters
www.power-tronics.com
Input Volts:
Frequency:
Voltage Regulation:
Output Volts:
Maximum Continuous Output:
Minimum Load Resistance:
Phase Angle Control:
Physical Size:
Weight:
Repairable:
Internal Protection:
External Voltage Adjustment:
System Operating Indicator:
Optional Static Exciter Modules
Optional External Controls

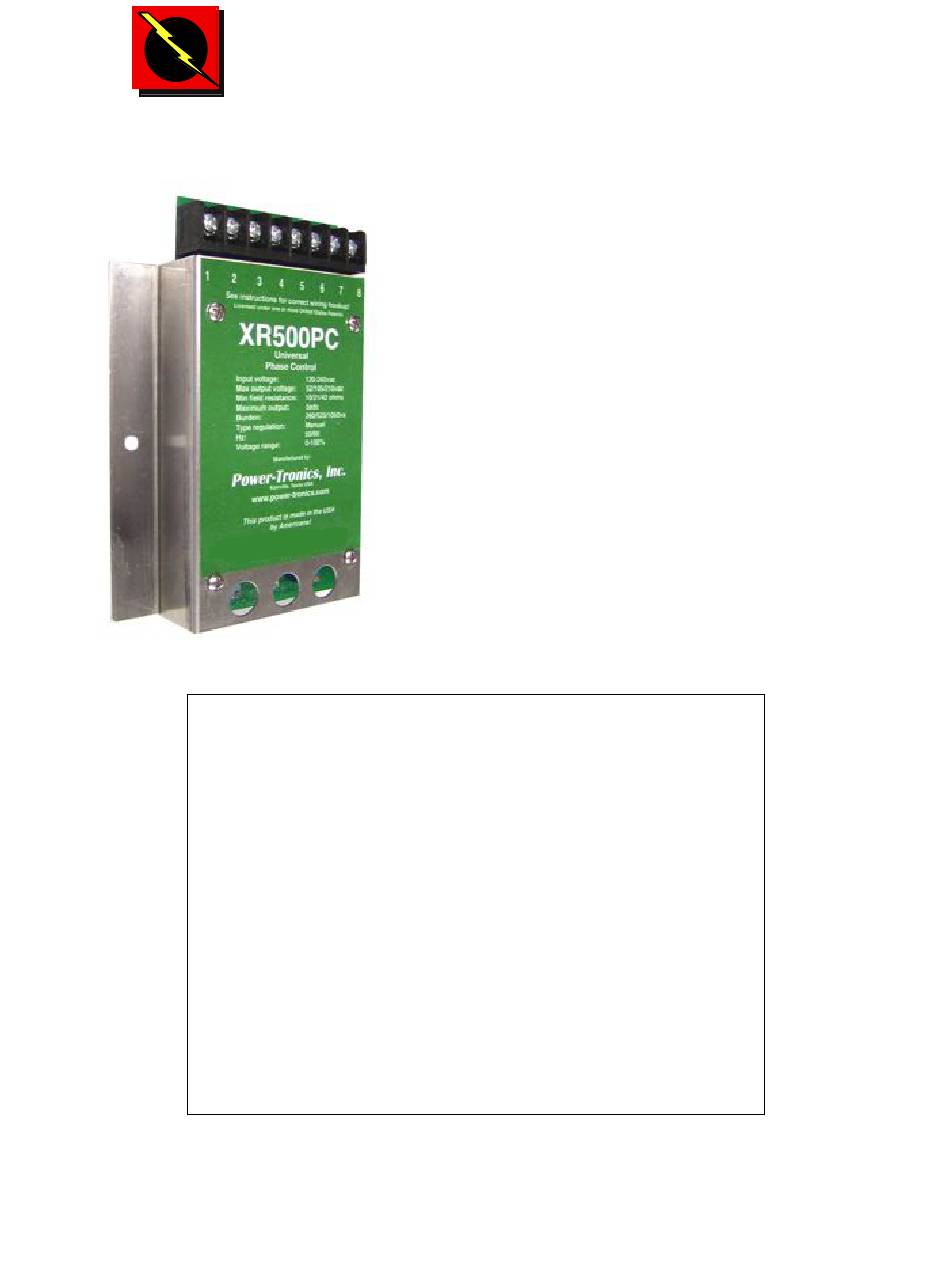

XR500PC
Universal Phase Control
The XR500PC is a device for
controlling the firing angles of SCR's
and Triacs. The XR500PC allows full
wave controlling of 0 to 100 percent of
phase angle.
Specifications
120 / 208 or 240acv
50 or 60hz
Manual
0-105vdc @ 120vac input
0-210vdc @ 240vac input
5adc
21Ω @ 105vdc output
42Ω @ 210vdc output
0-180
4.75 x 6 x 1 in.
7 oz
Yes
Fuses
Yes
Yes
Yes
Yes
Advertisement
Related Manuals for Power-Tronics XR500PC
Summary of Contents for Power-Tronics XR500PC
- Page 1 Power-Tronics, Inc. Electronic Voltage Regulators and Static Exciters www.power-tronics.com XR500PC Universal Phase Control The XR500PC is a device for controlling the firing angles of SCR’s and Triacs. The XR500PC allows full wave controlling of 0 to 100 percent of phase angle.
- Page 2 Installation Instructions • Install the XR500PC as shown in (Figure 1). Be sure to fuse the input to the XR500PC and to your SCR bridge. • Adjust the remote voltage adjustment pot fully CCW or for the lowest resistance setting.
- Page 3 Installation Diagram Figure 1 FUSE 120/240vac FUSE FUSE Voltage Adjust 3 amp 240vac FUSE Off / On 100K 3 4 5 XR500PC...
- Page 4 Power-Tronics, Inc., warranties only parts and workmanship of this product for a period of 2 years from the original date of purchase from Power-Tronics, Inc. Under warranty, Power-Tronics, Inc.
