Specifications:
Input Voltage
Maximum Output Voltage
Maximum Forcing Amperage
Maximum Rated Output Amperage
HZ
Physical Size
Total Weight
Firing Modules
For the most up to date information on this and any other product we manufacture, please
Power-Tronics, Inc.
Electronic Voltage Regulators and Static Exciters
P.O. Box 291509 Kerrville, Texas 78029

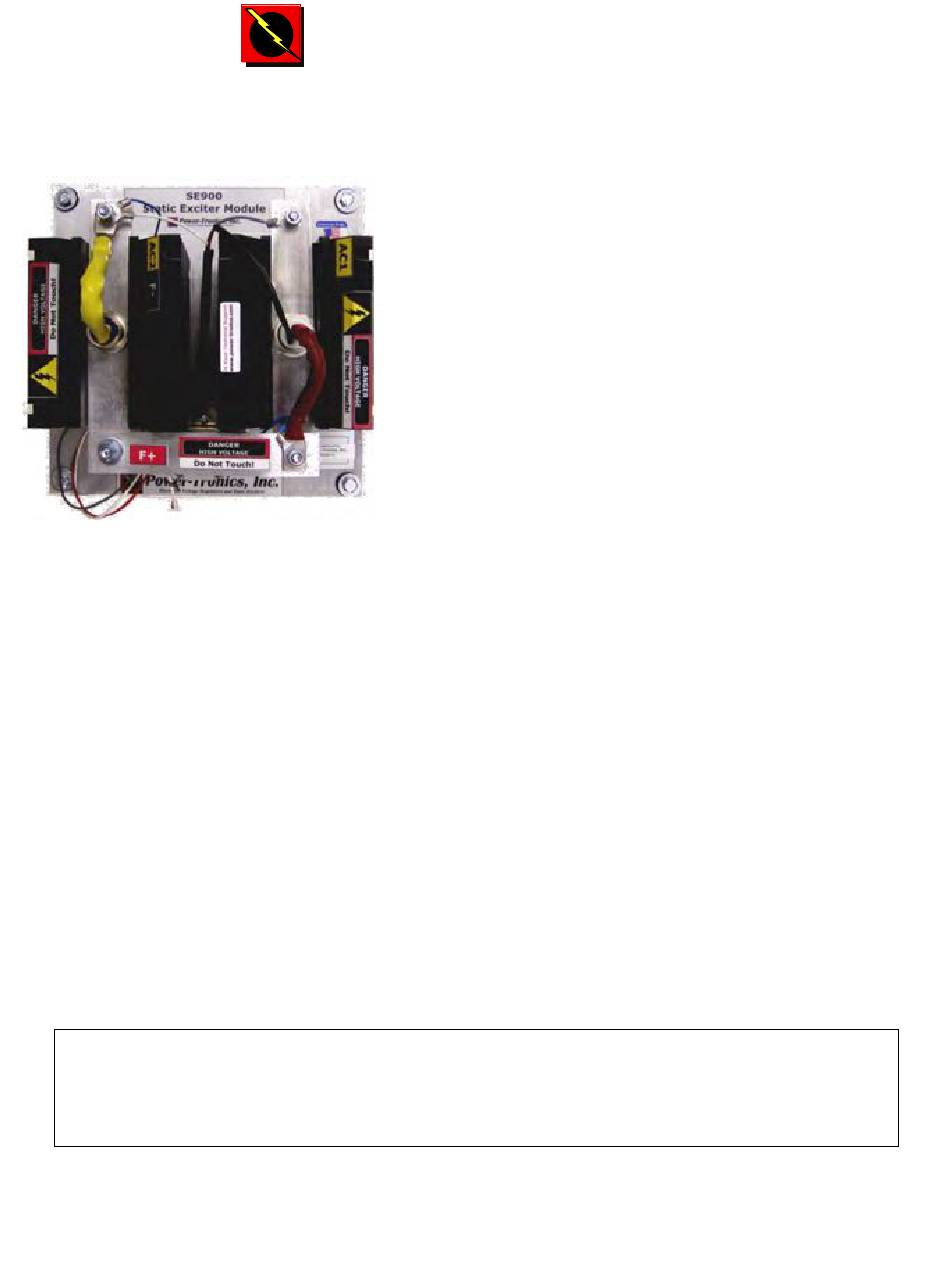

SE900 Static Exciter Module
The SE900 static exciter module is an add on device
designed for use with the UVR and XR series universal
voltage regulator. The primary purpose of the SE900 is
to increase the maximum output amperage from a UVR
or XR series voltage regulator from 5adc to 100adc
which allows the regulator to be used as high amperage
static exciter or phase control.
visit our web site at:
www.power-tronics.com
120/240vac
105vdc
150adc
100adc
N/A
10 x 10 x 6in
6lbs
UVR or XR Series Regulator
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Power-Tronics SE900
Summary of Contents for Power-Tronics SE900
- Page 1 Electronic Voltage Regulators and Static Exciters P.O. Box 291509 Kerrville, Texas 78029 SE900 Static Exciter Module The SE900 static exciter module is an add on device designed for use with the UVR and XR series universal voltage regulator. The primary purpose of the SE900 is...
- Page 2 Installation Instructions: Connect the SE900 up to the voltage regulator as shown below. Turn run/idle switch to the open position (idle) Turn the internal voltage adjustment and stability adjustment on the voltage regulator fully counter clockwise. (10 to 25 turns or until you hear a clicking sound).
- Page 3 3. Connect the red wire thru a 1000 ohm, half watt resistor to terminal AC1 on the SE900. (the light should come on) 4. Disconnect the red wire from terminal AC1 of the SE900 (the light should go off). 5. Check the SCR and Diode for isolation from the mounting housing.
