Power-Tronics AFM500X Manual

Automatic flashing module
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Specifications
Input Voltage:
Frequency:
Buildup Pullout Voltage:
Maximum Continuous Output:
Minimum Field Resistance:
Min Residual Build up Voltage:
Under Frequency Protection:
Physical Size:
Weight:
Repairable:
Internal Protection:
120 / 208 or 240vac
50-400Hz
85-100vac
5adc
21Ω
2vac
Yes, VPH reduction
3 x 4 x 1 in.
7 oz
Yes
Fuses, cartridge type

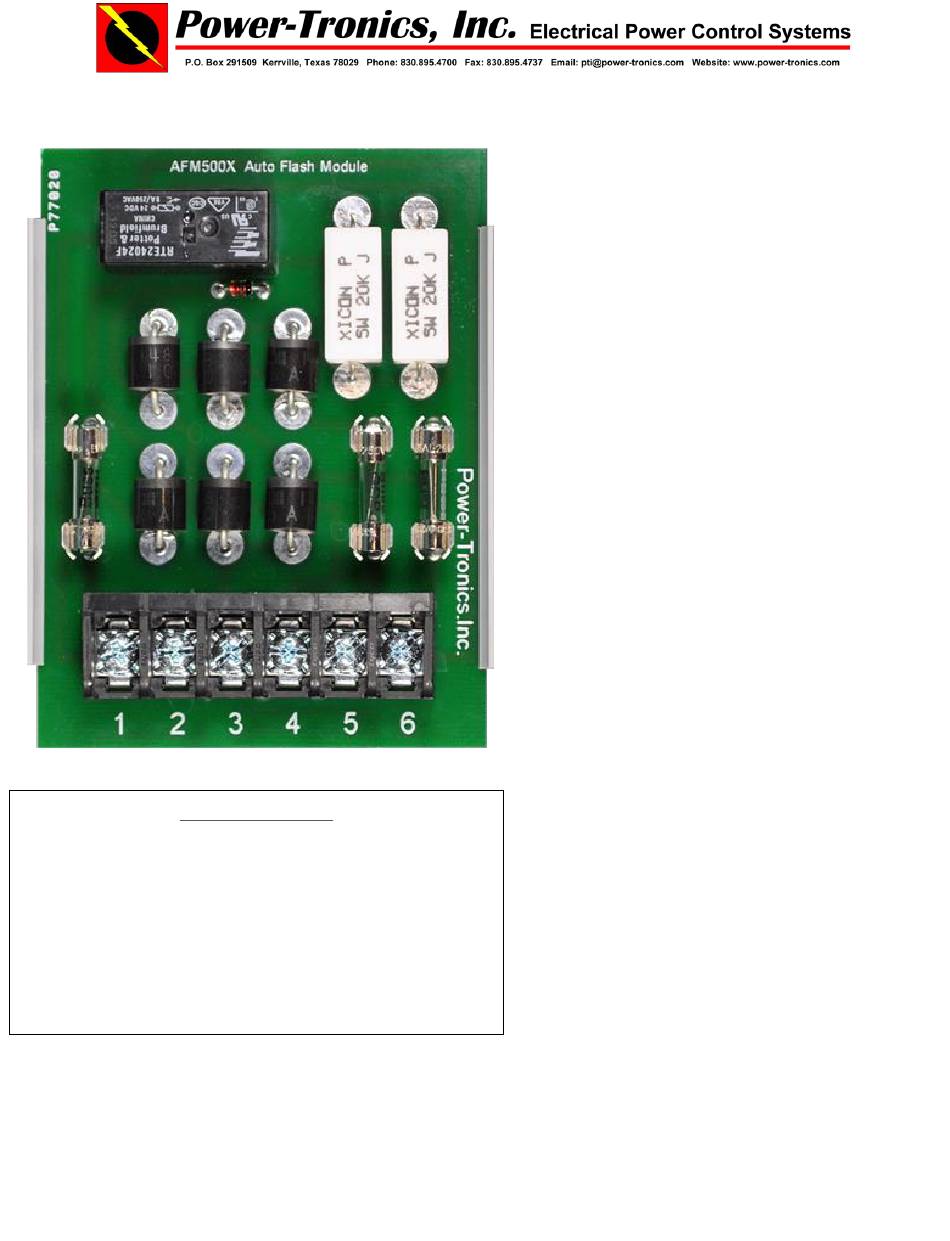

AFM500X
Automatic Flashing Module
The Power-Tronics AFM500X Automatic
Flashing Module is a convenient and
compact optional build up module for all
Power-Tronics UVR and XR series
Universal Voltage Regulators. The
AFM500X offers an automatic flash or
battery flash mode on the same module for
added versatility.
The AFM500X is a unique, automatic
flashing module designed specifically for
generators with very low AC residual
voltage, brush-type generators, and for any
installation where guaranteed buildup is
required. Operation is completely automatic
and installation into a Power-Tronics
regulating system is quick and easy.
The two modes offered by the AFM500X are
automatic flashing and battery flashing.
Automatic flashing uses the existing residual
AC voltage of the generator as a flashing
source, while the battery flashing mode uses
an external battery for it's flashing source.
All inputs are fused to protect any connected
equipment!
Like the rest of our professional line of
products, the AFM500X is fully repairable!
None of the major electronic components
are encapsulated to facilitate prompt repair!
The entire unit is coated in a protective film
to insulate it from any contamination and
moisture that may be present.
The AFM500X Automatic Flashing Module is
compatible with all previous UVR and XR
series Universal Voltage Regulators as well
as select VR series voltage regulators. The
AFM500X is also a very simple upgrade for
installations using older Power-Tronics
BU120/240 or BU500 series buildup
modules!
© 2012 Power-Tronics, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AFM500X and is the answer not in the manual?

Questions and answers

Related Manuals for Power-Tronics AFM500X

Summary of Contents for Power-Tronics AFM500X

  • Page 1 Operation is completely automatic and installation into a Power-Tronics regulating system is quick and easy. The two modes offered by the AFM500X are automatic flashing and battery flashing. Automatic flashing uses the existing residual AC voltage of the generator as a flashing source, while the battery flashing mode uses an external battery for it's flashing source.

  • Page 2: Table Of Contents

    Table of Contents Introduction and Functional Description:..............3 Determining Which Hookup Configuration to Use:............4 Use With Power-Tronics Optional Static Exciter Modules:........5 Automatic Flashing Configuration:................6 Battery Flashing Configuration:...................7 Initial Setup and Commissioning:................8 Internal Fuse Replacement:..................9 Application Troubleshooting:..................10 Bench Check Procedures:...................11 Installation Warranty Form:..................12 Product Warranty Certificate:..................13...

  • Page 3: Introduction And Functional Description

    Both voltage inputs and battery inputs are fused to protect both the AFM500X and any connected equipment in the unlikely even of a fault. Because of it's simplicity and open design, the AFM500X is quickly and easily repaired should the need ever arise.

  • Page 4: Determining Which Hookup Configuration To Use

    Exciter Module, the installation of this product does not differ! Refer to the instructions that came with your optional modules for their correct wiring hookup. The AFM500X is configurable for 2 different modes of operation: Automatic Flashing, and Battery Flashing. YOU MUST CHOOSE ONE FLASHING METHOD OR THE OTHER!!

  • Page 5: Use With Power-Tronics Optional Static Exciter Modules

    Use With Power-Tronics Optional Power-Tronics Static Exciter Modules The AFM500X Automatic Flashing Module can be used with Power-Tronics SE350, SE450, SE900 and SEM100A Static Exciter Modules. When installing the AFM500X in one of these conditions, you must follow the instructions in this...

  • Page 6: Automatic Flashing Configuration

    Take special care to follow the wiring directions precisely! DO NOT use the automatic flash configuration in conjunction with the battery flash configuration! Note that the maximum input voltage to the AFM500X Automatic Flashing Module is 240VAC! DO NOT input 277VAC into the AFM500X!

  • Page 7: Battery Flashing Configuration

    Take special care to follow the wiring directions precisely! DO NOT use the battery flash configuration in conjunction with the automatic flash configuration! Note that the maximum input voltage to the AFM500X Automatic Flashing Module is 240VAC! DO NOT input 277VAC into the AFM500X!

  • Page 8: Initial Setup And Commissioning

    3. If using the Battery-Flash configuration, follow the initial setup and commissioning instructions of your voltage regulator as shown in the voltage regulator’s instruction manual, except energize or turn on the switch to the AFM500X when you plan to energize the generator during setup.

  • Page 9: Internal Fuse Replacement

    Fuse Replacement The AFM500X contains 3 glass cartridge fuses located for quick and convenient replacement should they blow. To replace the fuses, follow the instructions below. Fuse size is 20mm x 5mm rated at 5A at 250VAC. Power-Tronics Part Number: 5R3-403 (Comes as a package of 10 fuses)

  • Page 10: Application Troubleshooting

    18. Exciter fields are not isolated from other circuits. 19. Input and field circuit are being fed by a common cable or conduit. 20. Incorrect hookup or wiring. 21. Exciter field is grounded. 22. Drained battery (Only applies to Battery-Flash configuration). © 2012 Power-Tronics, Inc.

  • Page 11: Bench Check Procedures

    Connect up a 120 volt 50 to 150 watt light bulb to the #4 and #3 Terminals. Input 120vac from a Vari-AC into the AFM500X at #6 and #5. (Fuse this input with fuses rated at 120 volts or higher and not more than 5 amps ac). Slowly raise the voltage on the Vari-AC to 120VAC.

  • Page 12: Installation Warranty Form

    It is very important that you fill out this form completely when installing a voltage regulator. This form serves as a history record on the application. This form also contains the information needed by Power-Tronics, Inc., for repair and troubleshooting of any product you may be having problems with.

  • Page 13: Product Warranty Certificate

    These problems should be protected with external devices provided by the customer such as fuses, surge suppressors, over/under voltage and frequency controls. Power-Tronics, Inc., warranties only parts and workmanship of this product for a period of 2 years from the original date of purchase from Power-Tronics, Inc. Under warranty, Power- Tronics, Inc.
