- Page 1 Quick Start Guide MHM-97926-PBF, Rev 1.0 April 2020 AMS Asset Monitor Online Prediction, Protection, and Process Monitor...
-
Page 2: Table Of Contents
ANY KIND WITH REGARD TO THIS MATERIAL, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Emerson shall not be liable for errors, omissions, or inconsistencies that may be contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material. - Page 3 April 2020 Quick Start Guide Vermerk zur Installation der Messketten in explosionsgefährdeter Umgebung. Soll die Messkette in explosionsgefährdeter Umgebung installiert werden, so ist auf die Einhaltung der in der Gebrauchsanweisung enthaltenen Installationshinweise zu achten. Sollten dabei sprachliche Schwierigkeiten auftreten, wenden Sie sich bitte an die Herstellerfirma, sie wird Ihnen eine Übersetzung der relevanten Artikel in der Landessprache des Verwendungslandes zukommen lassen.
- Page 4 Piezīme par mērīšanas ķēžu instalēšanu sprādziena bīstamās zonās. Ja mērīšanas ķēde jāuzstāda sprādzienbīstamā zonâ, ir jāievēro lietošanas instrukcijā dotie instalēšanas norādījumi. Ja rodas kādas valodas grūtības, lūdzu griezieties pie izgatavotāja firmas, kas Jums nosūtīs nozīmīgâko nodaļu tulkojumus lietotāja valsts valodā. Emerson epro GmbH Jöbkesweg 3 48599 Gronau...
-
Page 5: General
For the complete installation guide and other technical documentation, go to and select View Product. For a https://emerson.com/AMSAssetMonitor current firmware file go to https://guardian.emerson.com. Table 1-1: Related documents MHM-97925-PBF Installation Guide VI Piezo CHARM... - Page 6 Quick Start Guide April 2020 Table 1-2: Product type and ordering numbers of AMS Asset Monitor, (continued) compatible DeltaV hardware, and accessories Hardware Product type number Ordering number Replacement label for SE4606T02-RS labeling component Universal mounting SE8701UMB bracket DANGER Because the device is electrical equipment, commissioning and service must be performed only by trained and authorized personnel.
- Page 7 Emerson Product Support to obtain a Return Materials Authorization (RMA) number and receive additional instructions. Product Support Emerson provides a variety of ways to reach your Product Support team to get the answers you need when you need them: Phone Toll free 800.833.8314 (U.S.
-
Page 8: Minimum Hardware Requirements

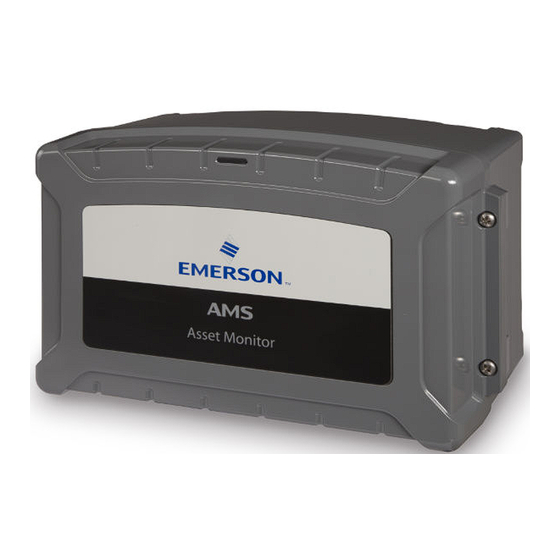

Quick Start Guide April 2020 Minimum hardware requirements The AMS Asset Monitor BASE hardware consists of a rugged enclosure with internal electronics designed to support up to 12 CHARMs, an address module, and a +24 V DC Power Module. The BASE unit provides the infrastructure that connects the CHARMs and their field signal to the integrated analytics. - Page 9 April 2020 Quick Start Guide Figure 2-1: Overview AMS Asset Monitor A. Ethernet switch with two RJ-45 connectors to daisy chain up to eight AMS Asset Monitors and to connect to an Area Controlled Network (ACN). Speed 100 Mbit B. RJ-45 Ethernet connector for configuration and connection to subsequent systems.
- Page 10 Quick Start Guide April 2020 Figure 2-2: +24 V DC Power Module A. Latch in open position B. +24 V DC Power Module C. +24 V DC Power Module slot 2. Connect a +24 V DC power supply. Figure 2-3: Power supply connection A.
- Page 11 April 2020 Quick Start Guide Address plug installation Install the CHARM Address Terminal Block and the Address Plug. See Figure for the location of the required slot. Figure 2-4: Address Plug A. CHARM Address Terminal Block B. Address Plug C. Latch in open position CHARM installation 1.
- Page 12 Quick Start Guide April 2020 The CHARM Terminal Block locks with an audible click. 3. Ensure that the latch of the CHARM Terminal Block is in the open position. If the latch is in the closed position, move it outwards to open it.
- Page 13 April 2020 Quick Start Guide Figure 2-7: CHARM Installation A. CHARM Terminal Block B. CHARM 5. Wire the CHARM Terminal Block according to the requirements of the installed CHARM. Quick Start Guide...
-
Page 14: First Connection To The Ams Asset Monitor
Quick Start Guide April 2020 First connection to the AMS Asset Monitor Procedure 1. Ensure that the AMS Asset Monitor is powered by a +24 V DC power supply. 2. Open the AMS Asset Monitor. 3. Connect the PC to the AMS Asset Monitor. Use the lower socket of the three RJ-45 sockets (see Hardware overview and... -
Page 15: Hazardous Location Installation
April 2020 Quick Start Guide Hazardous location installation Version 1.0 General installation requirements The AMS Asset Monitor must be solely connected to SELV/PELV electrical circuits to meet the requirements for explosion protection. This also applies to all devices connected to the AMS Asset Monitor. Exceptions are explicitly stated. - Page 16 Quick Start Guide April 2020 4. Final acceptance of this equipment when installed is subject to the jurisdiction of the local inspection authority. The DeltaV CHARMs have their own component certification to be assessed within the overall system. The following warnings must be observed: •...
- Page 17 April 2020 Quick Start Guide IECEx/ATEX/CSA Standards IECEx IEC 60079-0:2011; Edition 6.0 IEC 60079-15:2010; Edition 4 ATEX EN 60079-0:2012 EN 60079-15:2010 CAN/CSA-C22.2 No. 0-10 CAN/CSA-C22.2 No. 61010-1:12 + Amd 1-18 CAN/CSA C22.2 No. 94.2-15 CAN/CSA-C22.2 No. 60079-0:15 CAN/CSA C22.2 No. 60079-0:19 CAN/CSA-C22.2 No.
-
Page 18: Certificates
Quick Start Guide April 2020 Certificates MHM-97926-PBF, Rev. 1.0... - Page 19 April 2020 Quick Start Guide Quick Start Guide...
- Page 20 Quick Start Guide April 2020 MHM-97926-PBF, Rev. 1.0...
- Page 21 April 2020 Quick Start Guide Quick Start Guide...
- Page 22 Quick Start Guide April 2020 MHM-97926-PBF, Rev. 1.0...
- Page 23 April 2020 Quick Start Guide Quick Start Guide...
- Page 24 We reserve the right to modify or improve the designs or specifications of our products at any time without notice. All rights reserved. AMS is a mark of one of the Emerson group of companies. The Emerson logo is a trademark and service mark of Emerson...
