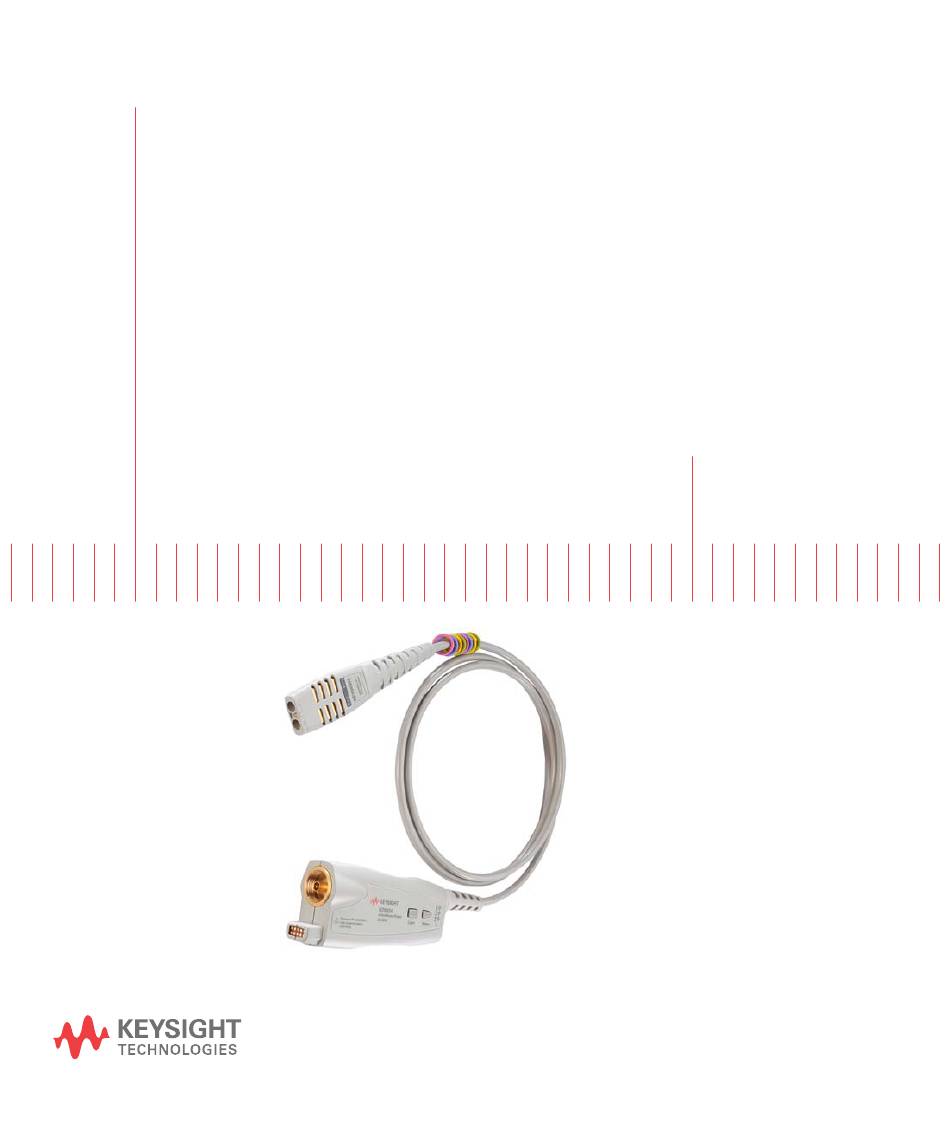

- Page 1 Keysight N7000/1/2/3A InfiniiMax III+ Probes Handling Guide...
- Page 2 Further, to the maximum extent permitted and written consent from Keysight Technolo- by applicable law, Keysight d isclaims all gies, Inc. as governed by United States and warranties, either express or implied, with CAUTION international copyright laws.
-
Page 3: Table Of Contents
Keysight 7000/1/2/3A InfiniiMax III+ Handling Guide Proper Handling Techniques Use a Static-Safe Work Station Safely Connecting the Probe to an Oscilloscope Safely Disconnecting the Probe from an Oscilloscope Probing a DUT Soldering Tips In this guide, you’ll learn how to properly handle the probe to prevent damage and maintain high performance. -
Page 4: Use A Static-Safe Work Station
Figure 1 Static-Safe Work Station Many scopes including Keysight’s 90000X series have a front-panel ground socket. You can plug the wrist strap into the ground socket as seen in the following picture. N7000/1/2/3A InfiniiMax III+ Handling Guide... - Page 5 Use a Static-Safe Work Station Figure 2 Wrist Strap Connected to Oscilloscope Ground Socket The static-safe work station shown in Figure 1 uses two types of ESD protection: • Conductive table-mat and wrist-strap combination. • Conductive floor-mat and heel-strap combination. Both types, when used together, provide a significant level of ESD protection.
-
Page 6: Safely Connecting The Probe To An Oscilloscope
Safely Connecting the Probe to an Oscilloscope Safely Connecting the Probe to an Oscilloscope To protect against ESD damage, always use the four steps shown in Figure 4 page 7 when connecting your probe to the oscilloscope. Avoid damaging the probe amplifier connection pins. As shown in Figure 3, never bend CAUTION the probe head in order to “pop”... - Page 7 Safely Connecting the Probe to an Oscilloscope Figure 4 Connecting the Probe to the Oscilloscope N7000/1/2/3A InfiniiMax III+ Handling Guide...
-
Page 8: Safely Disconnecting The Probe From An Oscilloscope
Safely Disconnecting the Probe from an Oscilloscope Safely Disconnecting the Probe from an Oscilloscope Always disconnect the probe head from the probe amplifier before: • disconnecting the probe amplifier from the oscilloscope. • moving the probe amplifier from one oscilloscope channel to another. Never allow the probe head to be connected to the probe amplifier, if the probe amplifier CAUTION is not connected to the oscilloscope channel. -
Page 9: Probing A Dut
It can be damaged if excessive force is applied to the probe tip. This damage is considered to be abuse and will void the warranty when verified by Keysight Technologies service professionals. When the probe amplifier is not in use, store it in the probe case. Coil the probe cable with these tips in mind: •... - Page 10 Tack-Putty Keysight recommends the use of tack putty for securing both probe heads and amplifiers. Tack putty can be ordered using part number N5439-65201. Wrap a small amount of tack-putty around your probe head cables, taking care to not pinch them.
- Page 11 Probing a DUT Similar techniques can be used to secure probe amplifiers where you apply some tack-putty to the underside of the probe amplifier body and attach it to a rigid body near your DUT. Figure 6 Probe Secured Using Tack Putty You can also use putty with a positioner, such as the N2787A as shown in the following figure.
- Page 12 Probing a DUT Low-temperature Hot Glue You can also use low-temperature hot glue to secure cables. Only use low-temperature hot glue. To remove the hot glue, warm it with a heat gun set CAUTION on low. Only heat the hot glue enough to remove it. Do not use the hot glue on the probe head (PC board or tip leads).
-
Page 13: Soldering Tips
Soldering Tips Soldering Tips When using the N5441A and N2836A solder-in heads and N5439A ZIF probe heads, be sure to observe the following guidelines. For more information, refer to the user’s guide. • Use a temperature-controlled soldering iron station, if possible. •... - Page 14 Soldering Tips N7000/1/2/3A InfiniiMax III+ Handling Guide...
- Page 16 This information is subject to change without notice. © Keysight Technologies, Inc. 2015 Printed in USA First Edition, February 2015 *N7000-97000* N7000-97000 www.keysight.com...
