Proline VCBS8070 Operating Instructions Manual page 11

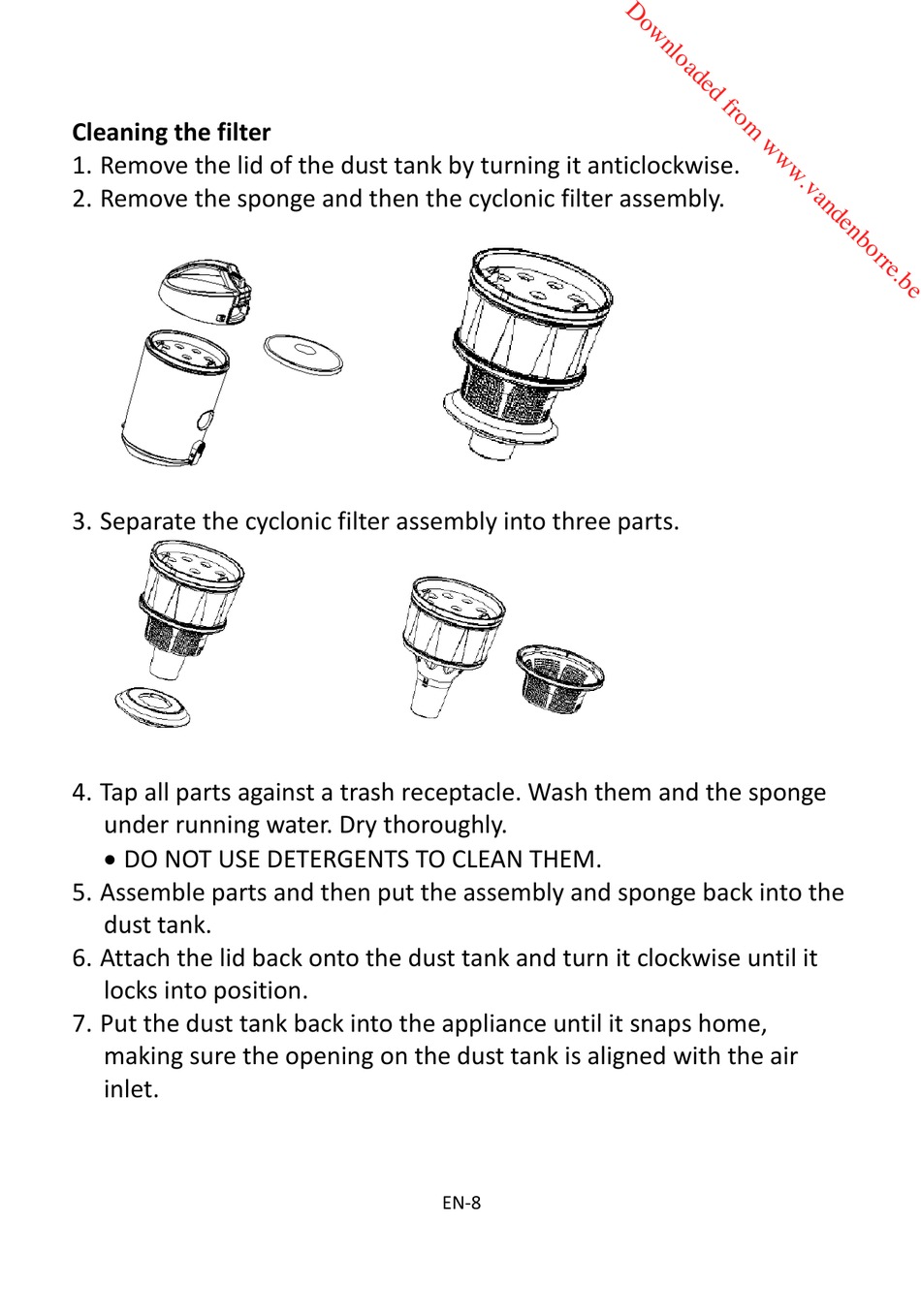

Cleaning the filter
1. Remove the lid of the dust tank by turning it anticlockwise.
2. Remove the sponge and then the cyclonic filter assembly.
3. Separate the cyclonic filter assembly into three parts.
4. Tap all parts against a trash receptacle. Wash them and the sponge
under running water. Dry thoroughly.
 DO NOT USE DETERGENTS TO CLEAN THEM.
5. Assemble parts and then put the assembly and sponge back into the
dust tank.
6. Attach the lid back onto the dust tank and turn it clockwise until it
locks into position.
7. Put the dust tank back into the appliance until it snaps home,
making sure the opening on the dust tank is aligned with the air
inlet.
EN-8
