Surge Protection
This product features built-in surge protection circuitry in compliance with
applicable standards.
For comprehensive protection of a luminaire installation against lightning and
electrical surges, it is essential to cover mains supply and data input lines at
the distribution board level, by using respective primary (Type 1) and secondary
(Type 2) surge arrestors in compliance with EN61643-11/IEC61643-1.
Warning
Ensure that all required surge protection measures are in place and activated
prior to luminaire installation. Also, disconnect luminaires before operating
high-power devices such as, for example, electrical arc welders.
WE-EF LEUCHTEN
Installation and Maintenance
Instructions

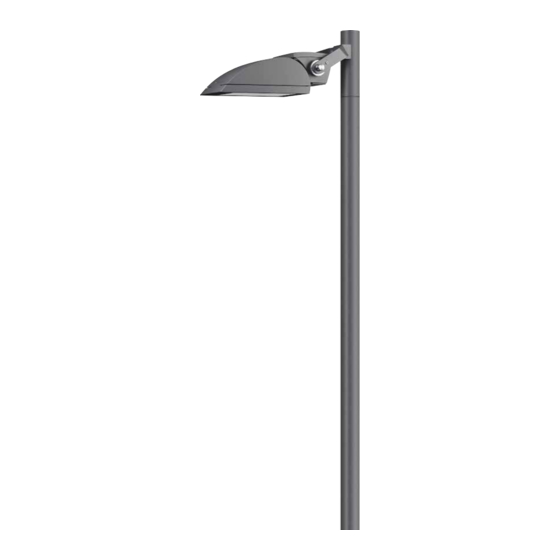

Area Floodlight
FLA440 LED
FLA460 LED
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for WE-EF FLA440 Series
Summary of Contents for WE-EF FLA440 Series
- Page 1 WE-EF LEUCHTEN Installation and Maintenance Instructions Area Floodlight FLA440 LED FLA460 LED Surge Protection This product features built-in surge protection circuitry in compliance with applicable standards. For comprehensive protection of a luminaire installation against lightning and electrical surges, it is essential to cover mains supply and data input lines at the distribution board level, by using respective primary (Type 1) and secondary (Type 2) surge arrestors in compliance with EN61643-11/IEC61643-1.
- Page 2 Area Floodlight FLA440 FLA460 ø 14 ø 14 ø 18 ø 18 ø 14 ø 14 F A44 36 I 66, Class I, ta 4 C F A44 I 66, Class I, ta 2 C F A46 I 66, Class I, ta 2 C F A46 1 I 66, Class I, ta 2 C...
- Page 3 Light Source Maintenance Apart from cleaning the product’s exterior surfaces, no special maintenance work is required. Do not use high-pressure cleaners. In case of component failure due to abnormal circumstances or at end of life, replacement must be carried out by a suitably quali ed and trained professional.
- Page 4 N = Neutral, = Earthing) source is factory-sealed and does not need to be b) WE-EF Control Basic (L = Phase, N = Neutral, opened during installation. = Earthing, Ls = Switching Phase) c) 1-10 V/DALI or WE-EF Control Dynamic (L = Phase,...
- Page 5 Fig. I. Feed mains supply cable through cable gland...
- Page 6 Mounting Accessories Pole bracket for 1 x FLA440/460 310-9126 ø 76 x 100 for 2 x FLA440/460 310-9127 ø 76 x 100 Mounting tter for 1 x FLA440/460 310-9124 ø 76 x 100 for 2 x FLA440/460 310-9125 ø 76 x 100 Pipe clamp KA1/KA2 for 1 x FLA440/460...
- Page 7 Pole clamp for 1 x FLA440 147-0543 ø 76-89 for 1 x FLA440 147-0544 ø 114-133 for 2 x FLA440 147-0545 ø 76-89 for 2 x FLA440 147-0546 ø 114-133 for 1 x FLA460 147-0547 ø 76-89 for 1 x FLA460 147-0548 ø...
- Page 8 Tel +1 724 742 0030 Fax +41 22 752 49 74 Fax +1 724 742 0035 info.switzerland@we-ef.com info.usa@we-ef.com WE-EF LIGHTING United Kingdom Tel +44 844 880 5346 Fax +44 844 880 5347 info.uk@we-ef.com TO9228W0617 © WE-EF 2017 Technical speci cations are subject to change.
