WE-EF LEUCHTEN

Installation and Maintenance

Instructions

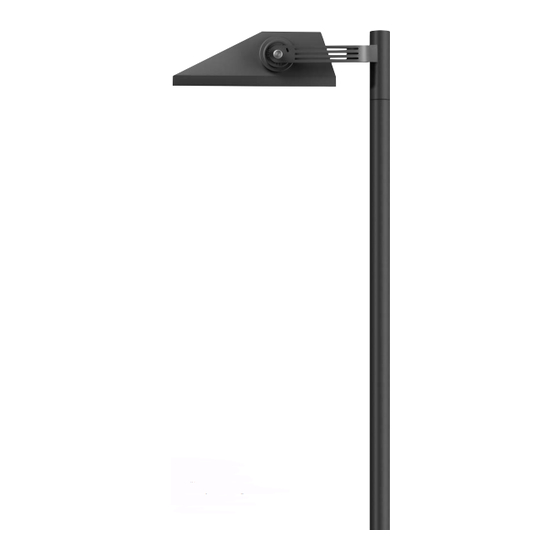

Area Floodlight

FLA740 LED

Do not open during installation

This product is factory-sealed.

Refer to the instructions contained in this

document for details.

Surge Protection

This product features built-in surge protection circuitry in compliance with

applicable standards.

For comprehensive protection of a luminaire installation against lightning and

electrical surges, it is essential to cover mains supply and data input lines at

the distribution board level, by using respective primary (Type 1) and secondary

(Type 2) surge arrestors in compliance with EN61643-11/IEC61643-1.

Warning

Ensure that all required surge protection measures are in place and activated

prior to luminaire installation. Also, disconnect luminaires before operating

high-power devices such as, for example, electrical arc welders.

Need help?

Do you have a question about the FLA740 LED and is the answer not in the manual?

Page 1 WE-EF LEUCHTEN Installation and Maintenance Instructions Area Floodlight FLA740 LED Do not open during installation This product is factory-sealed. Refer to the instructions contained in this document for details. Surge Protection This product features built-in surge protection circuitry in compliance with applicable standards.
Page 2 Area Floodlight FLA740 ø 14 ø 22 ø 14 IP66, Class I, ta = 25°C...
Page 3: Maintenance
Light Source Maintenance Apart from cleaning the product’s exterior surfaces, no special maintenance work is required. Do not use high-pressure cleaners. In case of component failure due to abnormal circumstances or at end of life, replacement must be carried out Warning: Do not open luminaire while mains supply is switched on.
Page 4: Installation
Installation Installation Procedure The product must be installed and maintained by a 1) Prior to electrical connection, proceed with mechan- ical installation by securing stirrup B to optional building/construction and/or electrical regulations and mounting accessory or directly to a suitable surface relevant legislation.
