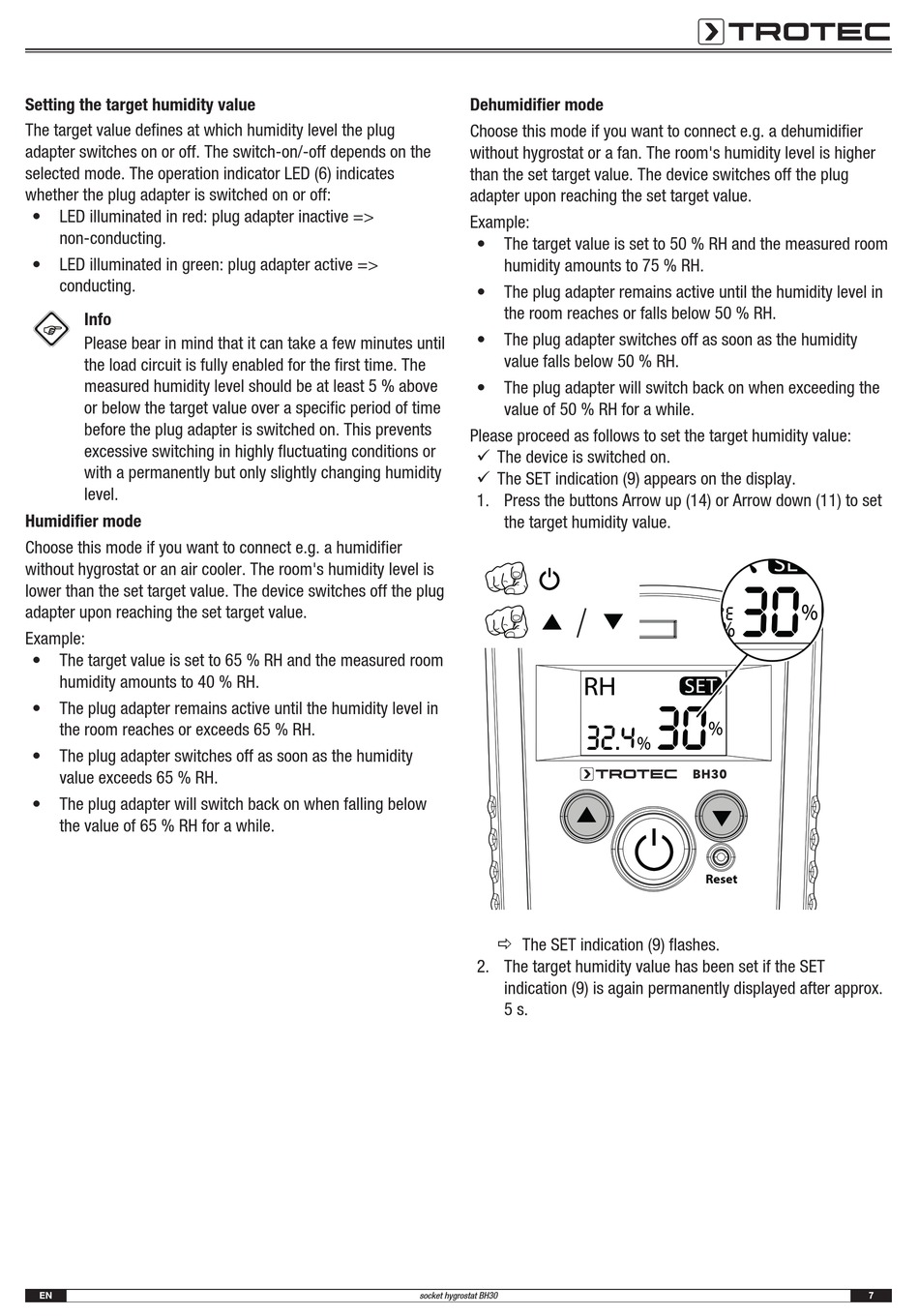

Trotec BH30 Operating Manual page 7

Setting the target humidity value
The target value defines at which humidity level the plug
adapter switches on or off. The switch-on/-off depends on the
selected mode. The operation indicator LED (6) indicates
whether the plug adapter is switched on or off:
• LED illuminated in red: plug adapter inactive =>
non-conducting.
• LED illuminated in green: plug adapter active =>
conducting.
Info
Please bear in mind that it can take a few minutes until
the load circuit is fully enabled for the first time. The
measured humidity level should be at least 5 % above
or below the target value over a specific period of time
before the plug adapter is switched on. This prevents
excessive switching in highly fluctuating conditions or
with a permanently but only slightly changing humidity
level.
Humidifier mode
Choose this mode if you want to connect e.g. a humidifier
without hygrostat or an air cooler. The room's humidity level is
lower than the set target value. The device switches off the plug
adapter upon reaching the set target value.
Example:
• The target value is set to 65 % RH and the measured room
humidity amounts to 40 % RH.
• The plug adapter remains active until the humidity level in
the room reaches or exceeds 65 % RH.
• The plug adapter switches off as soon as the humidity
value exceeds 65 % RH.
• The plug adapter will switch back on when falling below
the value of 65 % RH for a while.
EN
Dehumidifier mode
Choose this mode if you want to connect e.g. a dehumidifier
without hygrostat or a fan. The room's humidity level is higher
than the set target value. The device switches off the plug
adapter upon reaching the set target value.
Example:
• The target value is set to 50 % RH and the measured room
humidity amounts to 75 % RH.
• The plug adapter remains active until the humidity level in
the room reaches or falls below 50 % RH.
• The plug adapter switches off as soon as the humidity
value falls below 50 % RH.
• The plug adapter will switch back on when exceeding the
value of 50 % RH for a while.
Please proceed as follows to set the target humidity value:
ü The device is switched on.
ü The SET indication (9) appears on the display.
1. Press the buttons Arrow up (14) or Arrow down (11) to set
the target humidity value.
ð The SET indication (9) flashes.
2. The target humidity value has been set if the SET
indication (9) is again permanently displayed after approx.
5 s.
