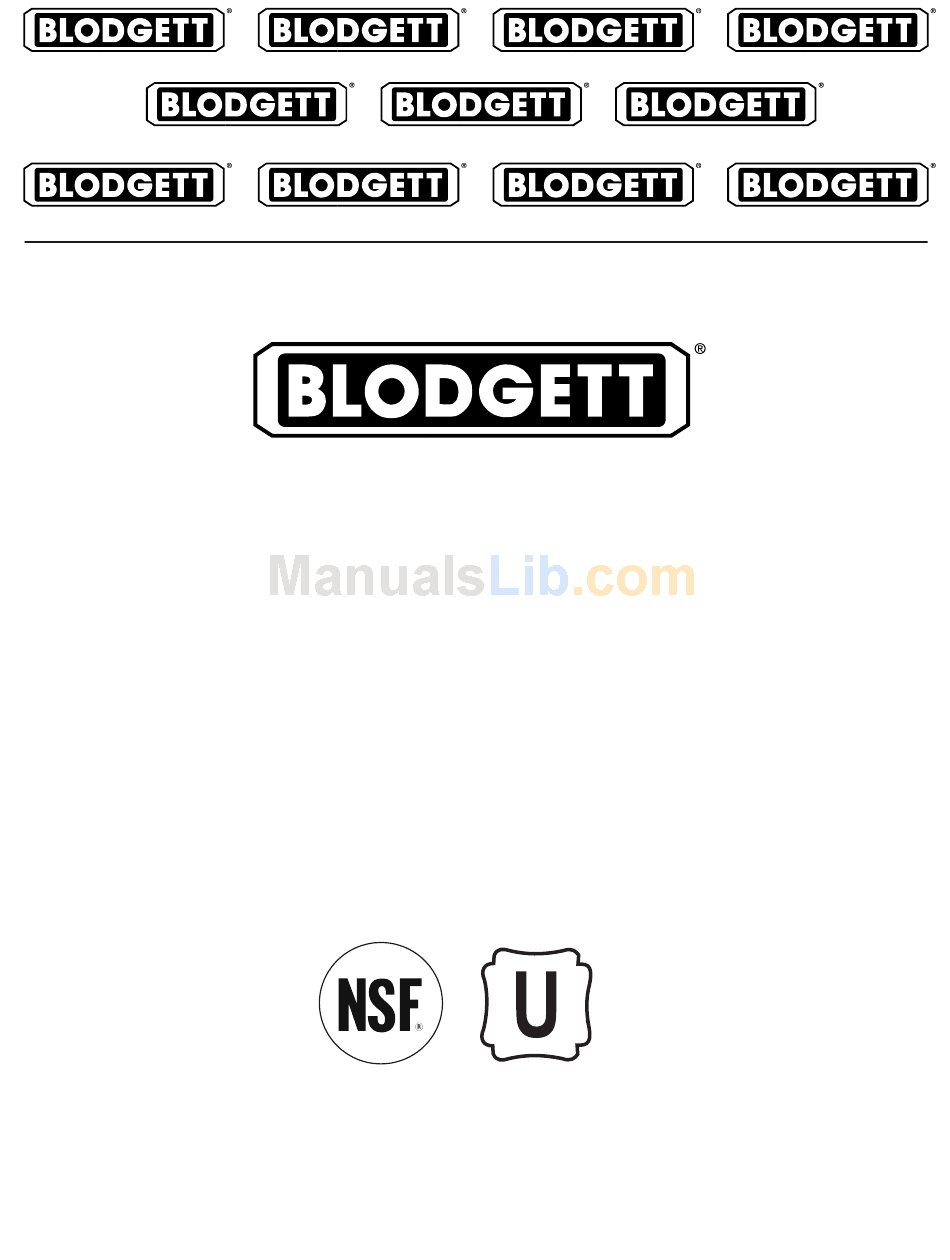

KLT-DS and KPT-DS Series
DIRECT STEAM TRI-LEG TILTING KETTLE AND
DIRECT STEAM PEDESTAL TILTING KETTLE
INSTALLATION – OPERATION – MAINTENANCE
BLODGETT OVEN COMPANY
www.blodgett.com
44 Lakeside Avenue, Burlington, Vermont 05401 USA Telephone (800) 331-5842, (802) 860-3700 Fax: (802) 864-0183
1
S00057 Rev A (5/04)
Advertisement
Related Manuals for Blodgett KLT-DS
Summary of Contents for Blodgett KLT-DS
- Page 1 KLT-DS and KPT-DS Series DIRECT STEAM TRI-LEG TILTING KETTLE AND DIRECT STEAM PEDESTAL TILTING KETTLE INSTALLATION – OPERATION – MAINTENANCE BLODGETT OVEN COMPANY www.blodgett.com 44 Lakeside Avenue, Burlington, Vermont 05401 USA Telephone (800) 331-5842, (802) 860-3700 Fax: (802) 864-0183 S00057 Rev A (5/04)
- Page 2 IMPORTANT NOTES FOR INSTALLATION AND OPERATION It is recommended that this manual be read thoroughly and that all instructions be followed carefully. This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.
-
Page 3: Table Of Contents
TABLE OF CONTENTS DESCRIPTION PAGE INSTALLATION AND SERVICE CONNECTIONS – KLT-DS ... 4 INSTALLATION AND SERVICE CONNECTIONS – KPT-DS ... 5 1.0 INSTALLATION INSTRUCTIONS ... 6 2.0 INTRODUCTION - DESCRIPTION ... 7 3.0 BASIC FUNCTIONING ... 7 4.0 OPERATING INSTRUCTIONS ... 8 5.0 CLEANING INSTRUCTIONS ... -
Page 4: Installation And Service Connections - Klt-Ds
SERVICE CONNECTIONS – KLT-DS STEAM SUPPLY: 3/4"IPS CONDENSATE RETURN: 1/2"IPS MODEL CAPACITY UNITS 20 gallons inches KLT-20DS 76 litres 30 gallons inches KLT-30DS 114 litres 40 gallons inches KLT-40DS 152 litres 60 gallons inches 29.5 KLT-60DS 227 litres 80 gallons... -
Page 5: Installation And Service Connections - Kpt-Ds
SERVICE CONNECTIONS – KPT-DS STEAM SUPPLY: 3/4" IPS (19MM) 35 psi (2.4 KG/CM ) CONDENSATE RETURN: ½" IPS (13mm) MODEL CAPACITY UNITS 20 gallons inches KPT-20DS 76 litres inches 30 gallons KPT-30DS 114 litres inches 40 gallons KPT-40DS 152 litres inches 60 gallons KPT-60DS... -
Page 6: Installation Instructions
1. Select a location to provide drainage for kettle pour path when tilted and for draw-off valve if so equipped. 2. Mark hole locations through flanged adjustable feet on KLT-DS models and through pedestal base on KPT-DS models. Remove kettle. -
Page 7: Introduction - Description
(jacket) enveloping the lower two thirds of the kettle bowl surface. All kettles are tilting, floor mounted in fixed positions either on legs with adjustable flanged feet (KLT-DS models) or pedestals (KPT-DS models). All kettles are equipped with a drain cock, safety relief valve and a steam control valve. -
Page 8: Operating Instructions
4.0 OPERATING INSTRUCTIONS 1. If kettle has draw-off valve, close it. 2. Fill kettle with product to desired level. 3. Slowly turn the steam control valve ON to full open position (counter clockwise). 4. The water or food should boil 3-4 minutes per gallon. If it does not then incoming pressure should be checked to determine that it is adequate to operate the kettle efficiently. - Page 9 4. Wipe the exterior of the kettle with a clean, damp cloth. WARNING: If your are cleaning a valve that is assembled to a kettle, be sure the kettle is completely empty of any product. DRAW-OFF VALVE CLEANING 1. If equipped with a tangent draw-off valve, turn the large hex nut on the draw-off valve counterclockwise until it is completely disengaged from the threads.
-
Page 10: Stainless Steel
CAUTION: Improper use of this procedure may damage your appliance! 1. Use undiluted white vinegar with a non-abrasive scouring pad (plastic) or cloth on the affected area to remove the rust stain. The appliance should not be heated and remain at room temperature during the entire cleaning process. -
Page 11: Troubleshooting Maintenance
6.0 TROUBLESHOOTING MAINTENANCE 6.1 PREVENTIVE MAINTENANCE No preventive maintenance is required other than adhering to the Cleaning Procedure instructions. 6.2 DRAW-OFF VALVE LEAKS If a leak occurs through the valve steam, replace the “O” ring. If the leak can be attributed to faulty sealing occurring between the stem disc and valve seat, then quite often this problem can be corrected by cleaning off the dried on food residue with an extremely fine emery cloth or the rubber vulcanized stem piece has been damaged and must be replaced. - Page 12 located at the base of the kettle jacket may be opened to remove the water. It may be necessary to repeat this procedure several times depending on the number of batches being cooked as each batch will create condensate. If the kettle appears to be slow in heating, this would indicate that there is water in the jacket.
