Knape & Vogt Simply Put SP-MUBSC-11-FN Installation Instructions

Product Assemblies
SP-MUBSC-11-FN SP-MUBSC-17-FN
SP-MUBSC-14-FN SP-MUBSC-20-FN
Place the sliding basket assembly in
1
cabinet at desired location. With a
pencil mark the cabinet floor through
the front two mounting hole locations.
Remove the basket from the cabinet.
With 1/16" drill bit drill pilot holes
through the two mounting hole
locations you marked.
Pull the multi-use basket completely
2
forward. Place the entire assembly
back inside of the cabinet so that
the front mounting holes line directly
over the pilot holes you drilled in
the cabinet floor. Fasten the front
mounting strap to the cabinet floor
using two mounting screws.
Now that the front mounting strap is
3
mounted to the cabinet floor drill pilot
holes in through the rear mounting
hole locations with the 1/16" drill bit.
Fasten the rear mounting strap to
the cabinet floor using two mounting
screws. Push the multi-use basket
all the way back into the cabinet.
Installation is now complete
Grand Rapids, MI
800.253.1561
simplyputorganizers.com
Inspect all parts and read all instructions prior to beginning assembly and installation.
Tools Required
• Phillips Head Screwdriver
• Drill with 1/16" (1.5mm) bit
for drilling pilot holes
• Pencil
Parts Included

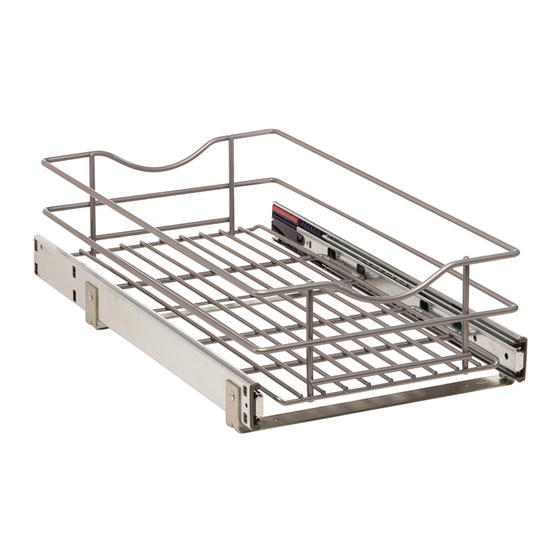

Sliding Basket Assembly
1
1-1/4"
(3.2 cm)
3
.
©2017 Knape & Vogt. All rights reserved. Knape & Vogt
Pullout Basket
Installation Instructions
Mounting Screws (4)
2
reserves the right to change specifications without notice.
®
310576/0917
