Knape & Vogt HM25 Installation Instructions

Knape & Vogt HM25 Installation Instructions

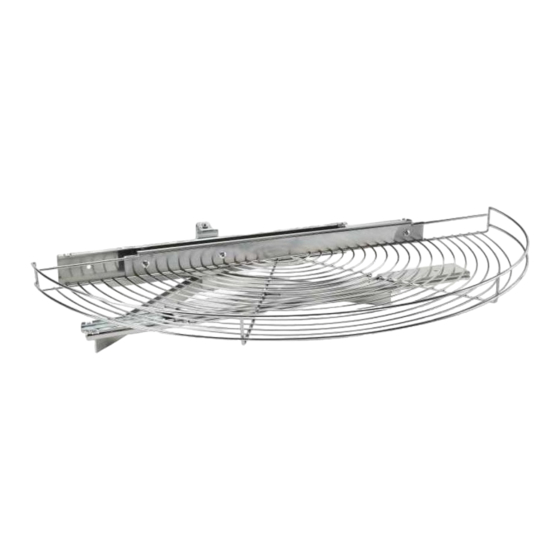

Wire half moon pivot-out lazy susan

Advertisement

Parts Included

A. Half-moon shelf assembly
B. Side C-Hinge
C. Pin and plastic washers
D. Door follower and screws
E. Mounting screws
A
D
E

Tools Required

• Phillips Screwdriver
• Drill with 1/16" bit for pilot holes

Product Assemblies

HM25
HM28
HM30
HM34
KNAPE & VOGT MANUFACTURING COMPANY
P.O. Box 191, Muncie, IN 47308
0.899.6535 • 765.288.8730 • Fax 765.288.0851 • www.kv.com

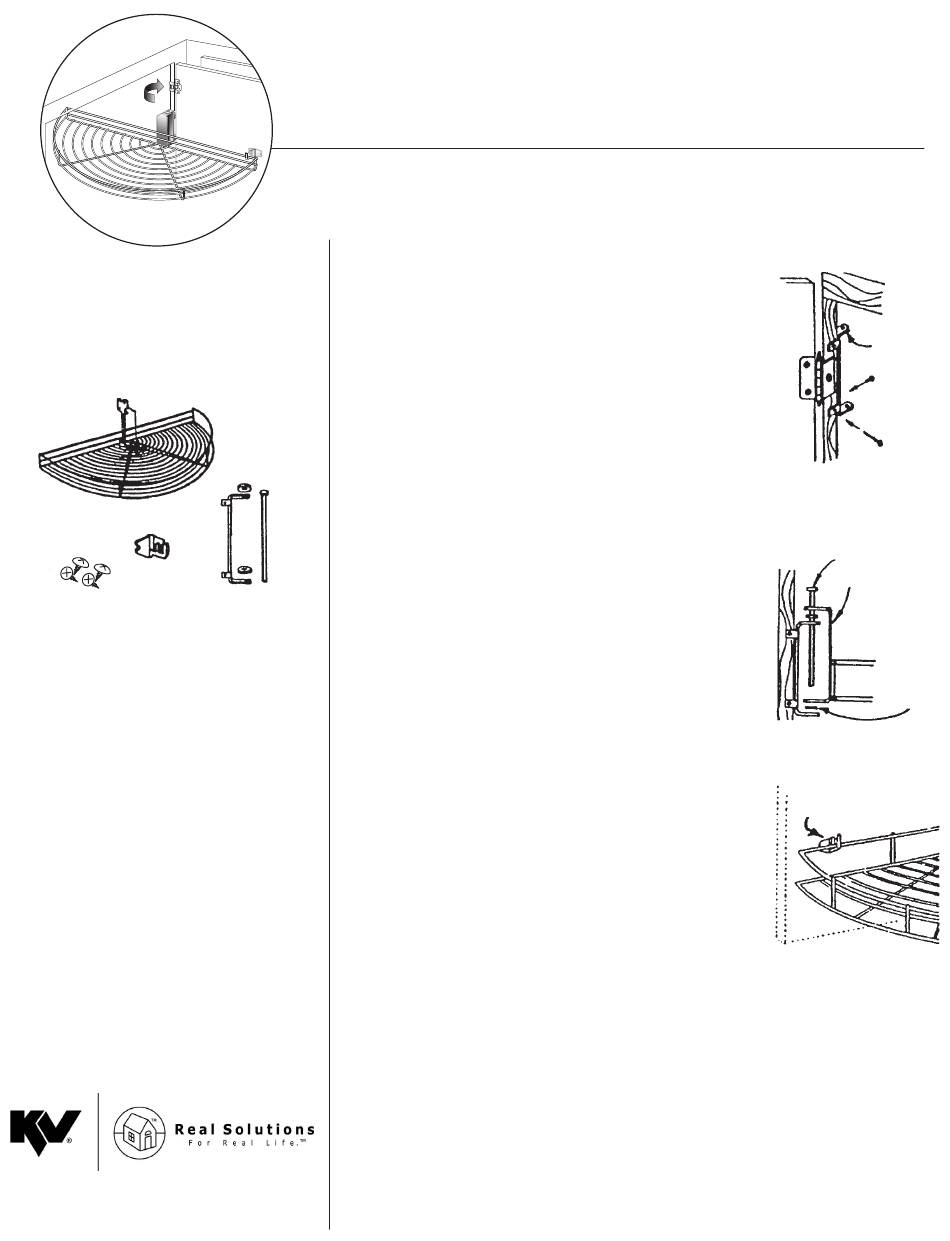

WIRE HALF MOON PIVOT-OUT
LAZY SUSAN

Installation Instructions

Inspect all parts and read all instructions prior to beginning assembly and installation.

Step 1 Locate cabinet side for attaching half moon susan

Step 2 Position plastic washers over holes in the C-hinge.

B
C
Step 3 Hook the door follower up and around the top wire
shelf. Wrap the C-hinge around the cabinet frame so
the tabs hold the pin inside the cabinet. Screw C-
hinge into place using two long screws in the side
of the cabinet face frame, and 4 short screws into
the back of the cabinet face frame.
These will ensure smooth operation during shelf
pivot movement. Align the holes on the bracket of
the half moon shelf assembly with the holes in the
C-hinge. Slide pin through all four holes from the top
downward.
surround of the half moon shelf, and screw to back
side of cabinet door. Caution: Make sure the
mounting screws are shorter than the thickness of
the door to prevent the screws from going through
the door front.
Tab
Short
screws
Long
screws
step 1
Pin
Basket
hinge
bracket
Washer
step 2
step 3
RN-248EFS 04/03
