- Page 1 Closet Culture Install Sheets Closet Kits 2', 4', 6' and 8' (ENG/FR) Shoe Rack Kit (ENG/FR) Pant Rack Kit (ENG/FR) Basket Surround Kit (ENG/FR)
-
Page 2: Installation Instructions

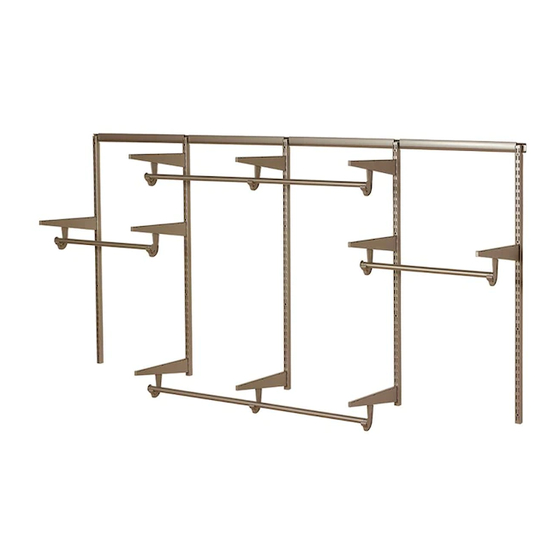

Installation Instructions Closet Kits 2', 4', 6' and 8' 0300-KITA-2CN, 0300-KITA-4CN, 0300-KITA-6CN and 0300-KITA-8CN Tools Needed: STEP 1: Measure 86" from the floor and make two marks on the wall with a pencil (Figure 1). • Tape measure STEP 2: Use a stud finder to find and mark the location of wall studs on the wall. •... - Page 3 Installation Instructions Installation Instructions Closet Kits 2', 4', 6' and 8' Closet Kits 2', 4', 6' and 8' 0300-KITA-2CN, 0300-KITA-4CN, 0300-KITA-6CN and 0300-KITA-8CN, 0300-KITA-2CN, 0300-KITA-4CN, 0300-KITA-6CN and 0300-KITA-8CN Figure 3 Figure 4 Figure 5 Figure 6 DATE DESCRIPTION APPR DWN BY: DATE: SCALE: CHK'D BY:...
-
Page 4: Instructions D'installation
Instructions d'installation Ensembles de garde-robe 61 cm, 122 cm, 183 cm et 244 cm 0300-KITA-2CN, 0300-KITA-4CN, 0300-KITA-6CN et 0300-KITA-8CN Outils Requis: éTaPE 1: Mesurez 218 cm à partir du plancher et marquez deux repères sur le mur avec le crayon (Figure 1). - Page 5 Instructions d’installation Ensembles de garde-robe 61 cm, 122 cm, 183 cm et 244 cm 0300-KITA-2CN, 0300-KITA-4CN, 0300-KITA-6CN et 0300-KITA-8CN Figure 3 61 cm 122 cm 183 cm 244 cm Figure 4 Figure 5 Figure 6 DATE DESCRIPTION APPR DWN BY: DATE: SCALE: CHK'D BY:...
- Page 6 Installation Instructions / Instructions d’installation Shoe Rack Kit / Ensemble pour support à souliers 0335-SRK-CN Tools Needed: STEP 1: Remove the top plastic caps (it’s easier from the front) from the shelf brackets). • Phillips-head screw driver STEP 2: Insert the shelf brackets into the wall standards in the desired location (Figure 1). STEP 3: If installing wood fascia, attach to the surround by fastening the included mounting screws Includes: into pilot holes on the fascia.
- Page 7 Installation Instructions / Instructions d’installation Pants Rack Kit / Ensemble pour support à pantalons 0335-PRK-CN Tools Needed: STEP 1: Remove the top plastic caps (it’s easier from the front) from the shelf brackets. • None STEP 2: Insert the shelf brackets into the wall standards in the desired location (Figure 1). STEP 3: Install the surround assembly by inserting the six shelf tabs into the slots on the shelf brackets Includes: (Figure 2).
- Page 8 Installation Instructions / Instructions d’installation Basket Surround Kit / Cadre pour panier 0335-SRND-CN Tools Needed: STEP 1: Remove the top plastic caps (it’s easier from the front) from the shelf brackets. • Phillips-head screw driver STEP 2: Insert the shelf brackets into the wall standards in the desired location (Figure 1). U.S.
