Body Armor 4x4 5146 Installation Instructions

The Body Armor 4X4 Door Hinge Step for Jeep Wrangler JL/
JT is easy to install using simple hand tools with no drilling
or cutting required. If you are not confident in the installa-
tion please seek the assistance of a professional installer.
BEFORE YOU BEGIN
Open the box and inspect the contents. Check each
item against the component list below. If anything is
missing or damaged, contact Body Armor 4X4 custom-
er service.
COMPONENTS:
2
DOOR HINGE STEP
4 RUBBER GASKET
8 M8-1.25 X 25MM BUTTON HEAD CAP SCREW
STEP 1: PARK AND SECURE THE VEHICLE
Park the Jeep on a flat, level service and set the park-
ing brake. Wear eye protection from this point forward.
Make sure the door is fully shut and latched. Lock the
door to prevent accidentally opening it during the in-
stallation process.
951.808.0750
ORDERS@BODYARMOR4X4.COM
DOOR HINGE STEP • JEEP WRANGLER JL/JT
INSTALLATION INSTRUCTIONS
PART NUMBER: 5146
STEP 2:
Use a T50 Torx wrench or driver bit to remove the two
bolts from the door side of the upper and lower hinge.
Be careful to not bump or move the door from its closed
position during the remainder of the installation pro-
cess.
STEP 3:
Use a 5MM Hex Key or Driver Bit to install the DOOR HINGE
STEP to the door, using the provided M8-1.25 X 25MM BUT-
TON HEAD CAP SCREWS. Make sure to place the provided
RUBBER GASKETS between the Step and the Jeep's door
hinge to protect the Jeep's paint.
REMOVE THE OE DOOR HINGE BOLTS

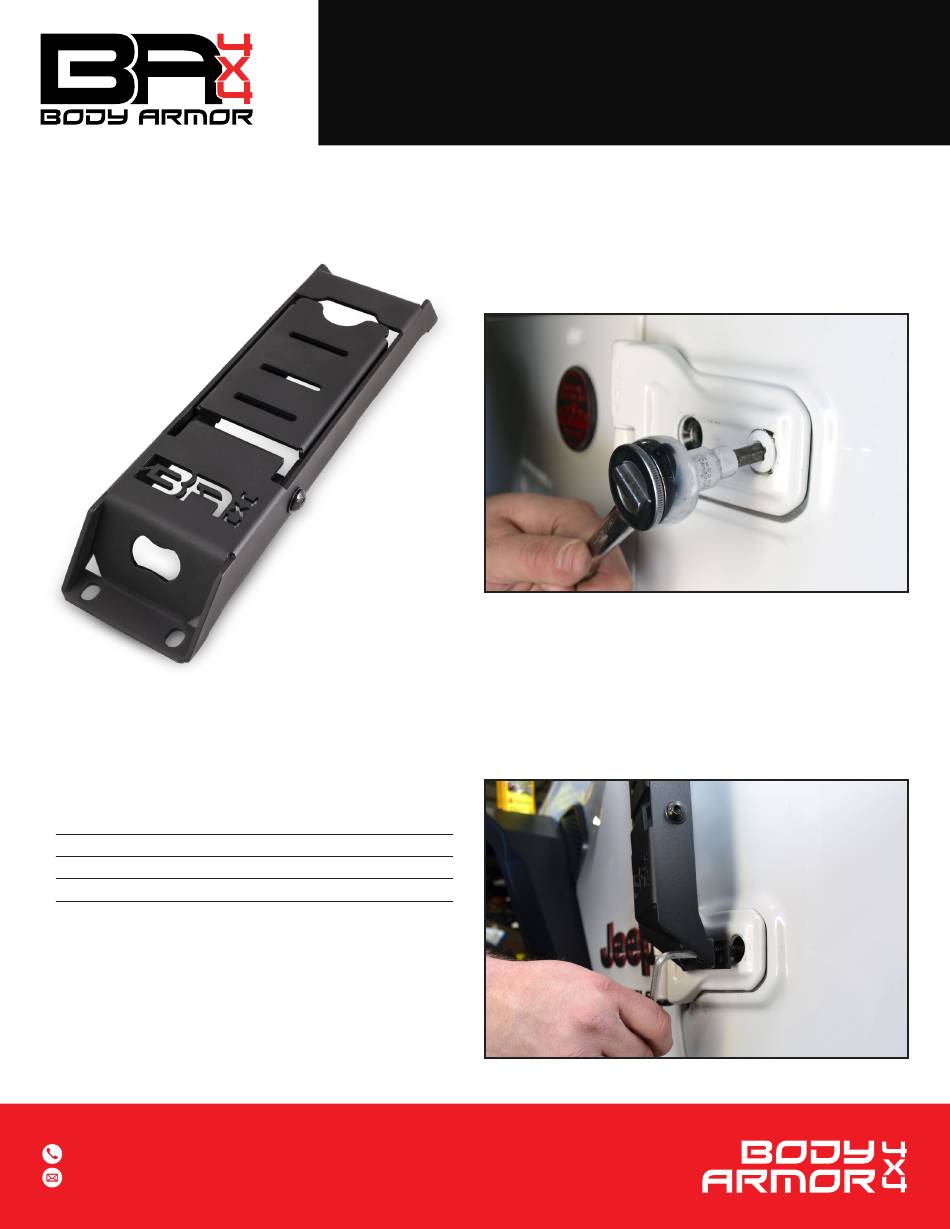

PIC 01: Remove the OE hinge bolts.
INSTALL THE DOOR HINGE STEP
PIC 02: Install the Door Hinge Step.
