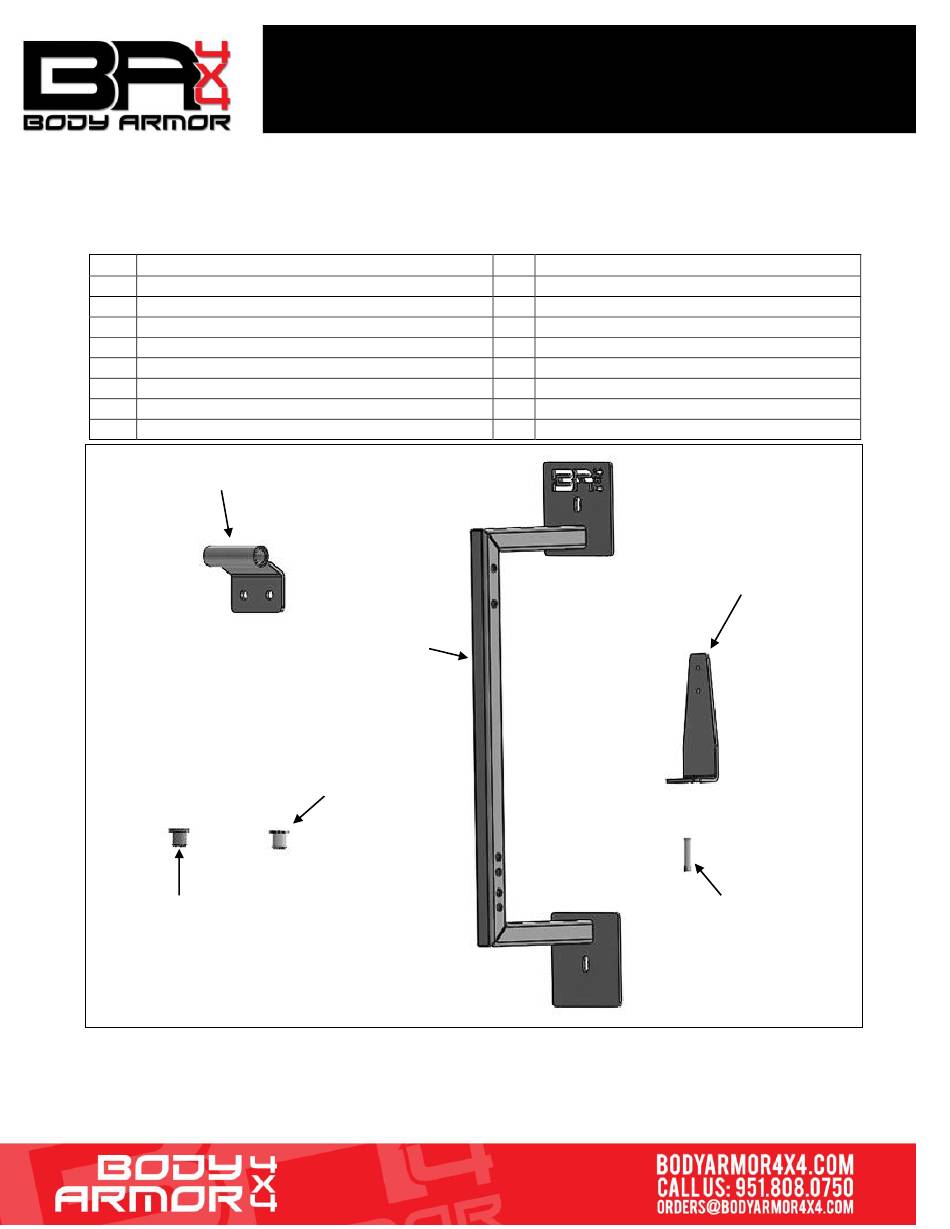

PARTS LIST:
1
Door Storage Bar
4
Wrangler JL/JK 12mm Bushings
4
Wrangler TJ 10mm Bushings
2
Striker Plate Brackets
2
Standoffs (Door Latch Pins)
4
Door Hinge Brackets
4
8mm x 55mm Hex Bolts
10
8mm x 16mm x 1.6mm Flat Washers
4
8mm Nylon Lock Nuts
(4) Door Pin Brackets
(4) 12mm Bushings
(For the JK and JL)
PROCEDURE:
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS
CAREFULLY BEFORE STARTING INSTALLATION. ASSISTANCE IS REQUIRED.
1. Find a wooden stud in the wall in the selected location. Hold up the Door Storage Bar to the wall. Level,
adjust and mark both upper and lower screw locations. Drill a pilot hole in marked locations.
INSTALLATION INSTRUCTIONS
Jeep Door Storage Bar
PART#5145
Door Storage Bar
(4) 10mm Bushings
(For the TJ)
Page 1 of 4
2
5/16in Wood Screws
2
5/16in Lock Washers
2
5/16in Flat Washers
4
4mm x 20mm Button Head Bolts
4
4mm x 12mm x 1.0mm Flat Washers
4
4mm x 20mm Wood Screws
4
4mm Lock Washers
4
4mm x 8.65mm x 0.8mm Flat Washers
1
4mm Hex Wrench
(2) Striker Plate Brackets
(2) Standoffs
Advertisement
Table of Contents
Related Manuals for Body Armor 4x4 5145
Summary of Contents for Body Armor 4x4 5145
- Page 1 INSTALLATION INSTRUCTIONS Jeep Door Storage Bar PART#5145 PARTS LIST: 5/16in Wood Screws Door Storage Bar 5/16in Lock Washers Wrangler JL/JK 12mm Bushings Wrangler TJ 10mm Bushings 5/16in Flat Washers Striker Plate Brackets 4mm x 20mm Button Head Bolts Standoffs (Door Latch Pins) 4mm x 12mm x 1.0mm Flat Washers...
- Page 2 INSTALLATION INSTRUCTIONS 2. Select the Door Storage Bar. Install upper Mounting Plate with (1) 5/16in x 1 1/2in Wood Screw, (Figure 1 & 2). Do not tighten hardware at this time. 3. Repeat Step 2 to install the lower plate, (Figures 3 & 4). Tighten all installed hardware. 4.
- Page 3 INSTALLATION INSTRUCTIONS 5/16in Lag Screw 5/16in Lock Washer 5/16in Flat Washer (Fig 4) Door Storage Bar bottom screw installed (Fig 3) Install screw to bottom of Door Storage Bar to wall (2) 8mm x 55mm Hex Bolts (4) 8mm Flat Washers (2) 8mm Nylon Lock Nuts (Fig 5) Pin Brackets installation on the top of the Storage Bar...
- Page 4 INSTALLATION INSTRUCTIONS TJ models (2) 10mm Bushings JK and JL models (2) 12mm Bushings (Fig 8) TJ models will use (4) 10mm Bushings, JK (Fig 9) Bushings and doors installed and JL models will use (4) 12mm Bushings. (1) 4mm x 20mm Button Head Bolts (2) 4mm x 20mm Wood Screws (2) 4mm x 12mm Flat Washers (2) 4mm Lock Washers...
