Body Armor 4x4 3 Series Installation

Dual row led cube lights(fog beam)

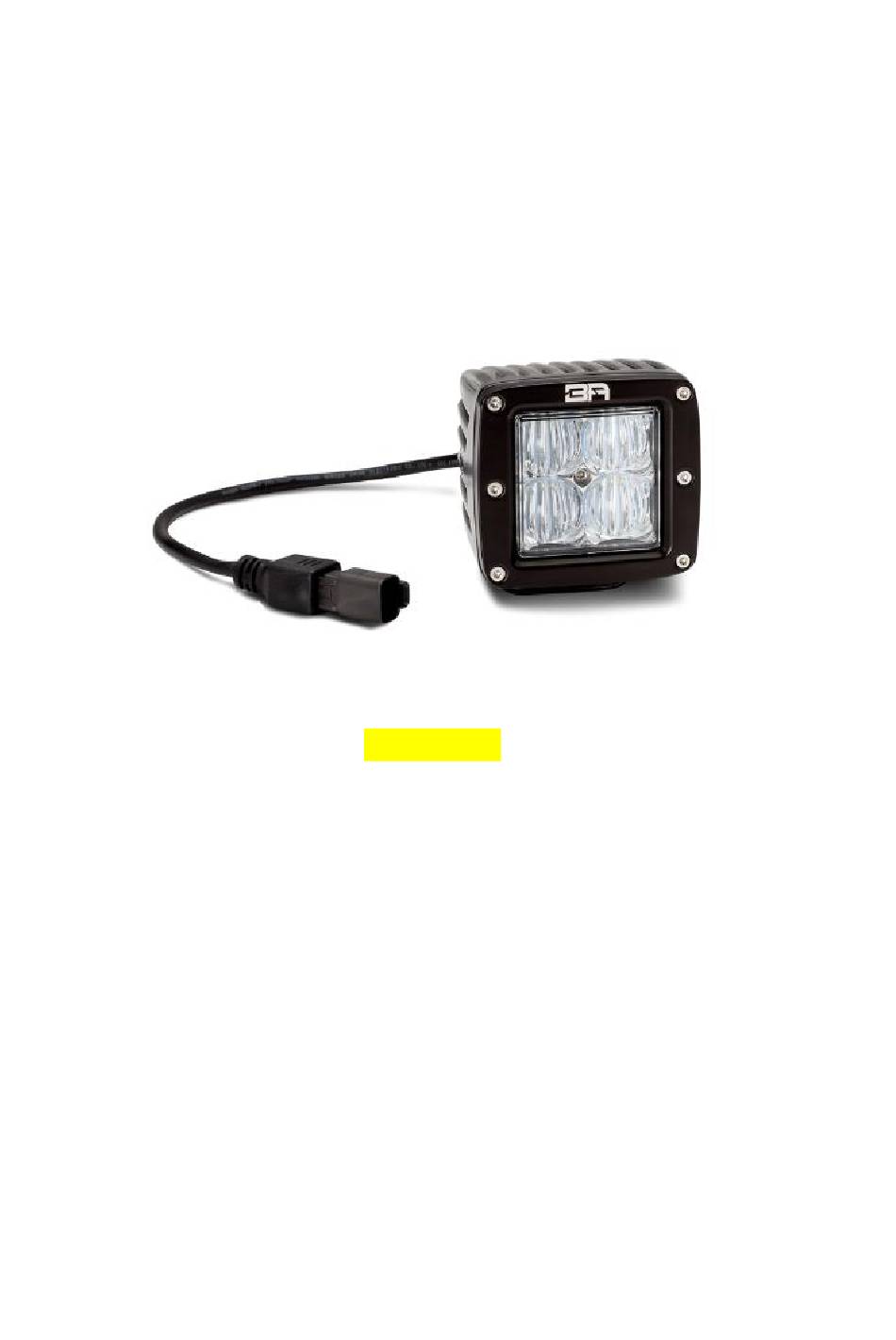

3 Series Dual Row LED Cube

Lights(Fog Beam)

Part Number 30034

Installation

Thanks to its on-board controller and included wiring harness, the Cube Lights do

not need any additional wiring or plugs. Diagram for the wiring harness can be seen

below. Feed the black connector on the harness to the light bar and plug in. Route

the black and red power wires towards the battery. Secure the power relay in place

using either a screw or a zip tie. To ensure longevity of the relay, mount in the

upright position with the metal mounting hole facing up. This will prevent water

from sitting near the electrical components. Locate the ON/OFF switch in a

convenient location.

Table of Contents

Do you have a question about the 3 Series and is the answer not in the manual?

Page 1 3 Series Dual Row LED Cube Lights(Fog Beam) Part Number 30034 Installation Thanks to its on-board controller and included wiring harness, the Cube Lights do not need any additional wiring or plugs. Diagram for the wiring harness can be seen below.
Page 2 Connect the ring terminals to the battery. The RED wire is to be hooked to 12V+ and the BLACK wire is the 12V- (ground). Secure any loose wiring and ensure that the newly installed harness will not come into contact with any hot or moving parts.

30034
