Porter 00540-100 Assembly Instructions

www.porterathletic.com
888-277-7778
No. QTY.
1 1 FRME 00001 101
2 1 FRME 00002 001
3 1 TUBR 00034 001
4 1 ANGL 00011 001
5 1 ANGL 00009 001
6 1 WOOD 00002 006
7 2 HDWE 01148 0E0
8 2 HDWE 03008 0E0
9 4 HDWE 02050 0E0
10 4 HDWE 03005 0E0
11 4 HDWE 01243 0E0
Copyright 2013 by Porter Athletic.
All rights reserved.

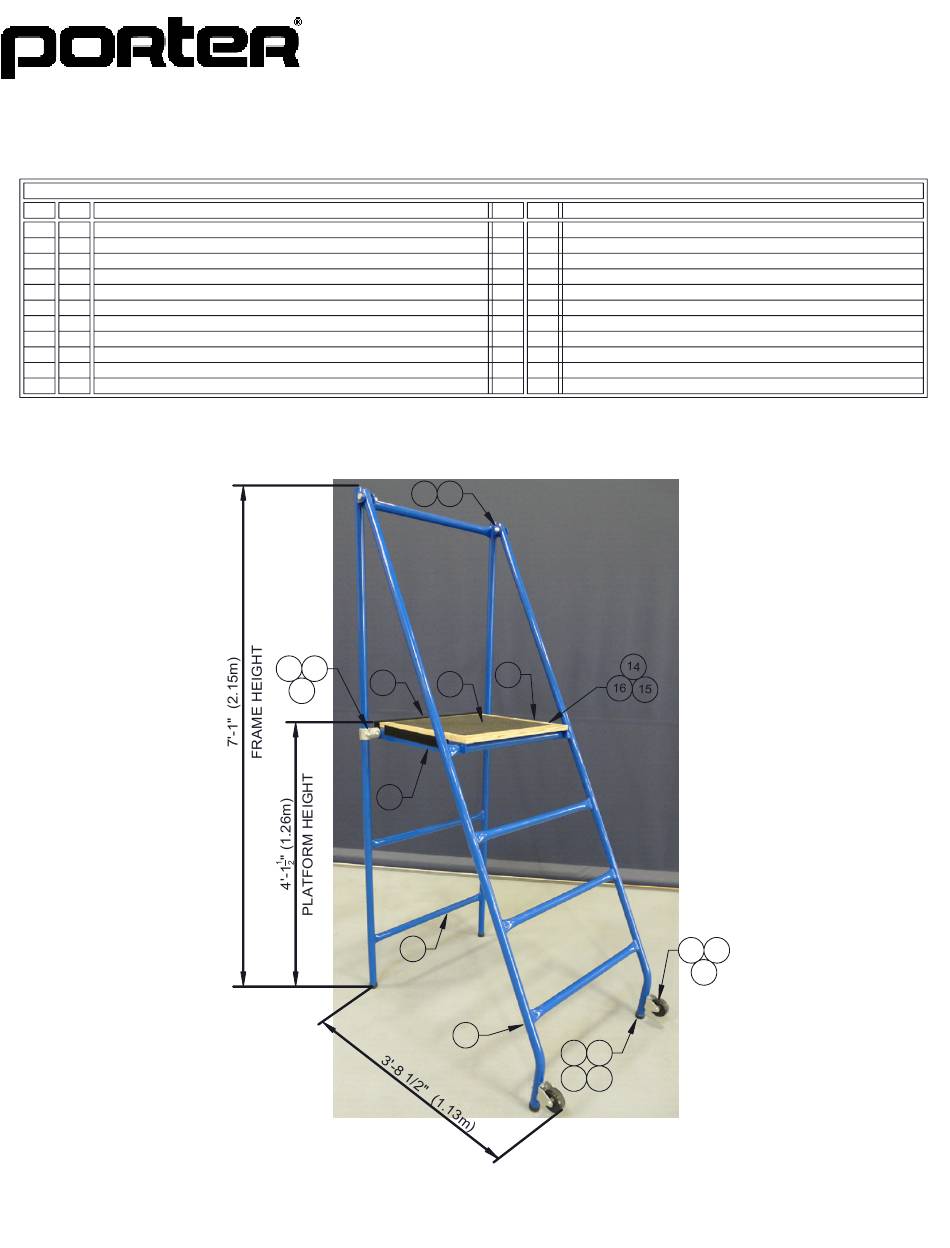

00540-100 FOLDING JUDGE'S STAND ASSEMBLY INST
DESCRIPTION
LADDER WELDMENT
FRONT FRAME WELDMENT
DRILLED TUBE x 2'-3 1/8" LG.
LEFT HAND PLATFORM SUPPORT ANGLE
RIGHT HAND PLATFORM SUPPORT ANGLE
WOOD PLATFORM
1/2" x 2 1/4"" Lg. HEX HD SCREW (Gr 5)
1/2" LOCKING TYPE CAP NUT
3/8" x 2" LG. CARRIAGE BOLT (Gr 5)
3/8" LOCKING TYPE CAP NUT
5/16" x 1" Lg. HEX HD CAP SCREW (Gr 5)
9 10
3
18
4
PARTS LIST: 00540-100
No. QTY.
12 4 HDWE 05003 0E0
13 4 HDWE 06055 0E0
14 6 HDWE 02049 0E0
15 6 HDWE 04004 0E0
16 6 HDWE 03004 0E0
17 4 HDWE 03034 0E0
18 4 TEES 00001 000
19 2 CSTR 00021 000
20 4 FEET 00038 000
21 4 FEET 00034 0E0
7 8
5
6
2
1
20
11 12
DESCRIPTION
1/4" FLATWASHER
1/4" x 1 3/4" Lg. MACHINE SCREW
1/4" x 1 1/2" Lg. CARRIAGE BOLT (Gr 5)
1/4" LOCKWASHER
1/4" HEX NUT
1/4" LOCK NUT
ALUMINUM TEE CASTING
3" CASTER
RUBBER FOOT
THREADED INSERT - 5/16"
DETAIL A
13 17
19
21
INST00019058
9/10/2014
INST00019058
Page 1 of 2
