Bolens QS Series Service Manual page 19

QS, QT
&
1900 SERIES
Page 2-10 REV. 12/78
ELECTRICAL SYSTEM (Continued)

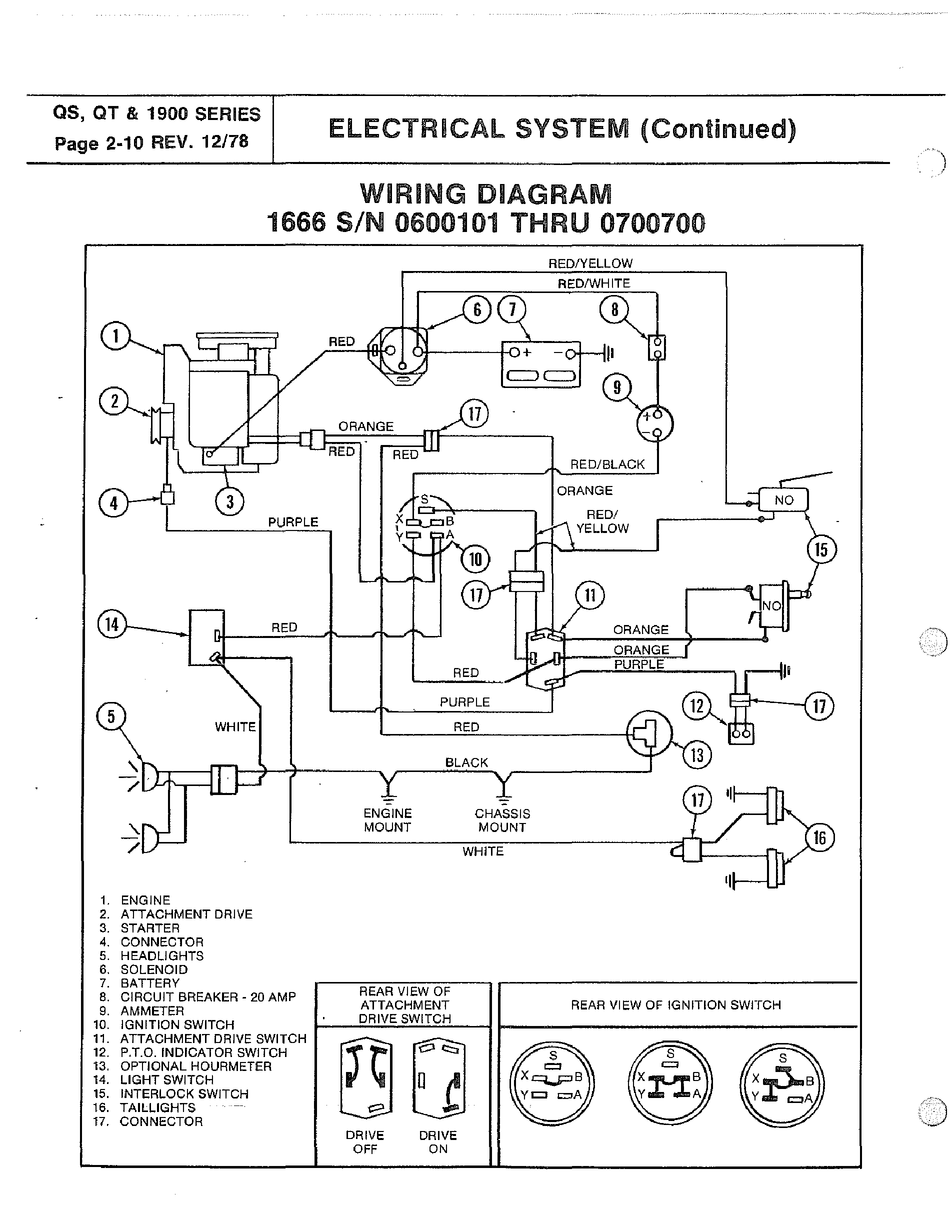

WIRING DIAGRAM
1666 S/N 0600101 THRU 0700700
\.
/
1. ENGINE
2. ATTACHMENT DRIVE
3. STARTER
4. CONNECTOR
5. HEADLIGHTS
6. SOLENOID
7. BATTERY
RED
8. CIRCUIT BREAKER- 20 AMP
9. AMMETER
10. IGNITION SWITCH
11. ATTACHMENT DRIVE SWITCH
12. P.T.O. INDICATOR SWITCH
13. OPTIONAL HOURMETER
14. LIGHT SWITCH
15. INTERLOCK SWITCH
16. TAILLIGHTS
17. CONNECTOR
RED
BLACK
ENGINE
MOUNT
REAR VIEW OF
ATTACHMENT
DRIVE SWITCH
DRIVE DRIVE
OFF ON
CHASSIS
MOUNT
WHITE
RED/BLACK
ORANGE
RED/
YELLOW
11
ORANGE
ORANGE
PURPLE
REAR VIEW OF IGNITION SWITCH
®®
~)
