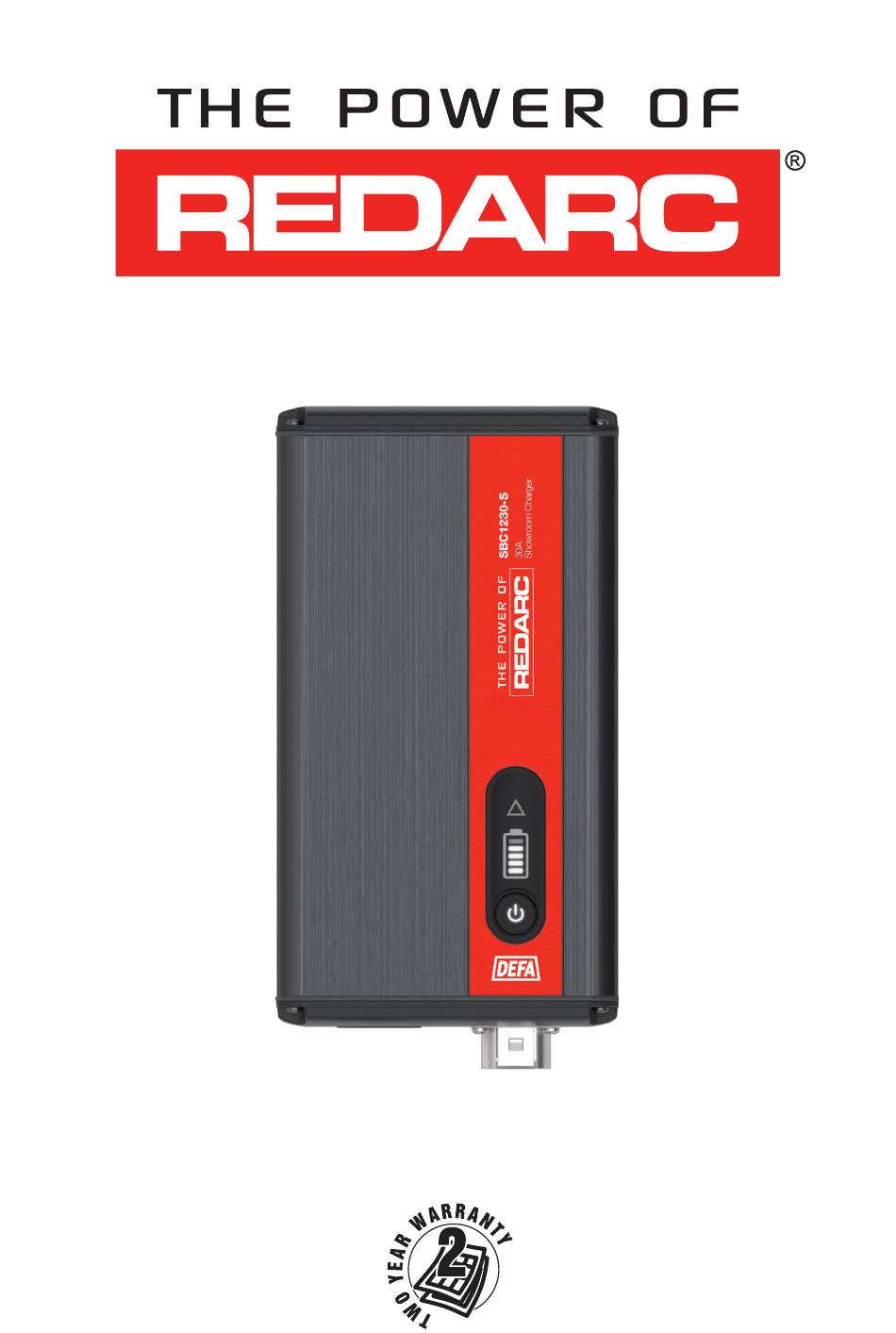

- Page 1 30A Showroom Charger SBC1230-S...
-
Page 2: Warnings & Safety Instructions
THE 30A SHOWROOM CHARGER The REDARC Showroom Charger by DEFA is based on modern switch-mode technology and galvanic isolation. This charger represents the latest technology in long term battery maintenance charging and will maximise the lifespan of your battery. The unit has been designed to charge Lead Acid, AGM, EFB and GEL batteries up to approximately 250Ah and can maintain battery charge continuously. -
Page 3: Table Of Contents
CONTENTS Table of Contents Warnings & Safety Instructions Contents Specifications Pack Contents Dimensions 1. Product Function 1.1 Charging Process 1.2 Pre-Charge Analysis 1.3 Main Charge 1.4 Post-Charge Analysis 1.5 Long-Term Charging 2. Operation 2.1 Setup 2.2 Maintenance Two Year Product Warranty... -
Page 4: Specifications
SPECIFICATIONS Electrical Specifications AC Input Input Voltage Range (nominal) 220-240VAC 50/60Hz Maximum Mains Current 2.9A eff. Maximum Efficiency Power Rating 560W Power Consumption (standby) 1.7W DC Output Nominal Output Voltage 12V DC / 6 cells Output Voltage Range 2V – 14.4V DC Maximum Output Current 32A at 14.4V DC Battery Return Current... -
Page 5: Dimensions
DIMENSIONS 230V Power 12V Battery Cable Cable Connection Connection 227mm 5 Metre 230V Power Cable 2.5 Metre 12V Battery Cable 125mm... -
Page 6: Product Function
PRODUCT FUNCTION Charging Process The Showroom Charger uses a 7 step charging process to optimise battery performance and longevity. Figure 1 illustrates the charge process in a graph with voltage (V ) and current (A) over time (t ). The charging process includes Step 1: Pre-charge analysis, Step 2: Main charge, Step 3: Maximum charge, Step 4: Battery error detection, Step 5: Float charge, Step 6: Sleep, Step 7: Wake up. -
Page 7: Pre-Charge Analysis
PRODUCT FUNCTION Pre-Charge Analysis The Showroom Charger initially checks if the battery is connected correctly. The battery’s charge level (V) and total capacity (Ah) are then measured to determine the correct settings for charging. Battery status is indicated by the number of segments illuminated on the LED Battery Level Indicator. -
Page 8: Operation
OPERATION Setup This charger is intended for use with Lead Acid, AGM, EFB and GEL batteries. The battery manufacturer’s recommendations shall always be taken into consideration. Before use, read this instruction manual carefully. If there are any uncertainties, please contact REDARC. First, connect the Showroom Charger RED clamp to battery positive (B+) and BLACK clamp to battery negative (B-). - Page 9 OPERATION Figure 3 Software If the charger requires a software update, it can be done through the micro-USB port at the end of the charger seen in Figure 4. Necessary information will be given along with the software. Figure 4...
- Page 10 NOTES...
-
Page 11: Two Year Product Warranty
