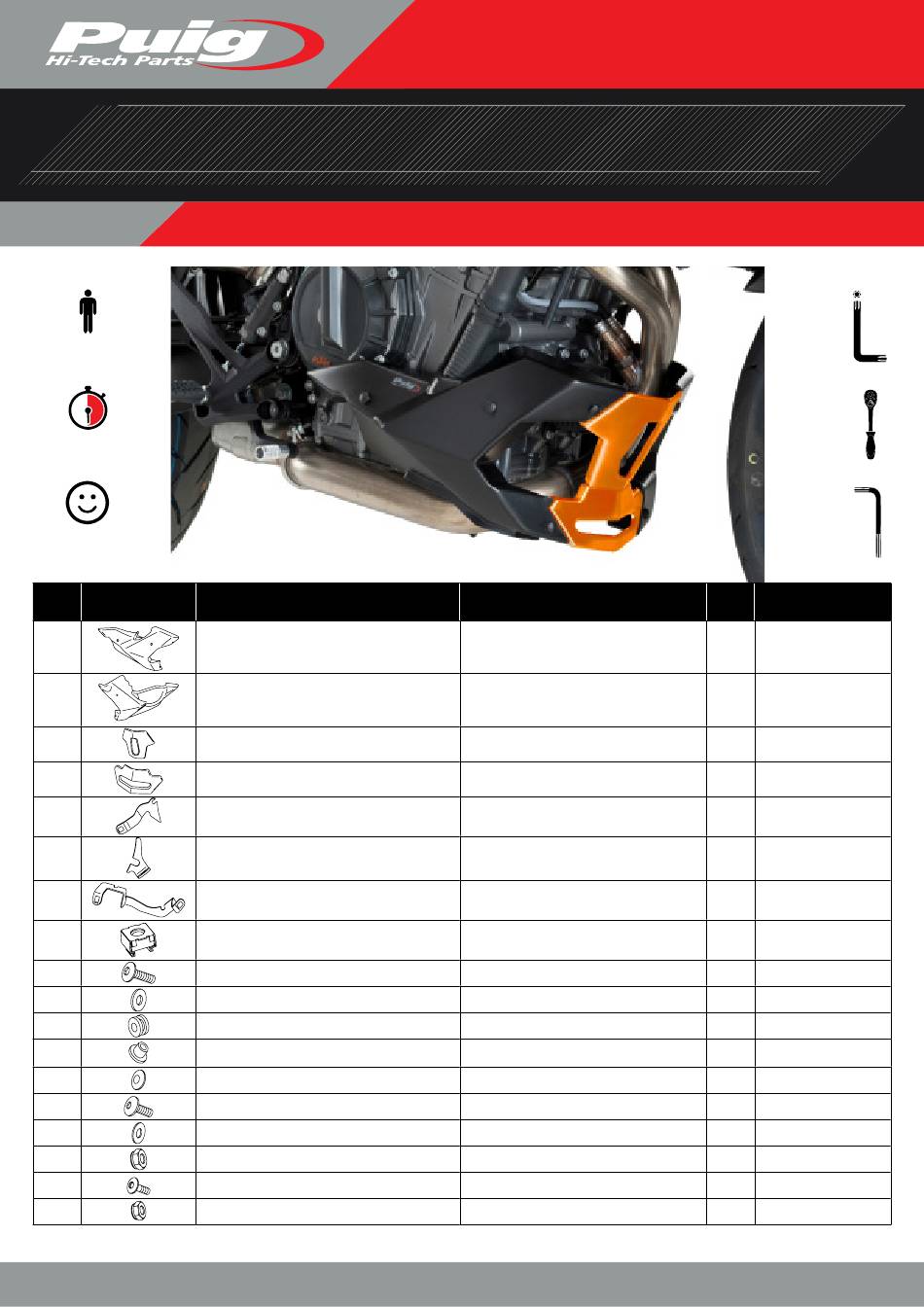

REF 9669
1 Person
30 min
EASY
ID.
PIEZA/PART
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
KTM 790 DUKE

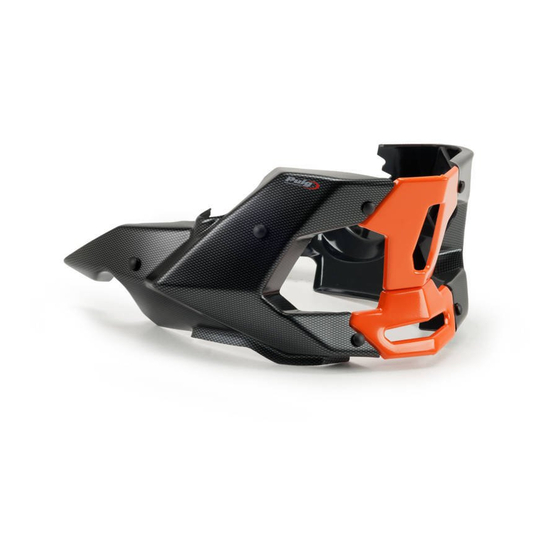

Q U I L L A A D A P T A B L E / E N G I N E S P O I L E R / B U G S P O I L E R
DESCRIPCIÓN
Quilla derecha
Quilla izquierda
Quilla central superior
Quilla central inferior
Soporte metálico delantero izquierdo (L1)
Soporte metálico trasero izquierdo (L2)
Soporte metálico delantero derecho (R1)
Tuerca enjaulada de aluminio M5 (Se
suministra montada)
Tornillo Allen M5x16 Ø11 ISO 7380
arandela metalica M5 DIN125
Silentblock Ø12xØ6x9
casquillo con valona Ø12xØ6,8x7,3
Tapon M5 ISO 7380
Tornillo Allen M5x11 Ø11 ISO 7380
arandela de Nylon M5x1
tuerca M5 autoblocante
Tornillo allen M4x10 ISO 7380
Tuerca M4 autoblocante
www.puig.tv
www.puigusa.com
DESCRIPTION
Right engine spoiler
Left engine spoiler
Upper central engine spoiler
Lower central engine spoiler
Front left support (L1)
Rear left support (L2)
Front right support (R1)
Luck nut M5 (Supplied mounted)
M5x16 Ø11 ISO 7380 Allen Screw
M5 DIN125 metallic washer
Ø12xØ6x9 Silentblock
Ø12xØ6,8x7,3 bush with flange
M5 ISO7380 screw cap
M5x11 Ø11 ISO 7380 Allen Screw
M5x1 Nylon washer
M5 special nut
M4x10 ISO 7380 Allen screw
M4 special nut
Pg. 1/5
info@puig.tv
info@puigusa.com
TORX
T30
RATCHET
Nº 7
Nº 8
ALLEN
Nº 2,5
Nº 3
QTY.
REF.:
1
9669J/CM3
1
9669J/CM3
1
SOPEMB2P-4-9669
1
SOPEMB2P-4-9669
1
SOPOR-3P-2-9669
1
SOPOR-3P-2-9669
1
SOPOR-3P-2-9669
4
TUERCAJFM5-0373
4
TORNI-I7380-493
4
ARAND--------93
4
AROPASACABLES-1
4
CASQUI-1A---750
8
TAPON--------85
4
TORNI-AI----520
4
ARNV00000000245
4
TUERCA-D982-746
2
TORNI-I7380-645
2
TUERCAE985-0290
