Bresser Temeo io Instruction Manual

Hide thumbs Also See for Temeo io:
Table of Contents

Advertisement

Quick Links

Download this manual
Temeo io
Art. No. 7000004
INSTRUCTION MANUAL
GB

Advertisement

Table of Contents
loading

Related Manuals for Bresser Temeo io

Summary of Contents for Bresser Temeo io

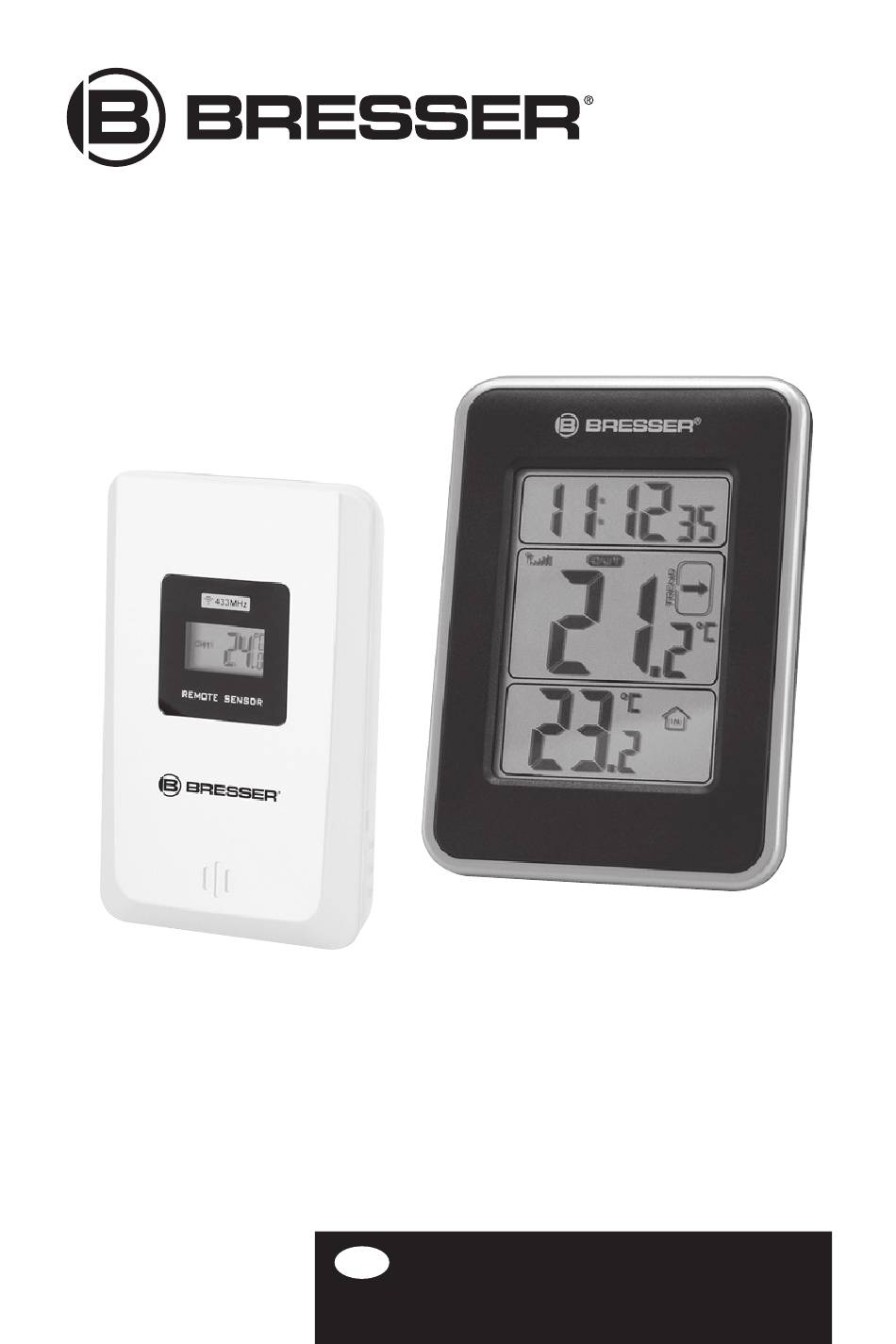

  • Page 1 Temeo io Art. No. 7000004 INSTRUCTION MANUAL...
  • Page 2 Fig. 1...
  • Page 3 Fig. 2 Fig. 3...
  • Page 4 About this Instruction Manual These operating instructions are to be considered a component of the device. Please read the safety instructions and the operating instructions carefully before use. Keep these instructions for renewed use at a later date. When the device is sold or given to someone else, the instruction manual must be provided to the new owner/user of the product.

  • Page 5: Risk Of Fire/Explosion

    the affected region immediately with a plenty of water and seek medical attention. RISK OF FIRE/EXPLOSION! Use only the recommended batteries. Do not short- circuit the device or batteries, or throw them into a fire. Excessive heat or improper handling could trigger a short-circuit, a fire or an explosion.

  • Page 6: Scope Of Delivery

    SCOPE OF DELIVERY (Fig. 1) Main unit (A), remote sensor (B), instruction manual Required batteries (not included with purchase): 4 pieces of micro batteries (1.5V, type AAA) PARTS OVERVIEW Main Unit (Fig. 2) (1) Display – Temperature trend, indoor- and outdoor temperature, as well as current time.
  • Page 7 BEFORE YOU START IMPORTANT! 1. Insert batteries for remote units before doing so for the main unit. 2. Place the main unit as close as possible to the remote unit. 3. Position the remote unit and main unit within the effective transmission range.

  • Page 8: Power Supply

    POWER SUPPLY Remote sensor 1. Open the battery compartment door. 2. Install 2 batteries (AAA size 1.5V) strictly according to the polarities shown. 3. Reinsert the battery compartment door. Main unit 1. Open the battery compartment door. 2. Install 2 batteries (AAA size 1.5V) strictly according to the polarities shown.
  • Page 9 are installed in the main unit it will start searching for a signal from the remote sensor for about 3 minutes. Upon successful reception of the signal, the outdoor temperature will be displayed on the main unit. The main unit will automatically update its readings at about 45 second intervals.
  • Page 10 of different measurement periods and will be displayed as follows: Rising Steady Falling Main unit signal receiving check The transmission range is about 30 meters from the remote station to the main unit (in open area). The main unit should receive the temperature/humidity information from the transmitter within 3 minutes after set-up.
  • Page 11 3. Please do not using other electrical products, such as headphones or speakers, operating on the same signal frequency (433.92 MHz). 4. Electrical devices operating on the same signal frequency may also cause interference. This can include devices used in the neighborhood as well. Manual time setting 1.

  • Page 12: Troubleshooting

    TROUBLESHOOTING Signal disconnection If without obvious reasons the display of the outdoor temperature goes blank, please check the following: 1. The remote unit is still in place. 2. The batteries of both the remote unit and main unit are not empty. Replace batteries with new ones if necessary.

  • Page 13: Specifications

    SPECIFICATIONS Measurement Indoor temperature range: 0~50° C Outdoor Temperature Range: -20~60° C Resolution for temperature: 0.1° C Transmission Transmission range between transmitter and main unit: 30meters (in open area) Radio frequency: 433.92 MHz Power supply Main unit: 2x AAA 1.5V battery Remote sensor: 2x AAA 1.5V battery CLEANING AND MAINTENANCE...

  • Page 14: Ec Declaration Of Conformity

    "Cd" = cadmium, "Hg" = mercury, "Pb" = lead. EC DECLARATION OF CONFORMITY Bresser GmbH has issued a "Declaration of Conformity" in accordance with applicable guidelines and corresponding standards. This can be viewed any time upon request.

  • Page 15: Warranty And Service

    Then visit our website via the link below (QR code) for available versions. Alternatively you can also send an email to manuals@bresser.de or leave a message on +49 (0) 28 72 – 80 74-220*. Please always state your name, precise address, a valid phone number and email address, as well as the article number and name.
  • Page 16 Bresser GmbH Gutenbergstr. 2 · DE-46414 Rhede Germany www.bresser.de · service@bresser.de...
