Glass sensor 1 – 4gang
Order no.: 168xx, 169xx
Operation and assembly instructions
1 Safety instructions
Installation and assembly of electrical devices may only be carried out by an electrician.
The glass sensor is not suitable for direct switching of mains voltage or low voltage.
Failure to observe these instructions may lead to damage to the device, fire, or other
hazards.
These instructions are an integral component of the product, and must be retained by the
end user.
2 Structure of the device
(1)
(2)
(3)

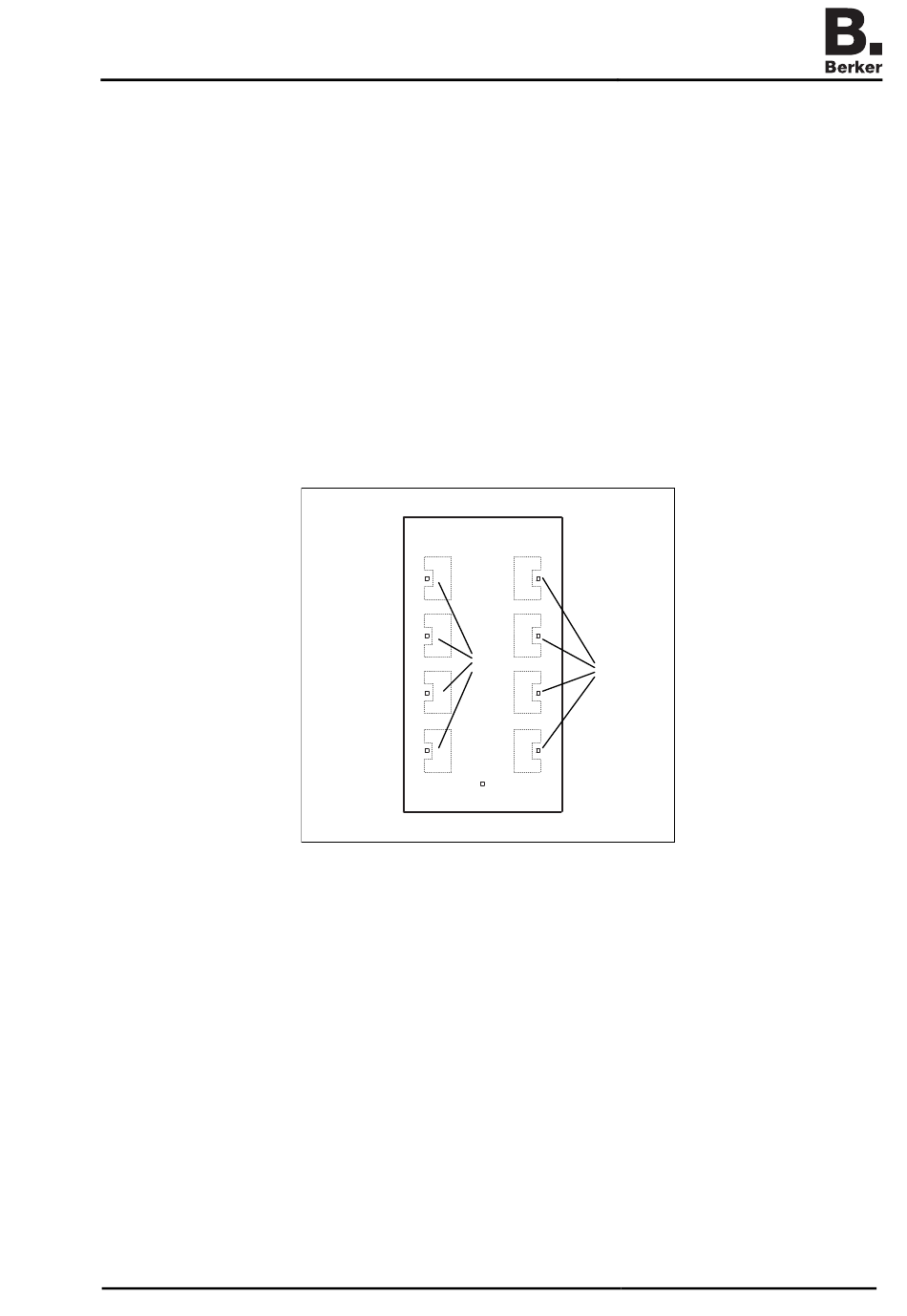

Figure 1: Front view
(1) Sensor surfaces
(2) White LEDs
(3) Blue LED
Page 1/9
97-09440-000
03/2007

Advertisement

loading
Need help?

Need help?

Do you have a question about the 168 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Berker 168 Series

  • Page 1 Glass sensor Glass sensor 1 – 4gang Order no.: 168xx, 169xx Operation and assembly instructions 1 Safety instructions Installation and assembly of electrical devices may only be carried out by an electrician. The glass sensor is not suitable for direct switching of mains voltage or low voltage. Failure to observe these instructions may lead to damage to the device, fire, or other hazards.
  • Page 2: Operation

    Glass sensor Figure 2: Rear view (4) Connection for ribbon cable (5) Jumper for selecting function of the blue LED (6) Jumper for selecting function of the white LEDs (7) Socket with setscrew and retaining pin (8) Attachment locations for adhesive points 3 Function The glass sensor is intended for connection to systems for controlling building installations.
  • Page 3 (11) Figure 3 Berker recommends mounting the glass sensor on a special wall box (Figure 3, 10). This wall box 2gang for glass sensors provides enough room to house the adapter and the necessary interfaces. The glass sensor is fastened to the wall box using a locking device. With deep-set wall boxes, surface adjustment of up to 20 mm is possible by adjusting the retaining pins (Figure 3, 12) on the setscrews (Figure 3, 11).
  • Page 4 Glass sensor Mounting on 1gang flush-mounted boxes is possible. This involves more installation work, because less installation space is available. In addition, the glass sensor must be fastened to the wall using the supplied adapter ring. The adapter ring (Figure 3, 9) must be used: –...
  • Page 5 Glass sensor Before mounting the glass sensor, peel the protective foil off of the adhesive points. Before completing mounting, align the glass sensor and press on the areas over the adhesive points to fix it in place. Connecting the glass sensor and mounting it on a wall box The necessary adapter must be connected to a supply voltage and an interface.
  • Page 6 Glass sensor Insert the setscrews (Figure 6, 11) of the glass sensor into the clamp springs (Figure 6, 13) and press in until the retaining pins (Figure 6, 12) engage noticeably. Connecting the glass sensor and mounting it on a wall box with an adapter ring The necessary adapter must be connected to a supply voltage and an interface.
  • Page 7 Glass sensor If the adapter ring is to be screwed to the wall box, pry the clamp spring supports (Figure 7, 15) out of the wall box. This exposes the screw holes in the wall box. Align the adapter ring (Figure 7, 14) and screw it to the wall box. The marking TOP on the inside of the adapter ring must be at the top.
  • Page 8: Troubleshooting

    Glass sensor Push the glass sensor onto the adapter ring until it engages. The engagement on the adapter ring is only a preliminary fastening. Additional fastening using the anti-dismantling protection is necessary for operation. Tighten the screw (Figure 7, 16) at the bottom of the adapter ring. Use a Pozidrive-type Phillips screwdriver, size 0.
  • Page 9: Warranty
