IR motion detector comfort
IR motion detector comfort 1.1 m
Order no. 8534 12 xx
IR motion detector comfort 2.2 m
Order no. 8534 22 xx
Operating instructions
1.
Safety instructions
Electrical equipment may only be installed and assembled by a qualified electrician in ac-
cordance with the relevant installation standards, regulations, directives and safety and
accident prevention directives of the country.
Failure to comply with these installation instructions may result in damage to the device,
fire or other hazards.
Due to its detection behaviour the device is not suitable for use in burglary detection or
alarm systems.
These instructions are an integral component of the product and must be retained by the
end user.
2.
Design and layout of the device
(4)
(1) Insert (see "Accessories", not in scope of delivery)
(2) Frame (not within scope of delivery)
(3) Application module
(4) Motion detector design cover
(5) Screw for dismantling protection (not for design lines R.1/R.3)
(6) Interface between insert/application module
6W-5826
(2)
(3)
(5)

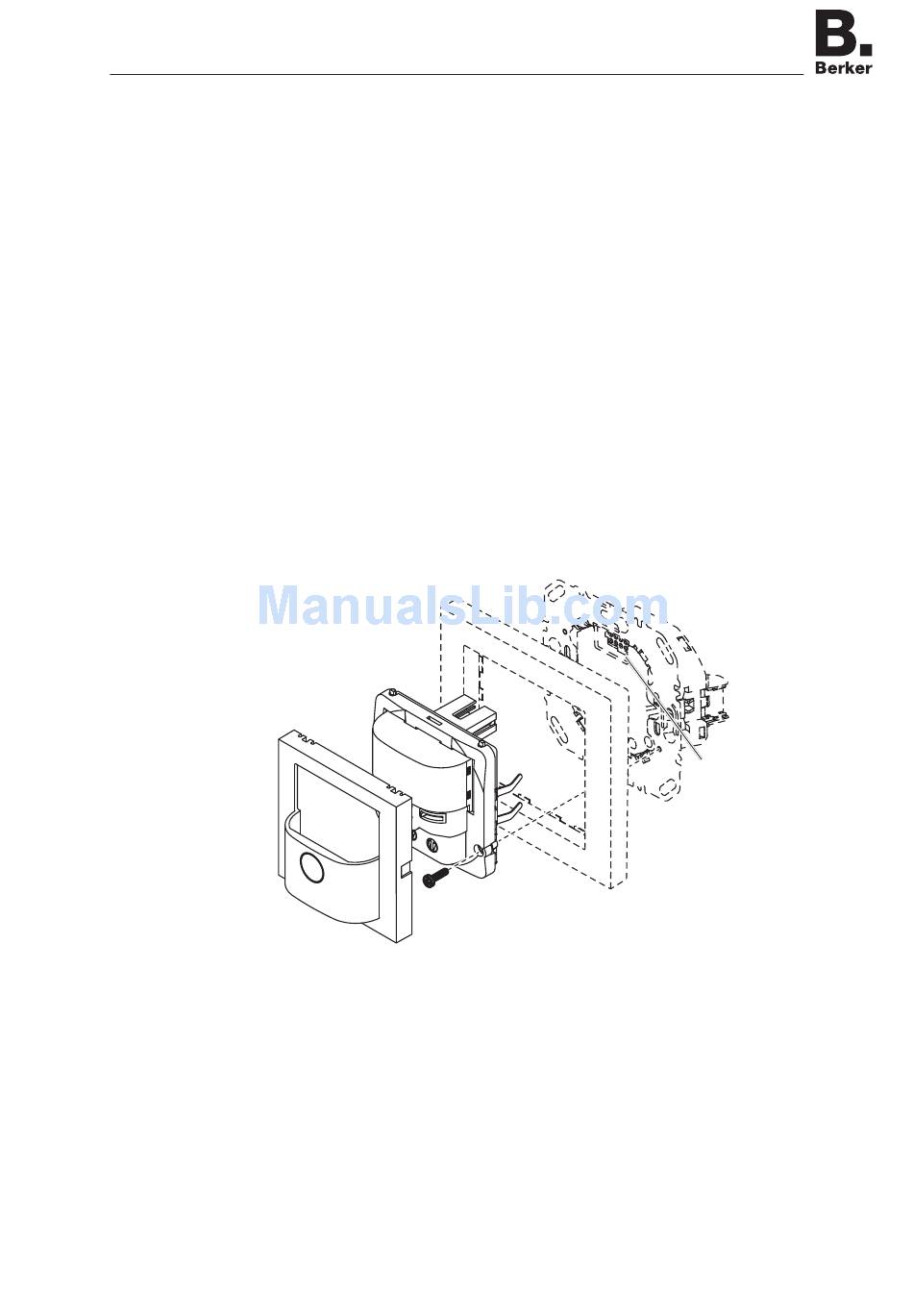

Figure 1: Design and layout of the device
Page 1/13
(1)
(6)
09-2012
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Berker 8534 12 series
Summary of Contents for Berker 8534 12 series
-
Page 1: Operating Instructions
IR motion detector comfort IR motion detector comfort 1.1 m Order no. 8534 12 xx IR motion detector comfort 2.2 m Order no. 8534 22 xx Operating instructions Safety instructions Electrical equipment may only be installed and assembled by a qualified electrician in ac- cordance with the relevant installation standards, regulations, directives and safety and accident prevention directives of the country. - Page 2 IR motion detector comfort Function Correct use – Automatic switching of lighting depending on heat motion and ambient brightness – Application module for switch insert, flush-mounted dimmer or motion detector extension unit – Only suitable for use in indoor areas with no drip and no spray water. Product characteristics –...
-
Page 3: Operation
IR motion detector comfort The function is not impaired. – Mains breakdown longer than 0.2 s: There is no function during the mains breakdown. The current configuration is saved in non-volatile memory. – Return of mains supply: The application module executes an initialisation for approx. 15 s, during which the lighting will be switched on. - Page 4 IR motion detector comfort LED display Operating On switch insert or On extension unit insert mode flush-mounted dimmer Auto Motion-dependent and Motion-independent switching brightness-dependent switch pulse for the main unit on/switch off of the load green Permanent Load is permanently switched- Cyclical transmission of the on/switched-off.
- Page 5 IR motion detector comfort Activating/interrupting party function The party function switches the lighting on for 2 hours. During this time no extension unit com- mands are executed. In the case of motion detectors on extension units, activating the party function causes cy- clical transmission of the switch-on pulse every 10 s.
-
Page 6: Selecting Installation Location
IR motion detector comfort Keep the button pressed for more than 25 seconds, until the status LED is slowly flashing orange. The connected load blinks once. The device is in selection mode. If there is no further operation within the next 10 seconds, the insert swiches to switching/ dimming operation. - Page 7 IR motion detector comfort ç ç 1,10 m 180° Fig 4: Installation location of the motion detectors Assembly of the device (Figure 1) Information on electrical connection are to be taken from the operating instruction of for the insert.
- Page 8 IR motion detector comfort 5.2 Start-up Overview of operation and adjustment elements (13) (12) (11) (10) (10) (14) (13) (14) Fig. 5: Operating and adjustment elements of the bottom part of the application module (9) Sensitivity potentiometer (10) Button (11) Detection angle adjuster (12) Status LED (13) Delay time potentiometer (14) Response brightness potentiometer...
- Page 9 IR motion detector comfort 90° ... 45° 45° ... 90° 90° ... 45° 45° ... 90° 90° ... 45° 45° ... 90° 90° ... 45° 45° ... 90° 90° ... 45° 45° ... 90° 90° ... 45° 45° ... 90° ~ 180°...
- Page 10 IR motion detector comfort The delay time can be set to pulse encoder mode or to the defined values 10 s, 1 min., 3 min. (factory setting), 10 min. and 30 min. The setting is setting is infinitely variable between the in- termediate areas.
-
Page 11: Choosing Settings
IR motion detector comfort Choosing settings The response brightness potentiometer of the motion detector is in the T position. (15) (21) (16) (20) (17) (19) (18) Figure 10: Key assignment of the hand-held transmitter Short press on button of the hand-held transmitter. The selected action/setting is executed (see table) Area Function of the group... -
Page 12: Technical Data
IR motion detector comfort Locking/unlocking the hand-held transmitter If the hand-held transmitter is locked, no IR signals are transmitted when the buttons are pressed. The exceptions to this are the operation buttons (Figure 10, 15) and the locking but- tons (18). These are always active. Press the buttons simultaneously for 1 s. -
Page 13: Warranty
IR motion detector comfort 6.3 Warranty We reserve the right to make technical and formal changes to the product in the interest of tech- nical progress. Our products are under guarantee within the scope of the statutory provisions. If you have a warranty claim, please contact the point of sale or ship the device postage free with a description of the fault to the appropriate regional representative.
