Radio motion detector comfort 1.1 m/2.2 m quicklink
Radio motion detector comfort 1.1 m/2.2 m quicklink
Order number 8534 51 ..
Operating instructions
1.
Safety instructions
Electrical equipment may only be installed and assembled by a qualified electrician in ac-
cordance with the relevant installation standards, regulations, directives and safety and
accident prevention directives of the country.
Failure to comply with these instructions may result in damage to the device, fire or other
hazards.
The radio transmission is not suitable for safety or alarm applications.
Due to its detection behaviour the device is not suitable for use in burglary detection or
alarm systems.
These instructions are an integral component of the product and must be retained by the
end user.
2.
Design and layout of the device
(4)
(1) Insert (see "Accessories", not in scope of delivery)
(2) Frame (not within scope of delivery)
(3) Application module
(4) Motion detector design cover
(5) Screw for dismantling protection (not for design lines R.1/R.3)
(6) Interface between insert/application module
6W-5827
(2)
(3)
(5)

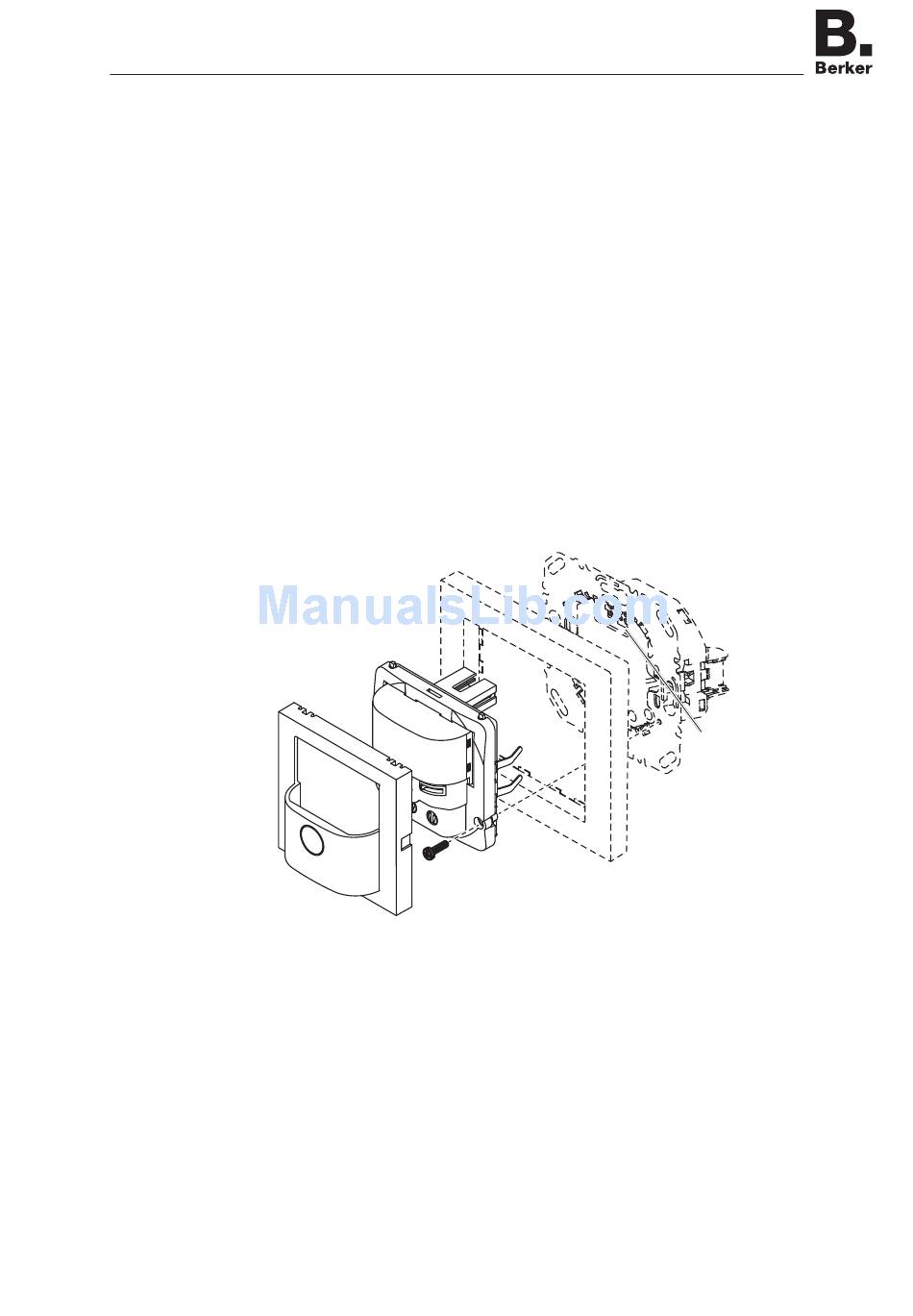

Figure 1: Design and layout of the device
Page 1/18
(1)
(6)
09-2012
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Berker 8534 51 series
Summary of Contents for Berker 8534 51 series
-
Page 1: Operating Instructions
Radio motion detector comfort 1.1 m/2.2 m quicklink Radio motion detector comfort 1.1 m/2.2 m quicklink Order number 8534 51 .. Operating instructions Safety instructions Electrical equipment may only be installed and assembled by a qualified electrician in ac- cordance with the relevant installation standards, regulations, directives and safety and accident prevention directives of the country. - Page 2 Radio motion detector comfort 1.1 m/2.2 m quicklink Function System information This device is a product of the quicklink system, in which installation devices communicate via radio signals. Quicklink stands for a configuration mode in which the function-related connection between transmitters and receivers is set on the device through buttons and displays without further tools.
-
Page 3: Operation
Radio motion detector comfort 1.1 m/2.2 m quicklink Performance after mains breakdown/return of mains supply – Mains breakdown shorter than 0.2 s: The function is not impaired. – Mains breakdown longer than 0.2 s: There is no function during the mains breakdown. The current configuration is saved in non-volatile memory. - Page 4 Radio motion detector comfort 1.1 m/2.2 m quicklink Selecting the operating mode Briefly press the button repeatedly until the desired operating mode is selected. The status LED indicates the selected operating mode (see Table 1). Switching the operating mode finishes the party function or presence simulation, if these functions were previously active.
- Page 5 Radio motion detector comfort 1.1 m/2.2 m quicklink Dimming status Operation button Performance of the insert Motion detector applied on switch insert Short press Load is switched on for the set delay time Short press Extension of switch-on time by the set delay time Motion detector applied on flush-mounted dimmer Short press Load is switched on to the switch-on brightness-...
- Page 6 Radio motion detector comfort 1.1 m/2.2 m quicklink Activating/deactivating presence simulation During operation, the motion detector counts the motion detections in one full hour and saves the result. With active presence simulation at the beginning of the hour with the most detections saved, the light will be switched on for the duration of the delay time, even no motion is detec- ted.
- Page 7 Radio motion detector comfort 1.1 m/2.2 m quicklink Information for electricians 5.1 Installation and electrical connection Selecting installation location A minimum distance between the transmitter and corresponding receiver of about 1 m must be maintained. A minimum distance to electronic devices which emit high frequency signals such as computers, electronic transformers or microwave devices of approx.
- Page 8 Radio motion detector comfort 1.1 m/2.2 m quicklink Status LED display Meaning LED blinks green (approx. 5 s until motion detection is Compatible active) LED blinks red for 5 s Not compatible. Compatible, but not configured to each other. For a new configuration, the LED blinks orange for 5 s application module must be reset to factory settings.
- Page 9 Radio motion detector comfort 1.1 m/2.2 m quicklink Setting the detection area 1.75 m 180° 1.1 m 10 m Figure 6: detection area of the motion detector for mounting height 1.1 m ~ 3° 2.2 m 1.75 m 1.1 m 10 m Figure 7: detection area of the motion detector for mounting height 2.2 m The detection angle can be restricted for the right side and for the left side via each adjuster...
-
Page 10: Setting The Sensitivity
Radio motion detector comfort 1.1 m/2.2 m quicklink Setting the response brightness The response brightness is the brightness value saved in the motion detector; when this value is undershot the motion detector switches the connected load if movements are detected. The response brightness can be set between approx. - Page 11 Radio motion detector comfort 1.1 m/2.2 m quicklink Switches the load with higher priority to the appropriate Forced mode ON state. Execution of other commands is only possible after Forced mode OFF resetting the forced command. Presence-- Activates/deactivates execution of presence simulation simulation (See activating/deactivating presence simulation).
- Page 12 Radio motion detector comfort 1.1 m/2.2 m quicklink As an example the confi guration of a wall-transmitter and a radio motion detector as receiver is described down below. Handling step Result Start confi guration „ Short press on cfg button on the wall transmitter. The cfg LEDs on the wall-transmitter and the radio motion detector light up in red colour.
- Page 13 Radio motion detector comfort 1.1 m/2.2 m quicklink Finish confi guration „ Short press on cfg button on the wall transmitter again. The cfg LEDs on the wall-transmitter, on the motion detector and on all receivers within radio range go out. The function is confi gured.
- Page 14 Radio motion detector comfort 1.1 m/2.2 m quicklink Confirming function on receiver „ To save the allocation of command and function, hold the The cfg LED blinks. After a successful saving, the fct fct input on the receiver pressed longer than 2 seconds. LED signals the saved function.
- Page 15 Radio motion detector comfort 1.1 m/2.2 m quicklink Executing the master-slave confi guration If the radio motion detector is attached to a power supply for radio application modules, then it can only be confi gured as a transmitting extension unit (slave) to a radio motion sensor on switch insert or fl ush-mounted dimmer.
-
Page 16: Deleting A Configuration
Radio motion detector comfort 1.1 m/2.2 m quicklink Deleting a configuration To delete a configured receiver or the local operation, execute the configuration again. Start configuration (see Configuration of radio motion detector as a receiver). If necessary, Select transmitter button. The step select transmitter button step does not apply for radio motion detectors as trans-... -
Page 17: Technical Data
Radio motion detector comfort 1.1 m/2.2 m quicklink To accept the selected switch-on time, keep pressed the fct button for longer than 2 se- conds. Finish configuration: Short press on cfg button on the transmitter. Resetting the radio motion detector to factory settings The device is not in configuration mode. -
Page 18: Warranty
Our products are under guarantee within the scope of the statutory provisions. If you have a warranty claim, please contact the point of sale or ship the device postage-free with a description of the fault to our Service Center. Berker GmbH & Co. KG Service Centre Hubertusstraße 17...
